LIGHTER...STRONGER...SAFER...SMARTER

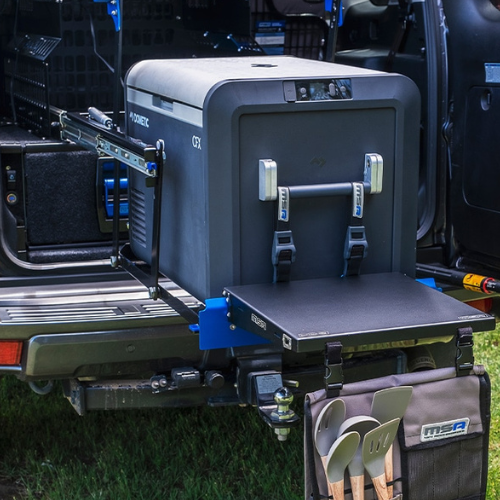

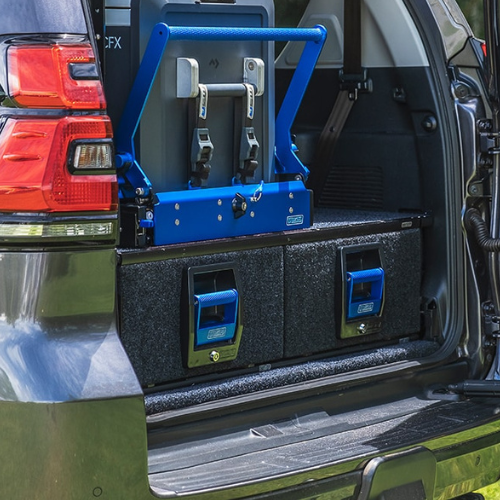

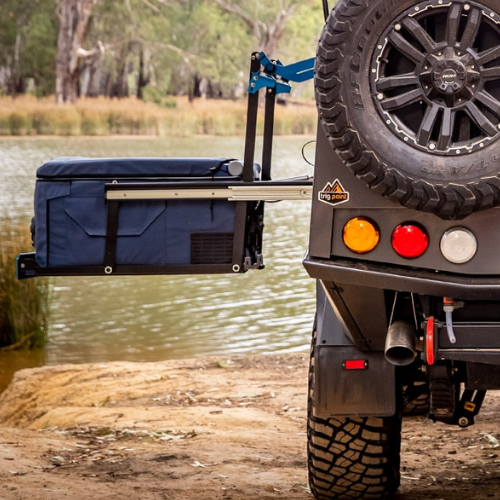

The patented Drop Slide™ is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.
Using the slimline handle, the Drop Slide™ lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle.
The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 Drop Slide™ is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.
FEATURES:
Compact size
Easy install
Lock-in and lock-out safety system
Powder-coated steel frame construction
Stainless steel and blue anodised aluminium fittings

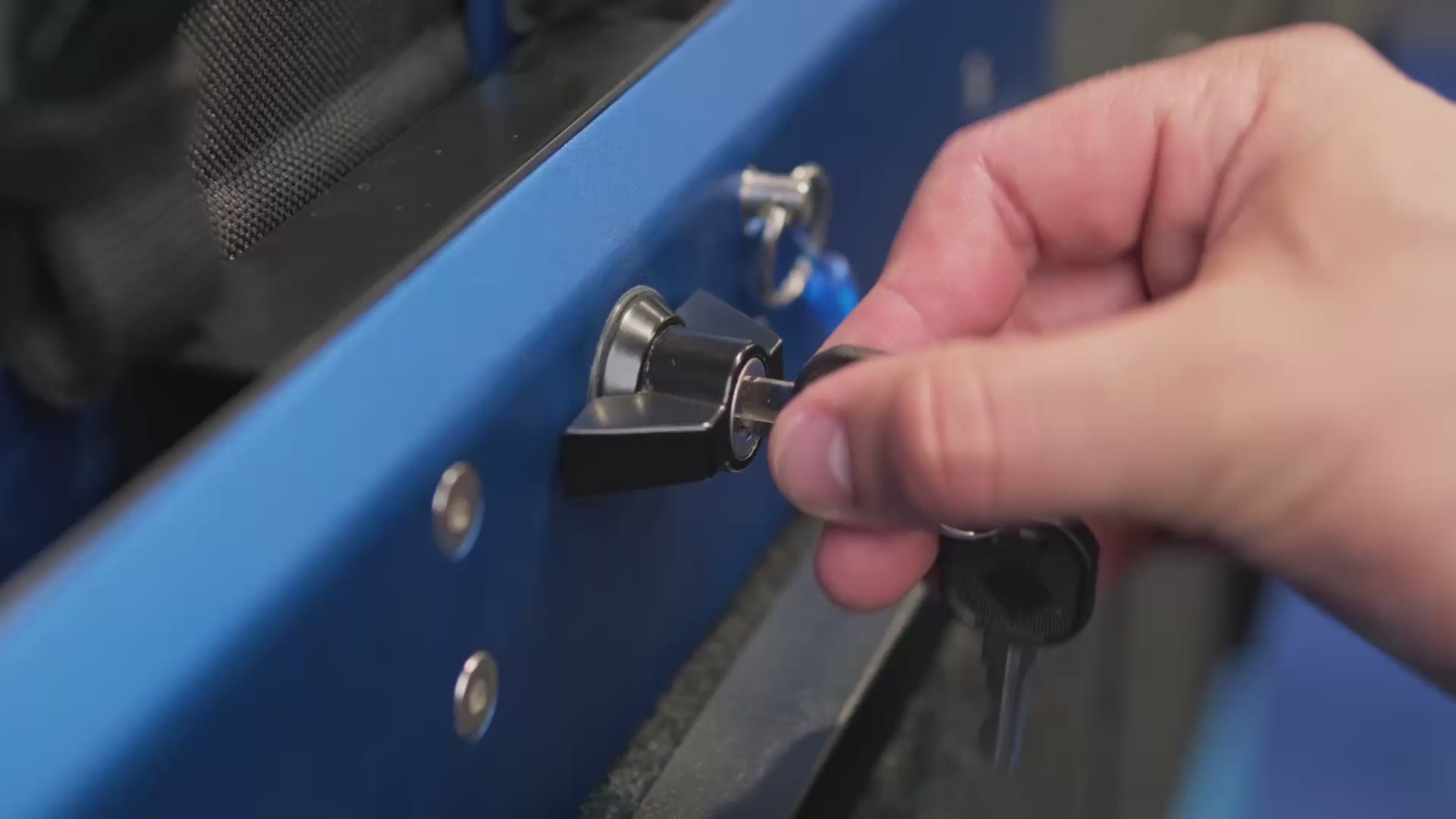

Travel lock and key
Anodised blue faceplate
INCLUDES:
All fixing and tie-down straps
MSA 4X4’s Lifetime Guarantee
NOTE: MSA 4X4 Fridge Barrier is available for this model
Weight |
42kg |
Fridge Tray1 |
955×560 |
Slide Length Closed2 |
1020+20 |
Slide Length Open3 |
2170+20 |
Overall Width4 |
670+20 |
Handle Width5 |
610 |
Drop6 |
300 |
Mount to Base |
35 |
Max Set Back |
150 |
Gas Strut |
1000N Slow |
|
Freight Dimensions |
860×690×170 |
Freight Weight |
48kg |
(all measurements displayed are in mm) |
Australian Patent Number: 2009245888
South African Patent Number: 2010/03634
United States Patent Number: 12/734257
PCT International Patent Number: PCT/AU2008/001555
