Truma VarioHeat Eco Additional Warm Air Kit

The Truma VarrioHeat eco Additional Warm Air Kit is designed to be used with the 'Truma - VarioHeat eco- Gas Heater - Kit' (available with either a Black or Cream cowl) when the heater ducting is required to be greater than 1 mtr.

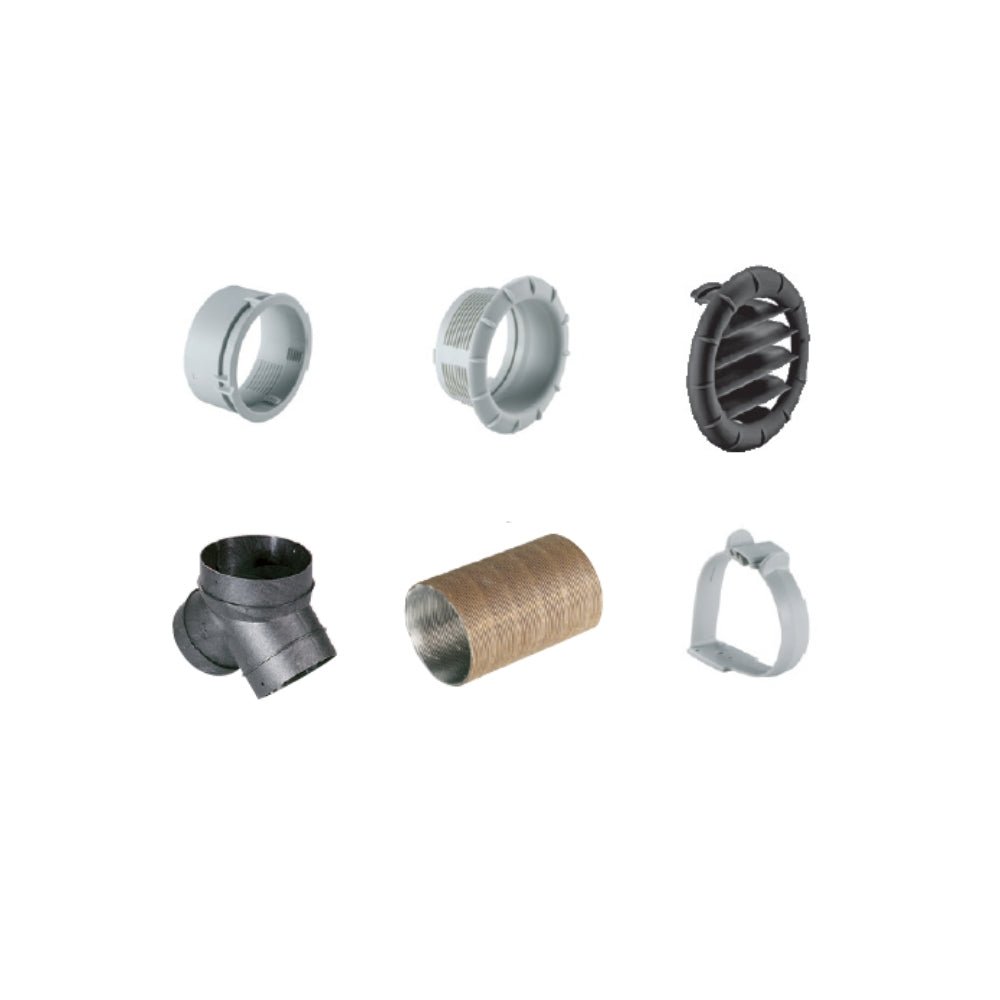

What's in the Kit:

• 2 x 40181-01 - End outlet nut
• 1 x 40171-07 - End Outlet, Grey
• 1 x 40171-05 - Air end outlet EN black
• 2 x 40721-05 - Lamellar insert - Black
• 1 x 39611-01 - Y-piece - inlet 80mm (1 inlet) , outlet 72mm (2 outlets)
• 1 x 39550-00 - Duct VR 72mm - 3m in one length
• 4 x 40261-01 - Clamp - 72-75mm

Note:

• This kit allows for two outlets and a maximum of 3mtrs in ducting.
• 3m of ducting is the maximum amount of duct allowed in a VarioHeat eco installation, please see installation instructions for more information.
• It is also important to note that this kit is for a Type A gas appliance, and as such must be installed by a qualified and licensed gas fitter to Australian Standard AS/NZS5601.2. Failure to do so will void the manufacturer's warranty & may pose a potential risk to your health & safety.
