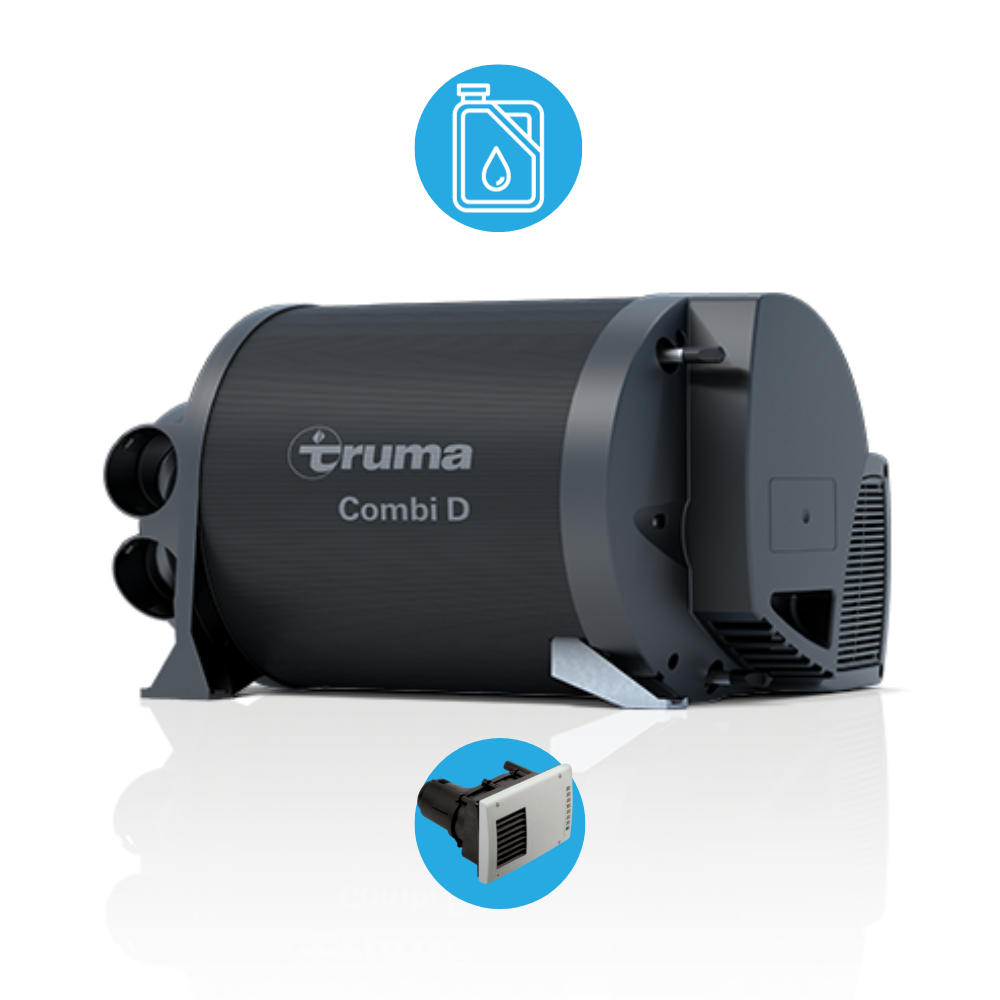

Truma Combi D6 Diesel Heater and Hotwater System Kit with White Cowl

Powerful diesel heater for larger motor homes

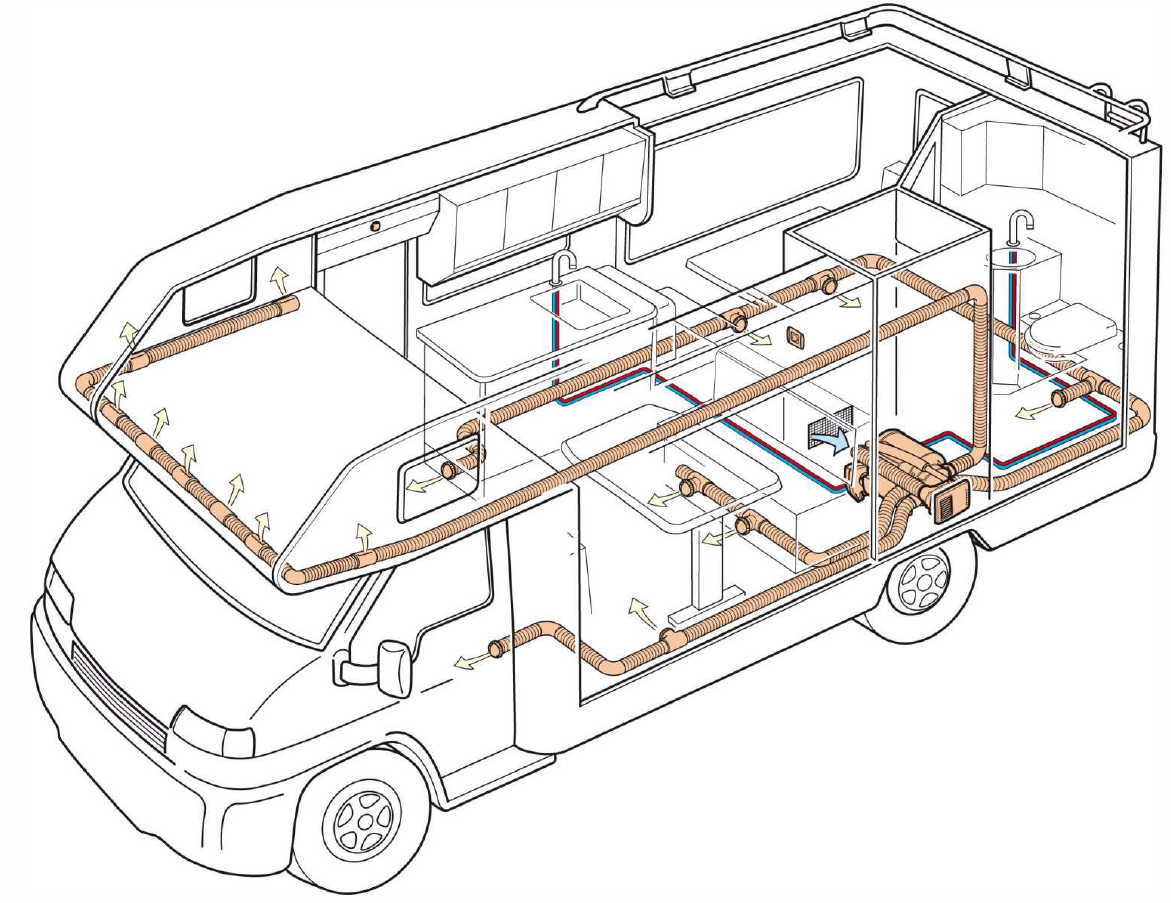

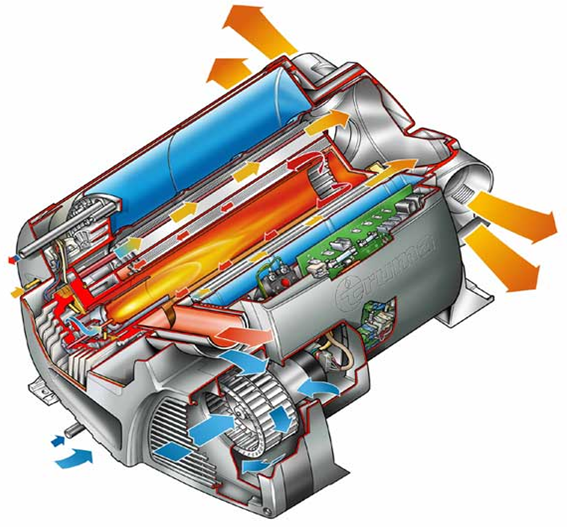

The Truma Combi D 6 is a powerful diesel heater that can also be used to heat water. It is designed specifically for larger motor homes. It is supported by a fan so that the motor home heater also works while you’re driving. In summer, you can use the Truma Combi 6 D for water heating only without using the space heater.

The Combi D 6 is extremely compact and an absolutely lightweight compared to other heaters with a similar output. Your Combi heater is controlled simply with a digital control panel. In combination with a Truma air conditioner, you can also select the automatic climate control option on the control panel. This ensures that inside the vehicle you always have the desired temperature.

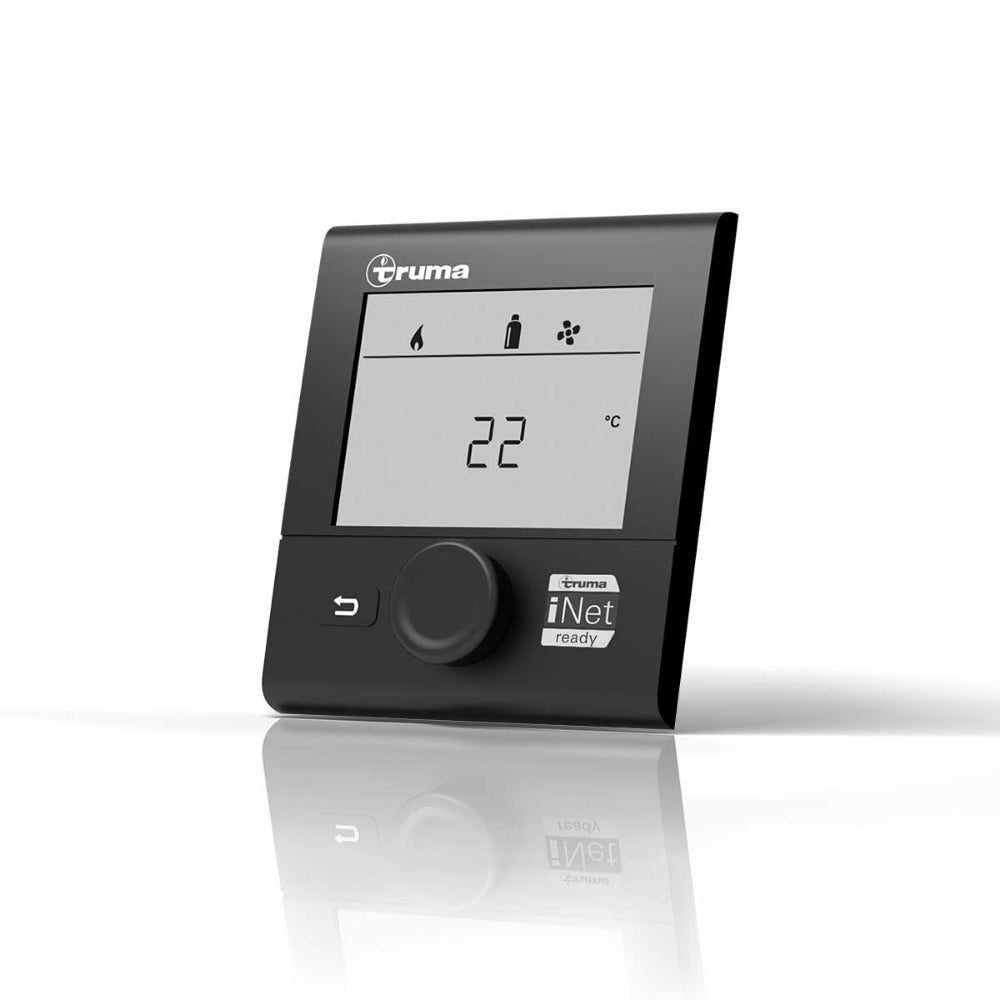

The Truma Combi D6 kit also comes with the Truma CP Plus.

The Truma CP Plus can also be used to control your Truma Aventa and Truma Saphir, this gives you full climate control over your vehicle, simply set and forget.

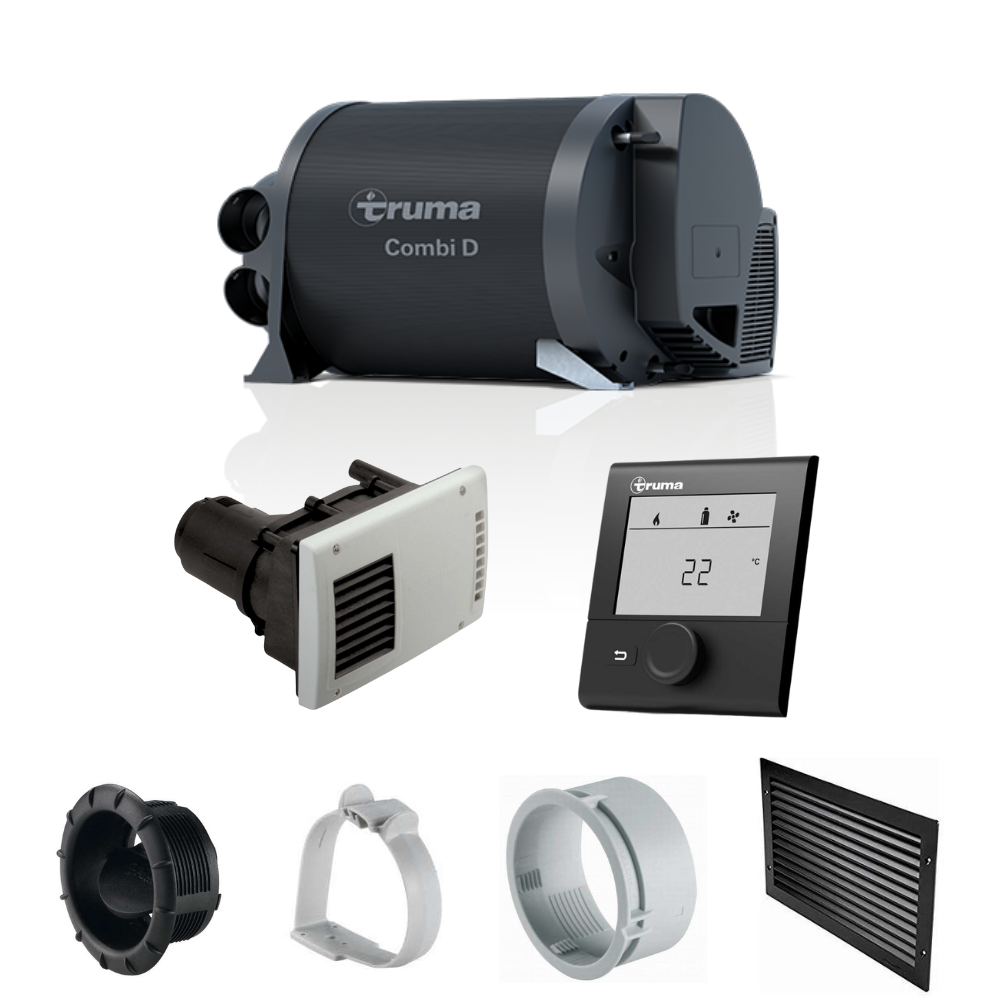

Kit Includes:

• 1 x 33504-27 - TRUMA COMBI D6-KIT Diesel Heater with Hot water (includes Truma CP Plus)
• 4 x 40171-05 - Air Outlet
• 4 x 40241-01 - Clamp-Duct
• 4 x 40181-01 - Nut for Air Outlet
• 1 x 40040-29200 - Grill Air Intake
• 1 x 34400-02 - Wall Cowl WKCD Bianco White

NOTE: This product requires BOTH ducting & an exhaust pipe set that is NOT INCLUDED in this kit and is required to complete the installation.

Ducting can be purchased in various lengths:

• Truma - Heating Ducting required for Truma Combi 2E, 4E & D6 - 65mm - 5 metres long
• Truma - Heating Ducting required for Truma Combi 2E, 4E & D6 - 65mm - 10 metres long
• Truma - Heating Ducting required for Truma Combi 2E, 4E & D6 - 65mm - 15 metres long

• Truma - Heating Ducting required for Truma Combi 2E, 4E & D6 - 65mm - 20 metres long

Exhaust Pipe Sets can be purchased in various lengths:

• Truma - Exhaust Pipe Set required for Truma Combi D6 - 60cm long
• Truma - Exhaust Pipe Set required for Truma Combi D6 - 70cm long
• Truma - Exhaust Pipe Set required for Truma Combi D6 - 100cm long

All Features:

• Powerful and quiet fan
• Compact and space-saving
• Various installation options
• Low energy consumption
• Can also be operated with an empty water tank
• Automatic climate control when used with a Truma air conditioner
• 2 Year Warranty

Specifications:

• Heating up time from approx. 15 °C to approx. 60 °C (Measured according to EN 15033)
  Hot water system: Approx. 20 minutes
  Heater + hot water system: Approx. 80 min.
• Airflow rate: Max. 287 m³/h
• Power consumption (12 V):
  Heater + hot water system: 1.8 - 7 A (during normal operation)
  Heating hot water system: Max. 1.8 A
  Stand-by: 0.001 A
• Fuel: Diesel as per EN 590
• Water volume: 10 litres
• Pump pressure: Max. 0.28 MPa
• System pressure: Max. 0.45 MPa
• Rated thermal output: 2000 / 4000 / 6000 W
• Weight (not containing water)
  Heater unit:16.2 kg
  Heater unit with peripheral devices: 17.2 kg
• Air delivery volume (free-blowing without hot-air pipe)
  with 3 hot-air outlets: Max. 249 m³/h
  with 4 hot-air outlets: Max. 287 m³/h
• Burner stages:
  Normal operation**
  Rated thermal output 1000 W 2000 W 4000 W 6000 W
  Diesel consumption 110 ml/h 220 ml/h 452 ml/h 630 ml/h
  ** During normal operation at average heat output of 1000 W

SEE INSTALLATION MANUAL HERE
