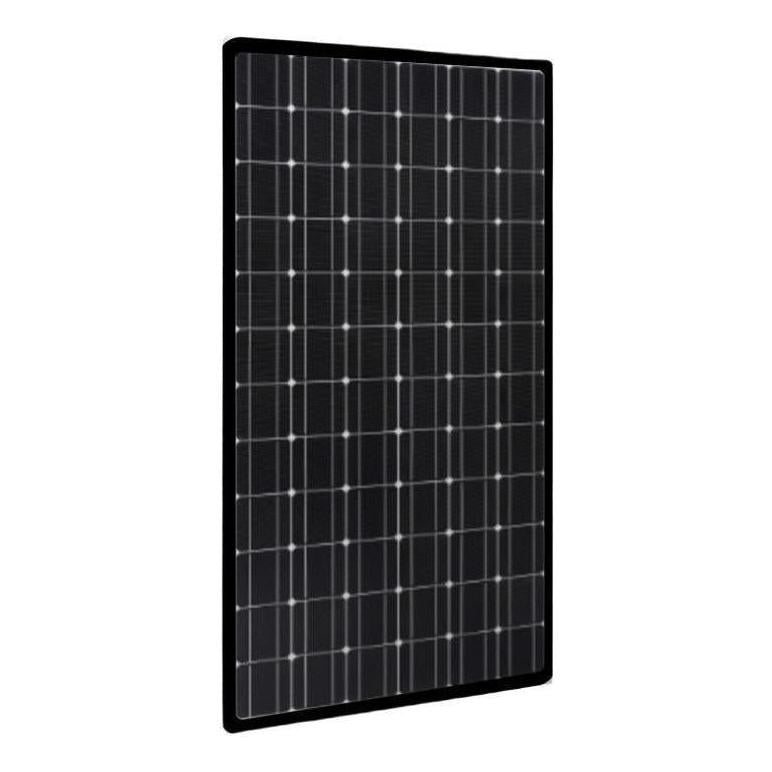

Finch 12V Solar Monocrystalline Cell Panel 210W 1500 x 680 x 35mm

The Finch 12V Solar Mono-crystalline Cell Panel delivers efficient, reliable power generation for caravans, motor homes, house boats, and remote holiday cabins.

Its high-quality mono-crystalline cells ensure optimal energy conversion, supporting battery charging and powering multiple or larger appliances simultaneously.

Designed for off-grid use, this panel provides a durable and effective solution to maintain energy independence in diverse outdoor settings.

- High Conversion Efficiency
- Power Tolerance 0~+3%
- Outstanding Performance in Low-Light Irradiance Environments

Specifications

Model Type: FIN-SP210B

Peak Power(Pmax): 210W

Maximum Power Voltage(Vmp): 18.3V

Maximum Power Current(Imp): 11.5A

Open Circuit Voltage(Voc): 21.96V

Short Circuit Current(Isc): 11.95A

Module Efficiency(%): 21.21%

Maximum System Voltage(V): 1500V

Maximum Series Fuse Rating(A): 15A

Power Tolerlance: 0~+3%

Operating Temperature(℃): -40~+80

Standard Test Condition(STC): 1000W/㎡; AM 1.5;25 ±2℃

Mechanical Characteristics

Cell Type: Mono210*140mm

NO. of Cells: 3x10=30

Dimensions: 1500x660x35mm

Weight: 11kg

Front Glass: 3.2mm tempered glass

Frame: Silvery/Black anodized aluminium alloy

Junction Box: IP65/IP67

Cables: 900mm double insulated, MC4 compatible

Package Configurations: 2pcs/carton

Temperature Ratings(STC)

Temperature Coefficients of Isc: +0.06%

Temperature Coefficients of Voc: -0.32%

Temperature Coefficients of Pmp: -0.45%

Mechanical Loading

Temperature Coefficients of Isc: 5400PA

Temperature Coefficients of Voc: 2400PA

Temperature Coefficients of Pmp: CLASS A

Warranty

10 years warranty on product materials

10 years 90% of Min rated output power

25 years 80% of Min rated output power

IEC 61215, IEC 61730

SGS-TUV, CE, ISO
