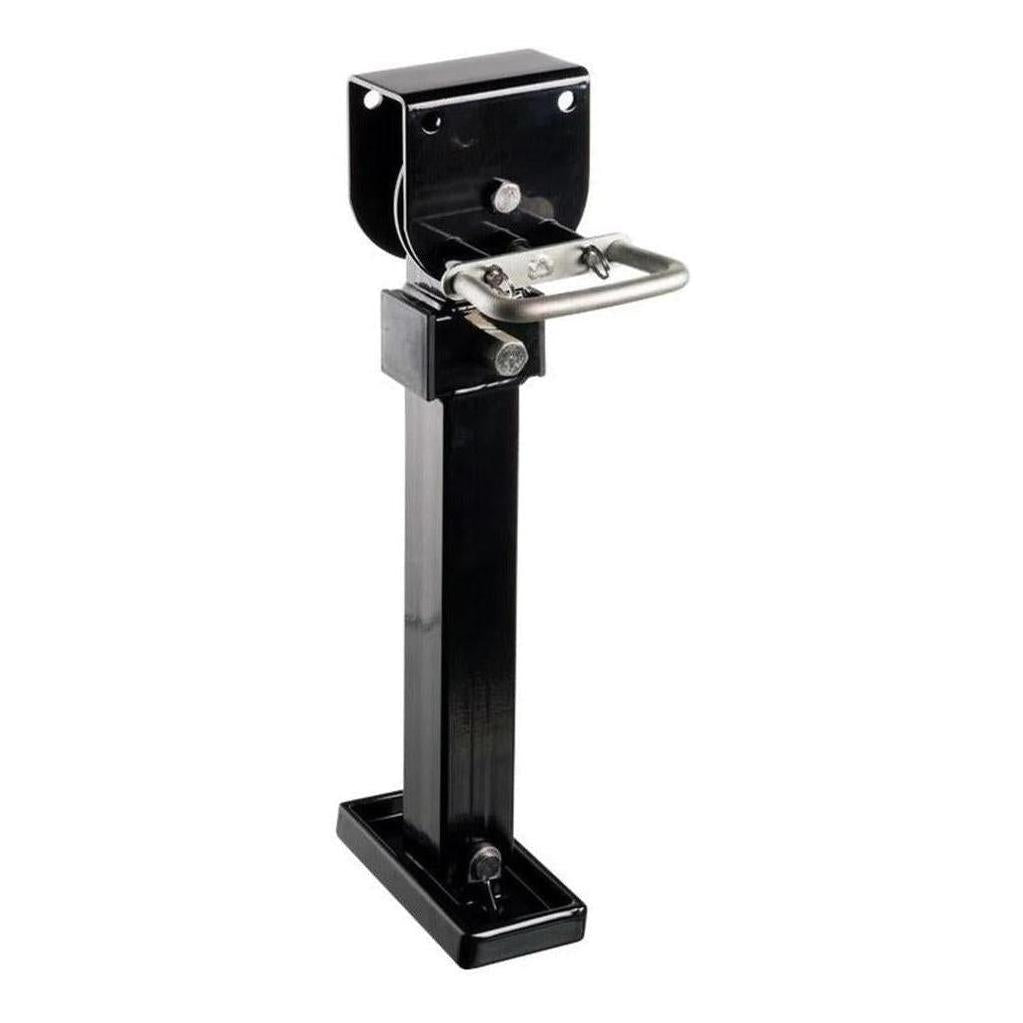

Iluma Drop Down Stabilizer leg Corner Steadies 620mm Black

Iluma drop down corner steadies are designed to stabilize a trailer or caravan when stationary. The Iluma leg comes with a mounting plate that can be welded on allowing the corner steady unit to be then bolted to the bracket (with included bolts). This makes it easy to be removed & swapped over if required.

The drop-down corner steadies can be swung from the horizontal traveling position to different angles including the stationary position of vertical withing Seconds. The leg then only requires a small amount of winding to steady your trailer.

Iluma drop-down corner steadies have been tested and meet the requirements of the Caravan Industry Association Australia (CIAA), the Australian controlling body for caravan manufacturing standards.

Features & Specifications:

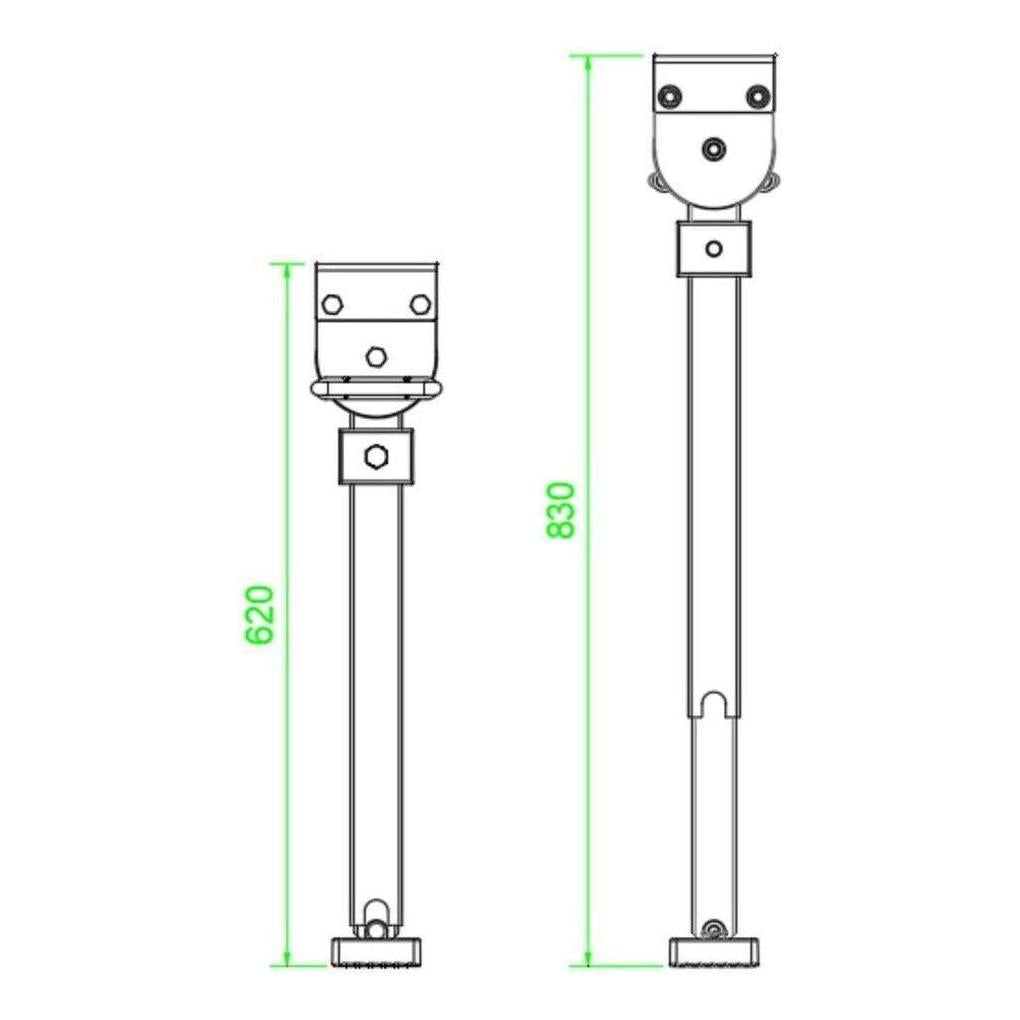

• Height Extended Fully Open – 830mm
• When Leg is Closed – 620mm
• Load Rating - 450kg
• Weight – 6.2KG

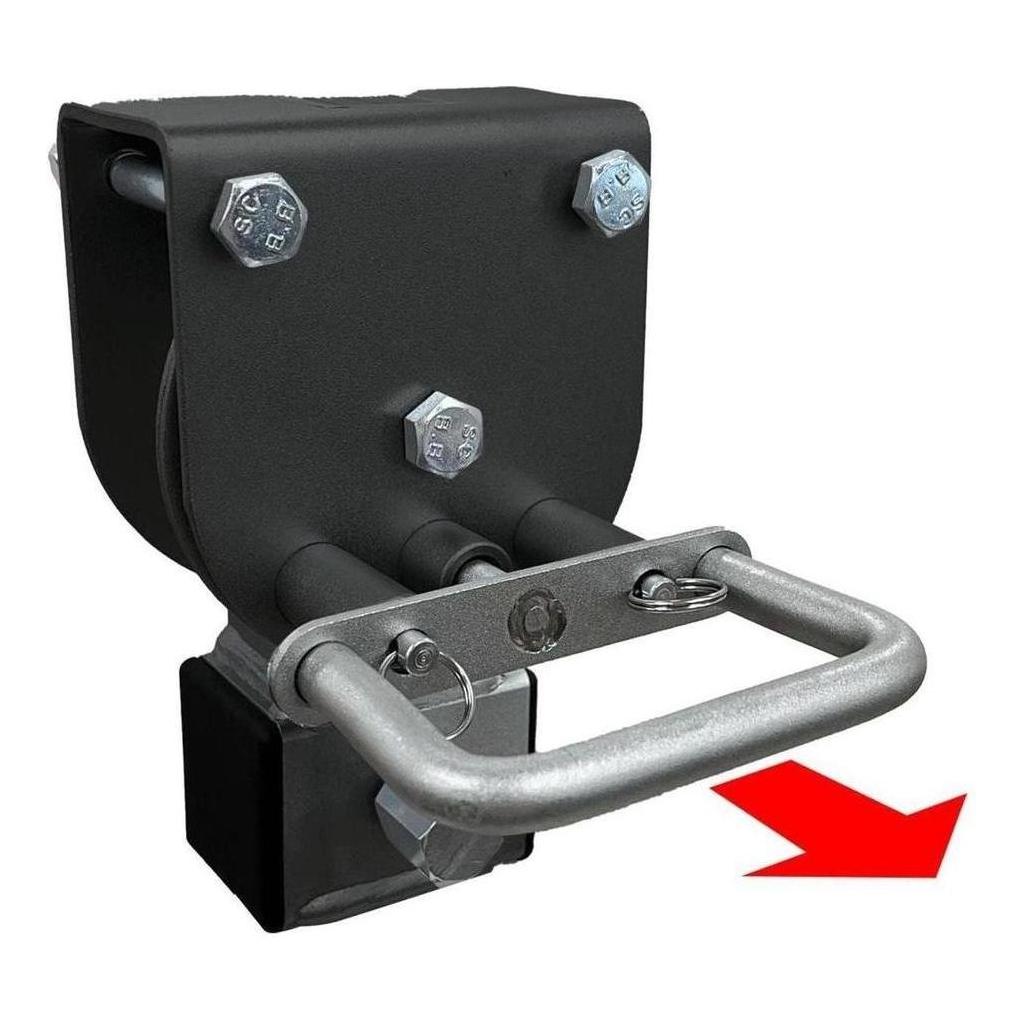

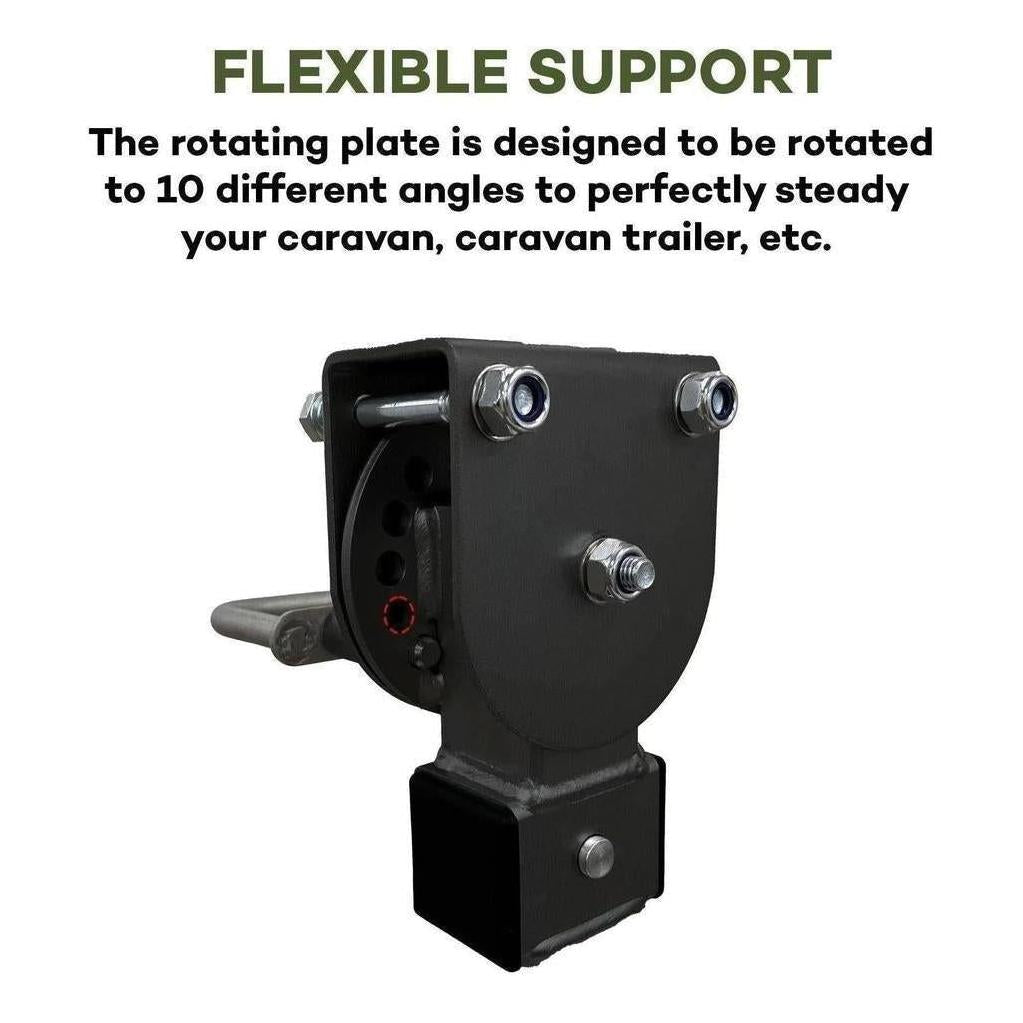

• Rotation: The rotating plate is designed to be rotated to 10 different angles to perfectly steady your Caravan, Pop top or Camper trailer.
• Base Support: The heavy-duty base is designed to offer a sturdy base against most terrains this can be achieve with a 180° flip due to the angle options

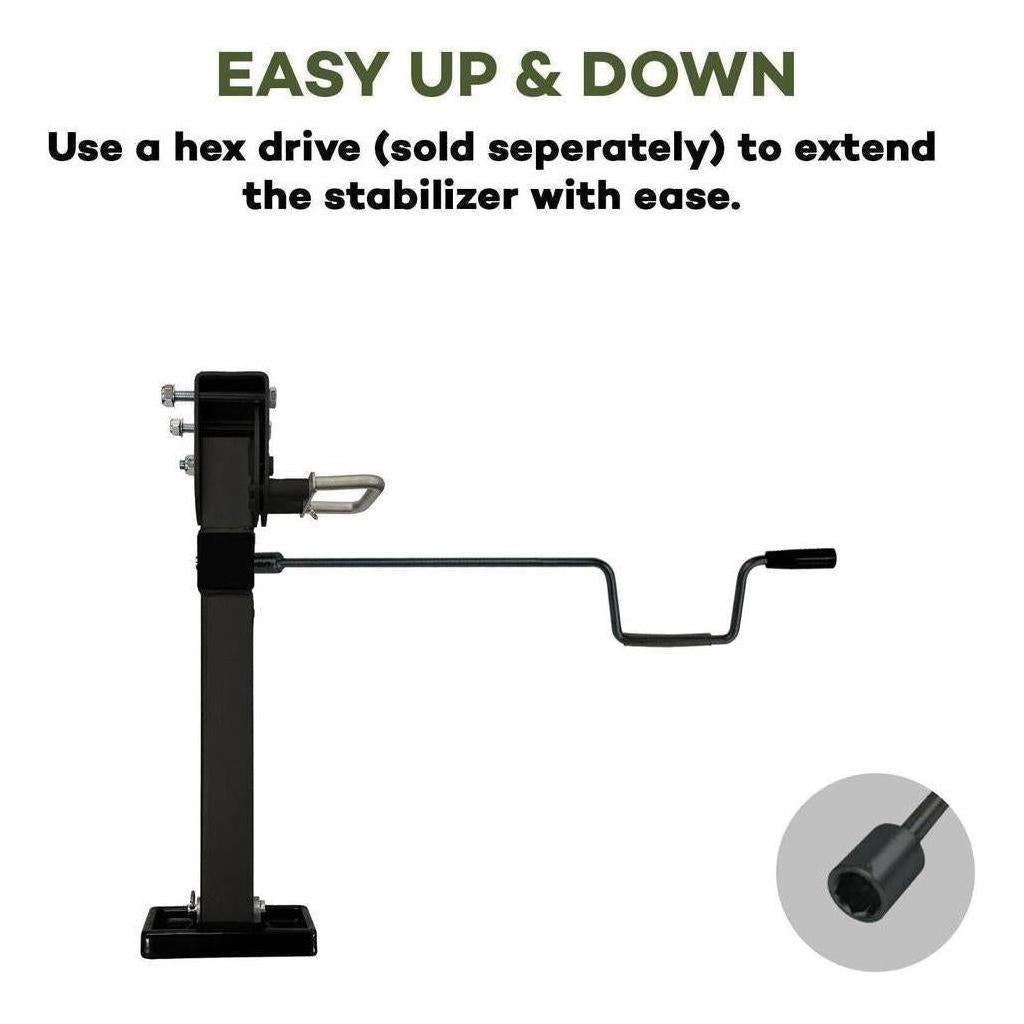

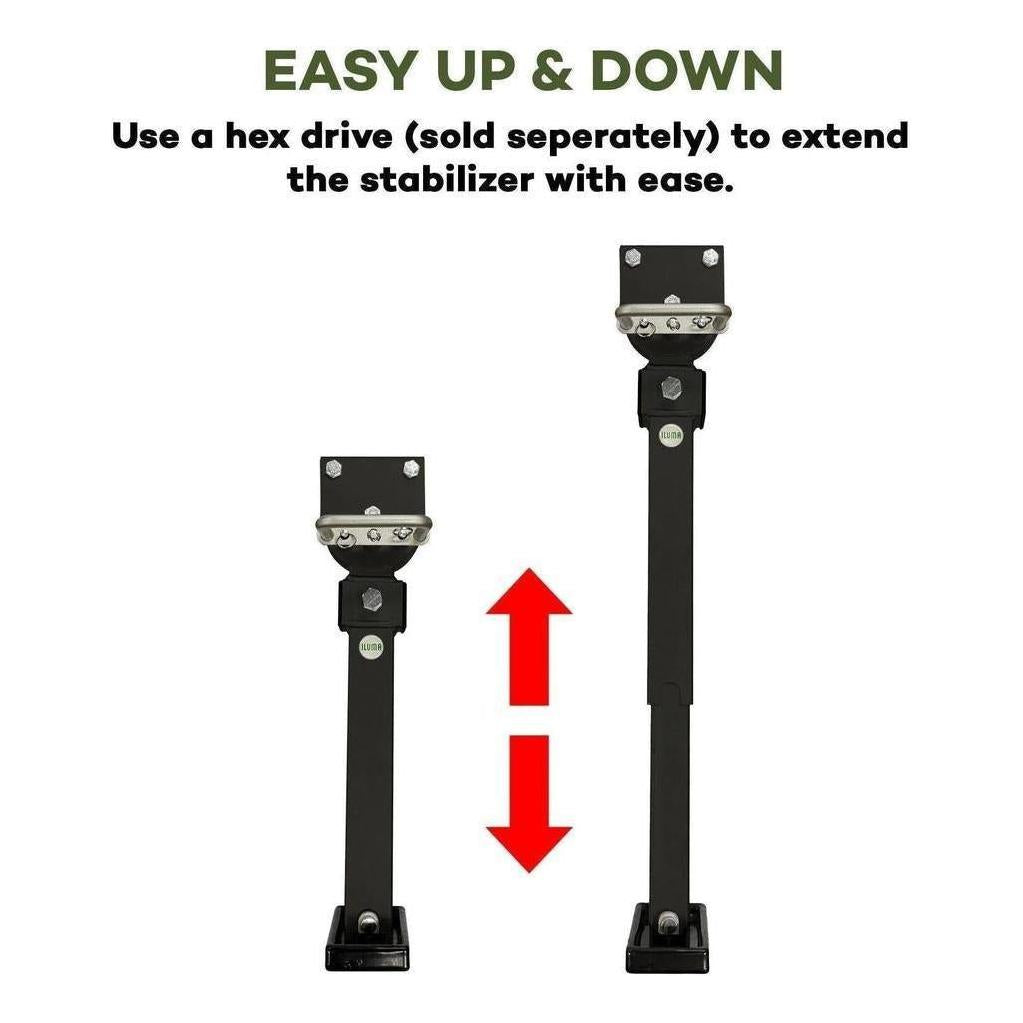

• Easy Up & Down: With an Iluma hex drive PN: ILU-DROPLEGBRACE (Purchased Separately) the Drop-down corner steady leg can easily go up or down to the ideal position you want.
• Durable Construction: Made from heavy-duty steel with Zinc or Black powered coated process, the Iluma drop down corner steady leg is rust, corrosion, scratch and impact resistant.
• Suits: The Iluma drop down corner steady leg is ideal for trailer, caravan, camper trailer, boat trailer and motorcycle trailer, etc.

Important Note:

• The Iluma corner steadies are not designed to be used as a jack or as the means of lifting the trailer or caravan off the ground. They are designed to stabilize the trailer or caravan when stationary.
• If your trailer is on soft or uneven surfaces, we recommend using stabilizer pads
