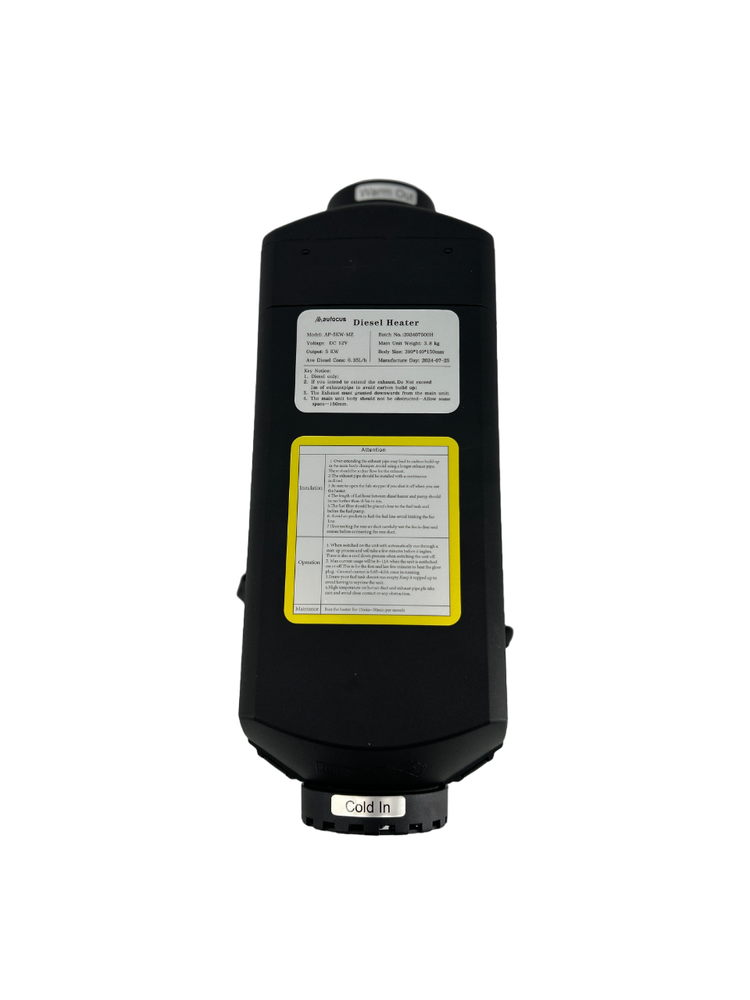

5kW MZ - Gen 4 Kit
This Premium Quality AU Focus Diesel heater is backed by a 24 month warranty.
The 5kW MZ is generally used for caravans that are over 24ft or where the van mainly consists of canvas.
Features:
- RCM and EMC Certification.
- Three modes: 1. Fan only, 2. Manual Heat Mode 1 - 10, 3. Smart mode - The heater stops heating and burning fuel once it arrives at a set temperature. If the temperature then drops 2 degrees celsius the heater resumes.
- Small and compact design allowing for a space-saving installation.
- Easy to use LCD panel with remote control - Also features, Bluetooth connectivity and app to control from your phone.
- Sensors on both the control board and fan for additional safety protection.
- High and Low Voltage & current protection.
- Fast heat up time and maintains a consistent temperature.
- Auto cool down process when powered off.
- Low fuel consumption.
Specifications:
- Power: 1kW - 5kW adjustable
- Fuel: Diesel only
- Rated Voltage: DC 12V
- Fuel Consumption(L/h): 0.1-0.5
- Working Temperature: -400~+500
- Main Unit Size: Length 390mm x Width 150mm x Height 140mm

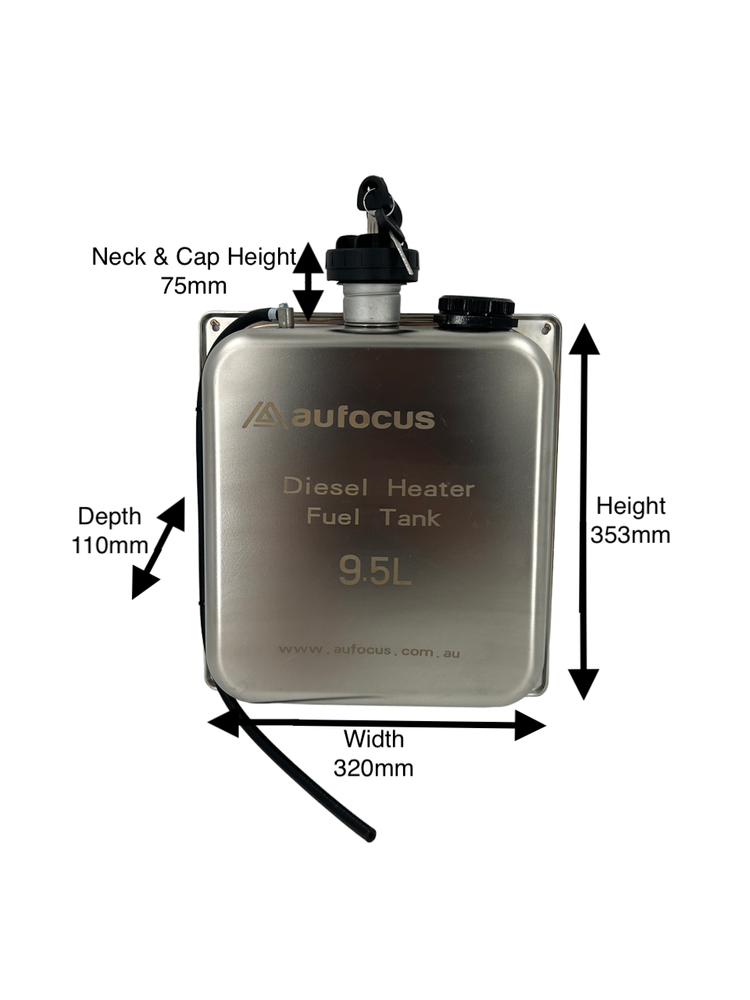

- Tank Size: Length 320mm x Height 353mm x Depth 110mm.
- Neck & Cap Height 75mm.
- Black flame retardant plastic casing (Top Grade)
- LCD Control Panel - Also displays error codes for easy trouble shooting if required.
- Power (5~35w/h) peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.

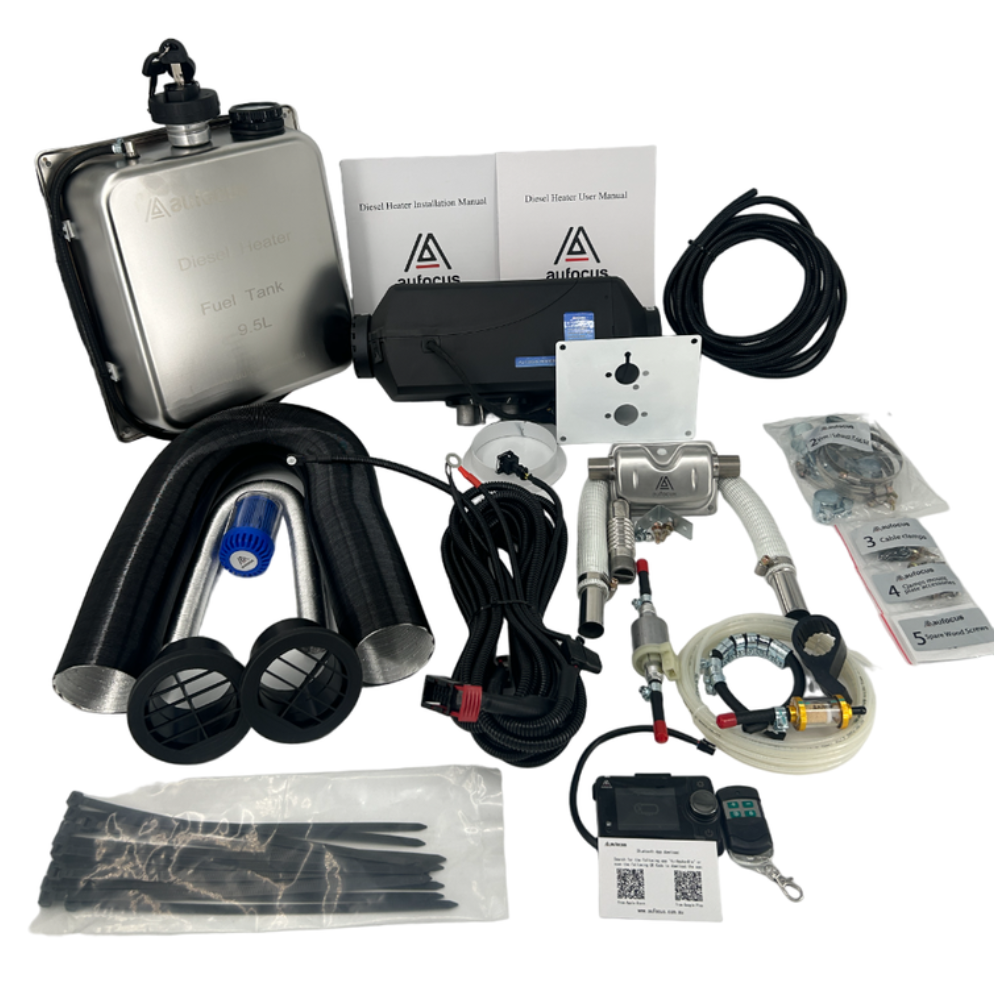

What’s Included:
-
Easy to follow DIY Installation manual.
-
Easy to read User Manual.
-

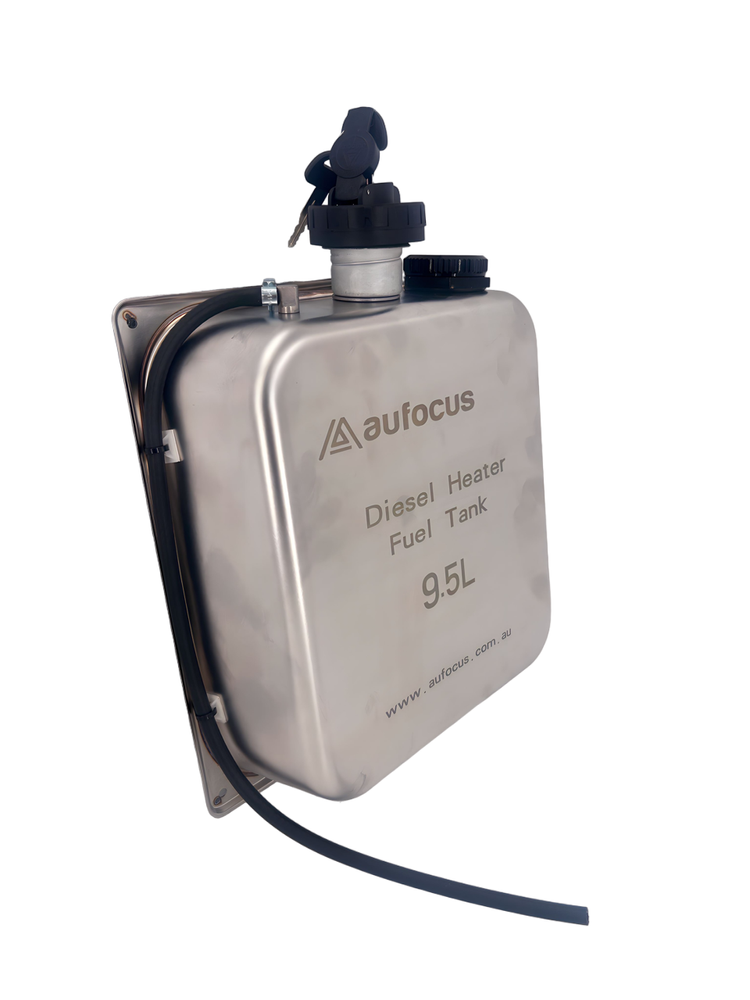

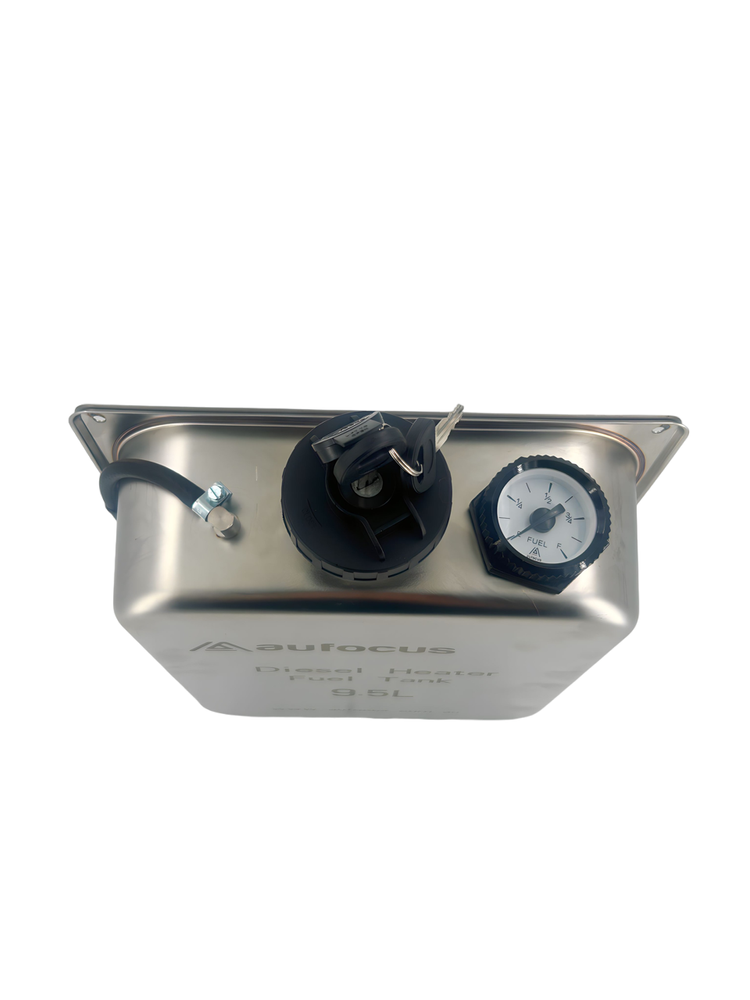

9.5L Stainless Steel (304 grade) Fuel Tank with top mounted dial fuel level gauge, fuel pickup and lockable fuel cap.
-

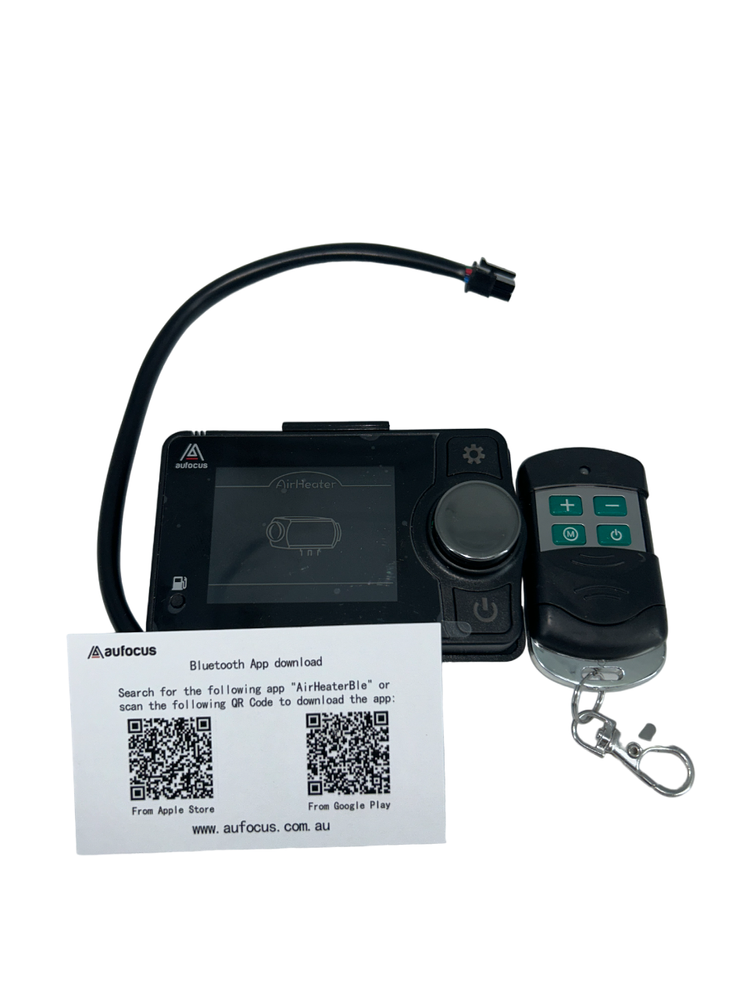

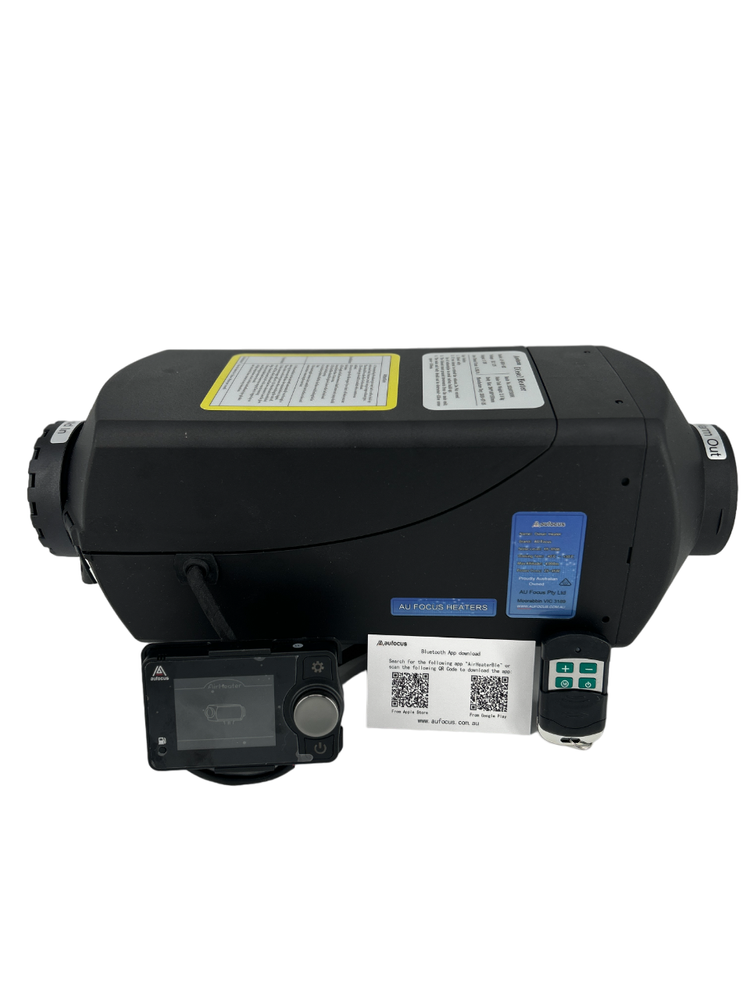

LCD panel with remote control plus easy to download app to control the heater from your mobile phone.
-
Solidly constructed with high grade heat resistant hard casing.
-

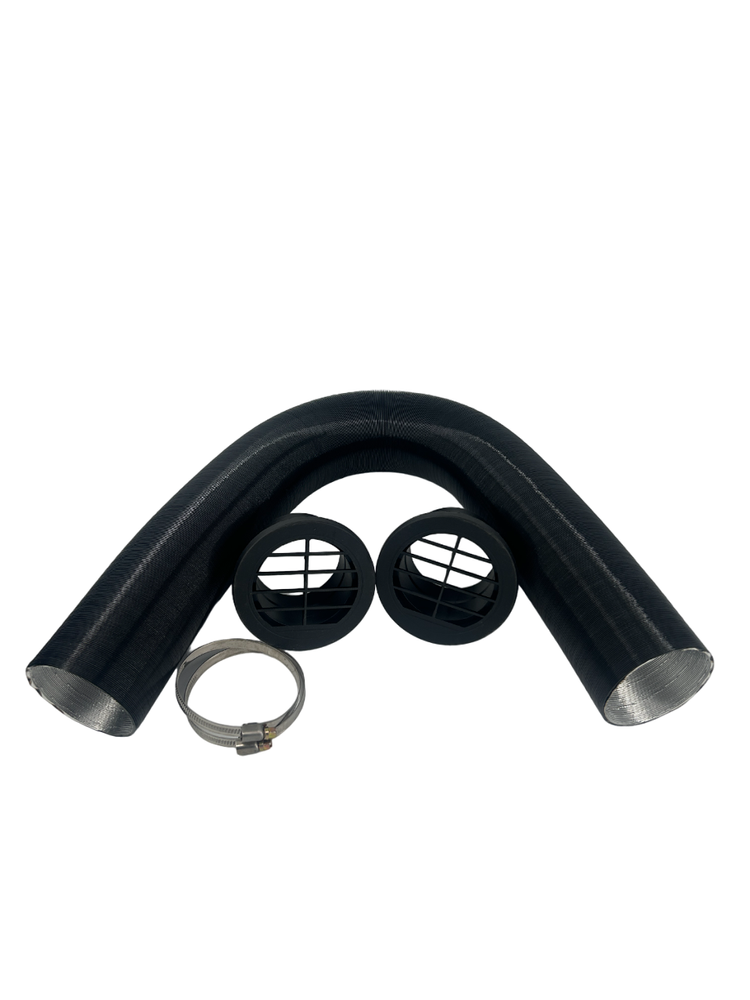

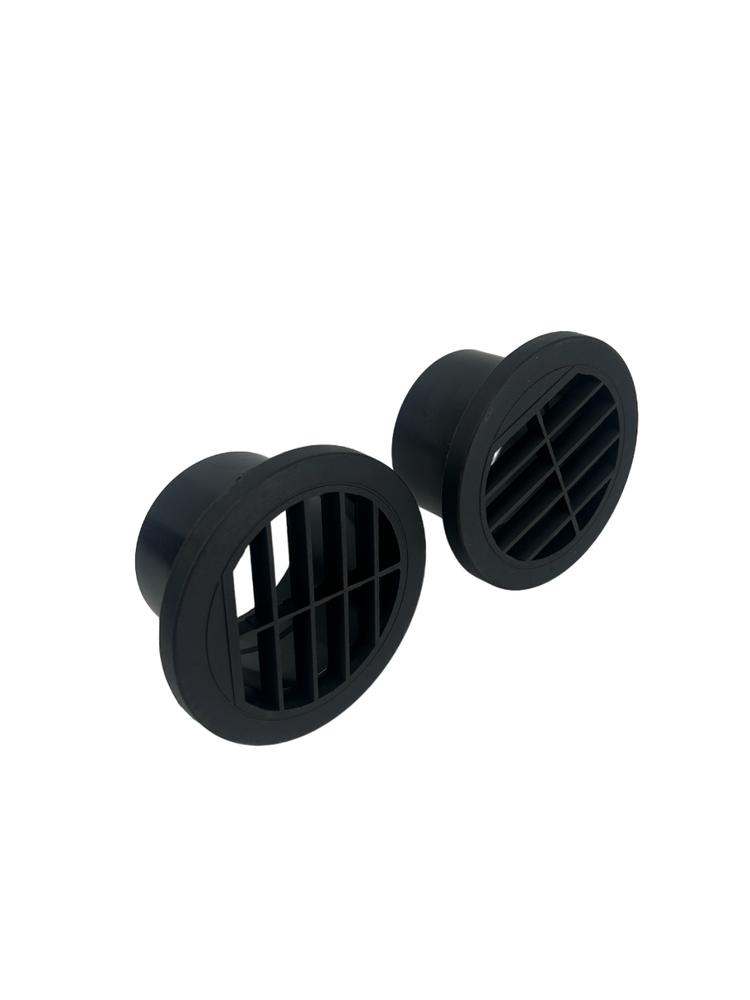

2 x Directional Flat vents.
-

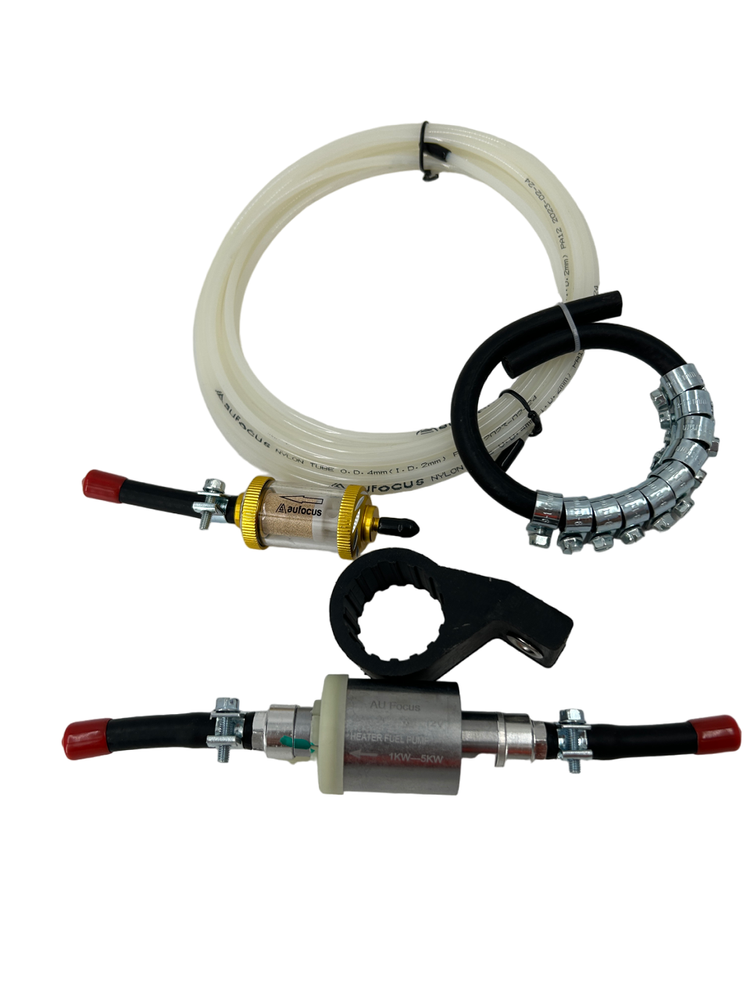

Super quiet heavy duty fuel pump.
-

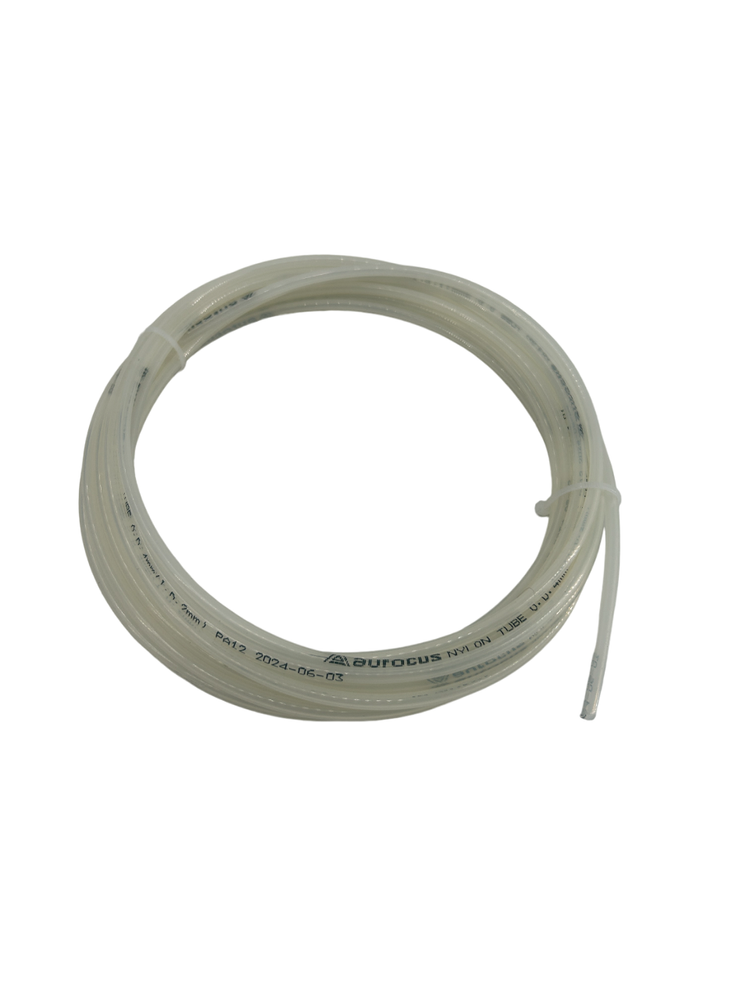

PA66 hard nylon fuel line 6m (4mm diameter, 1mm wall thickness), with black rubber connectors and heavy duty conduit.
-

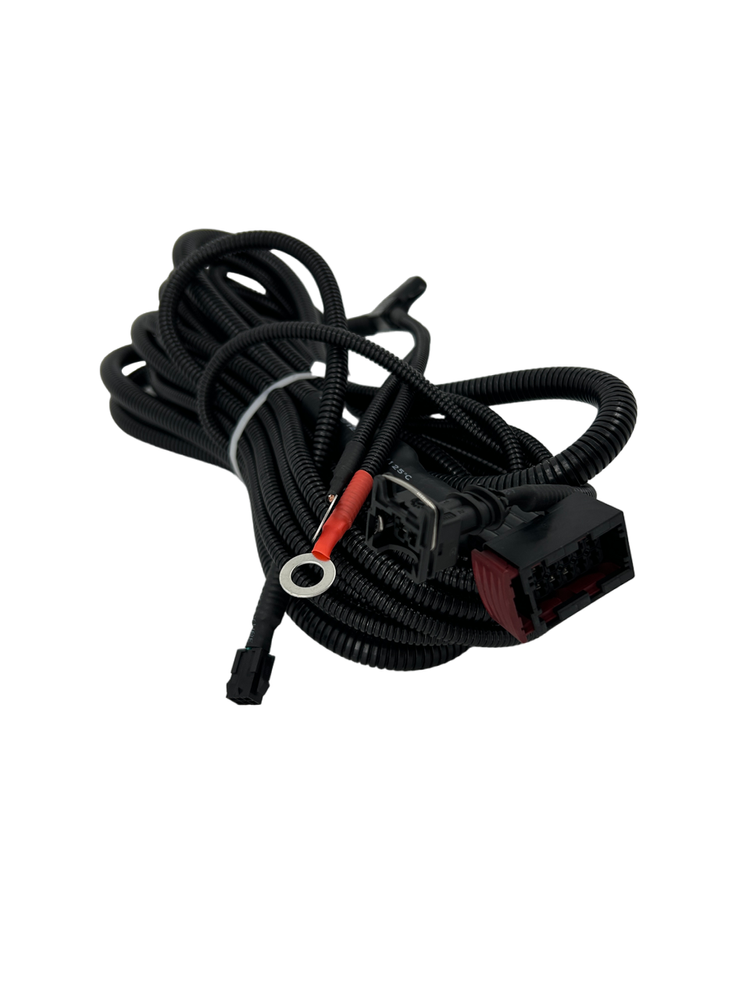

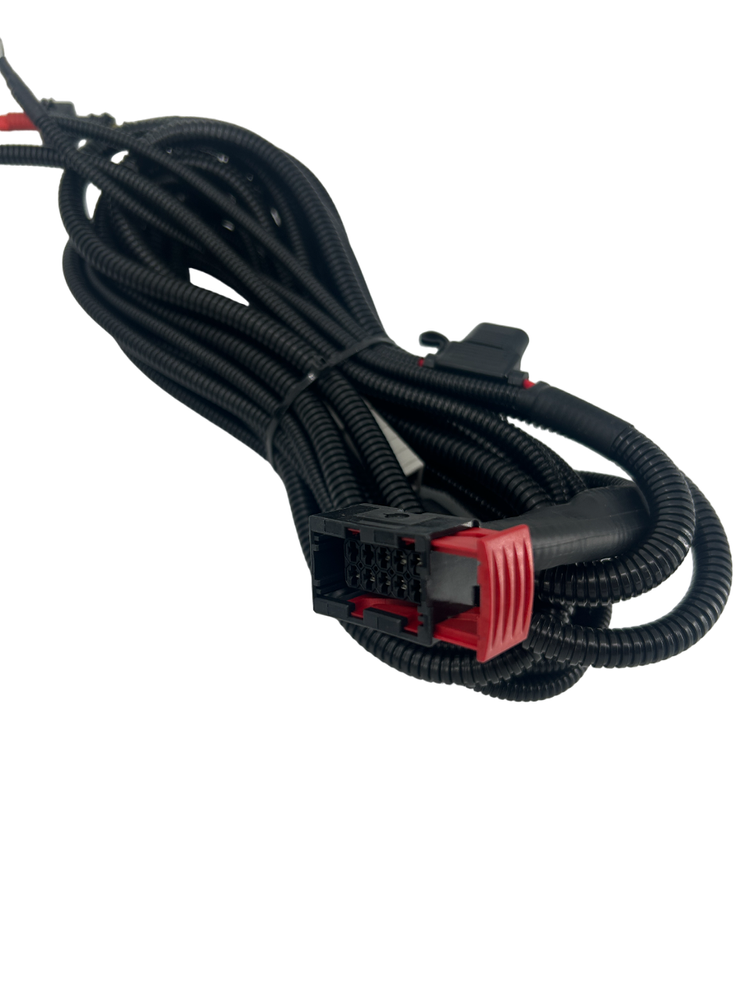

Unique design wiring harness. The wiring harness includes a 5m power cable (2.5mm core wiring), a 2.5m LCD.
-

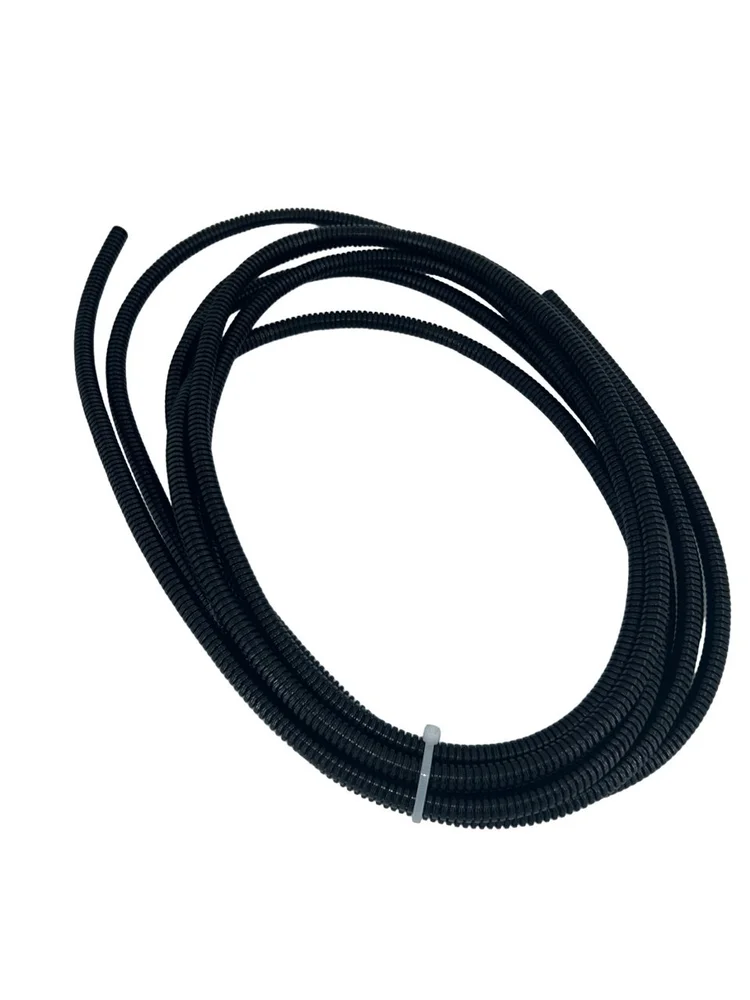

Controller cable and a 2.5m pump power cable. All cables are in flame retardant conduit and Anderson Plugs for easy installation (plug and play).
-

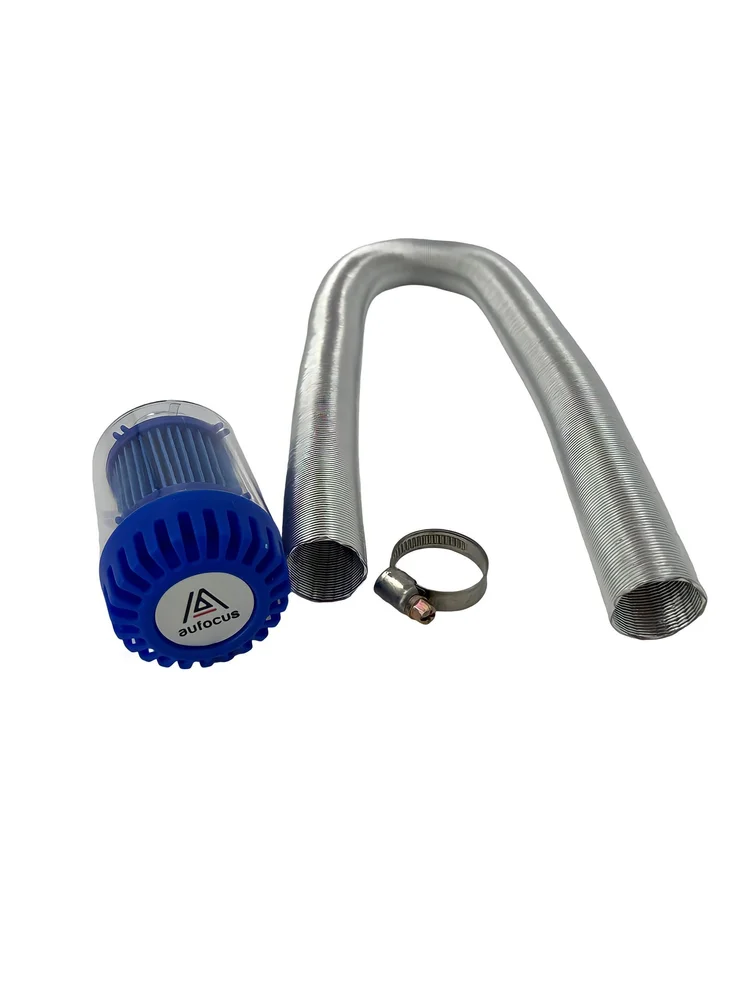

Quality Air Filter.
-
Premium reusable fuel filter made with alloy top and base.
-

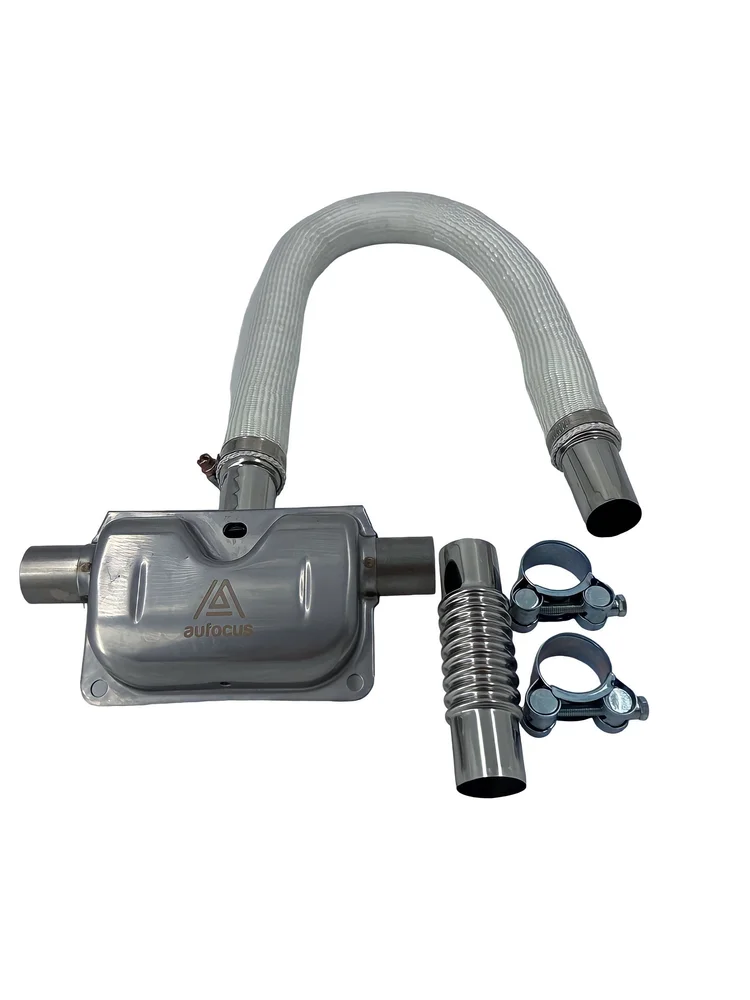

High grade exhaust with flame retardant sleeve, a heavy duty baffled muffler and exhaust tip.
-

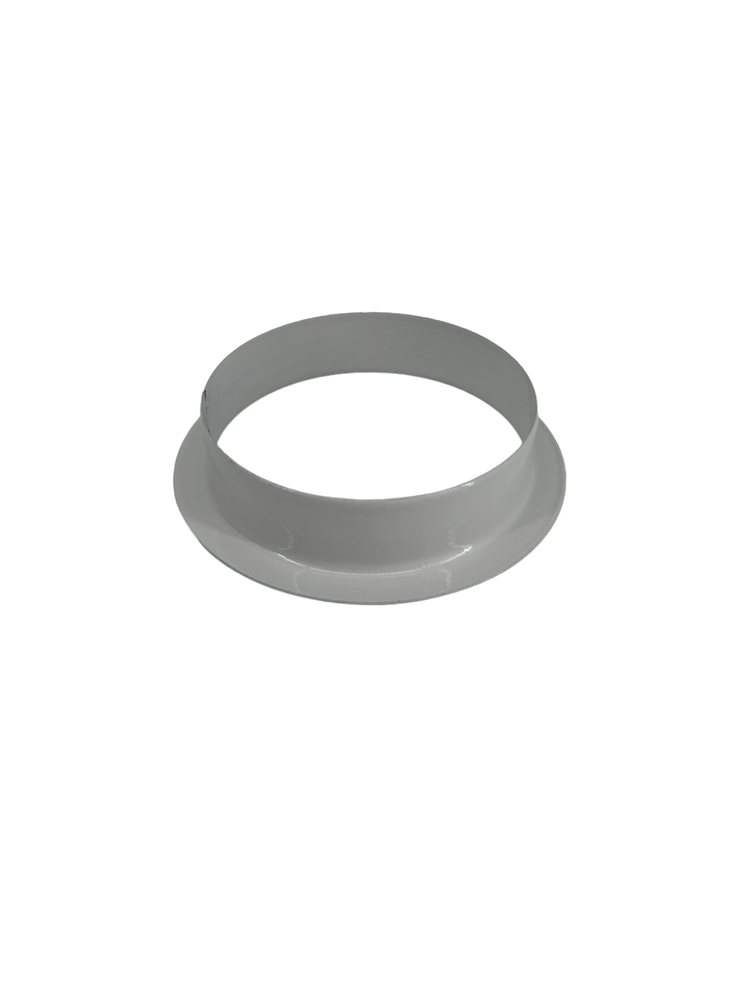

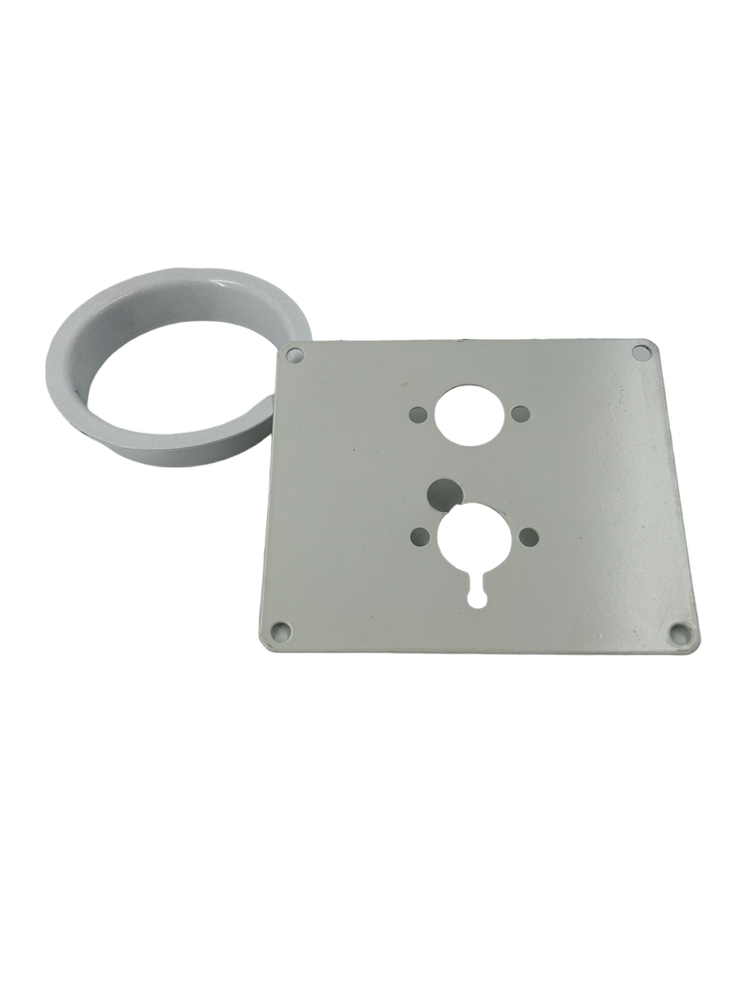

Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
-
Thicker durable plastic cable ties.

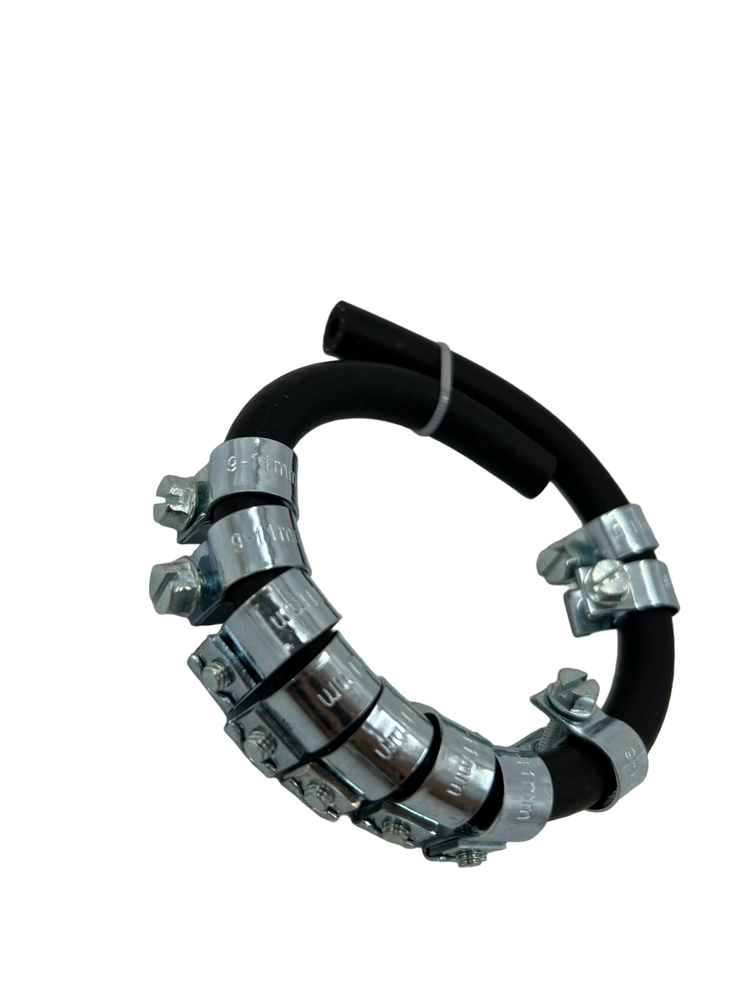

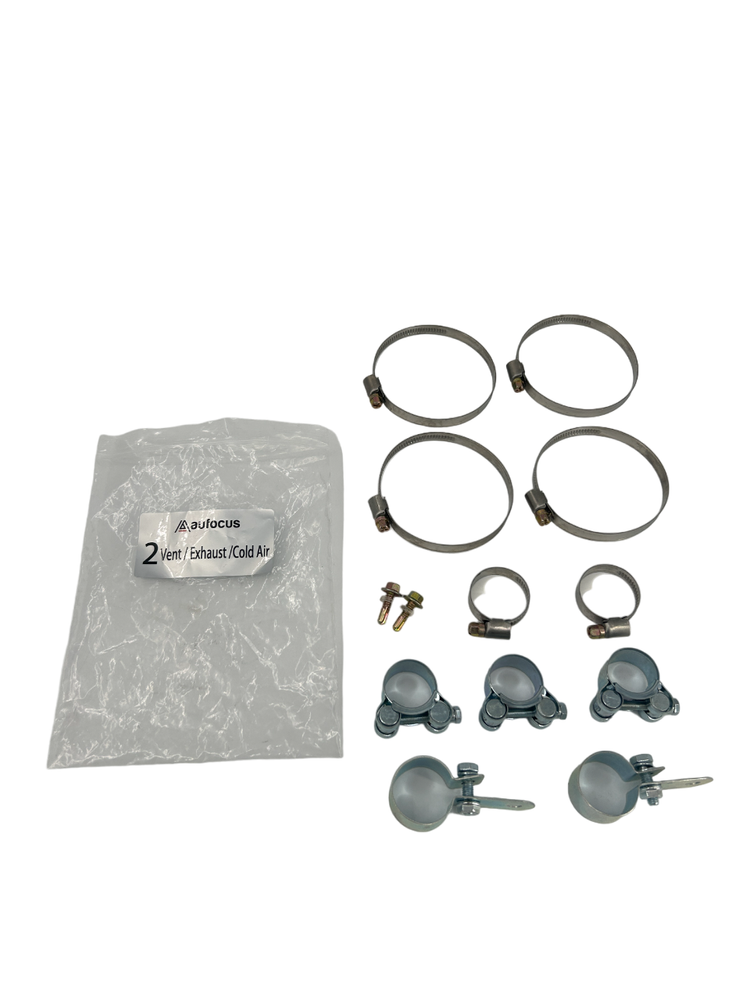

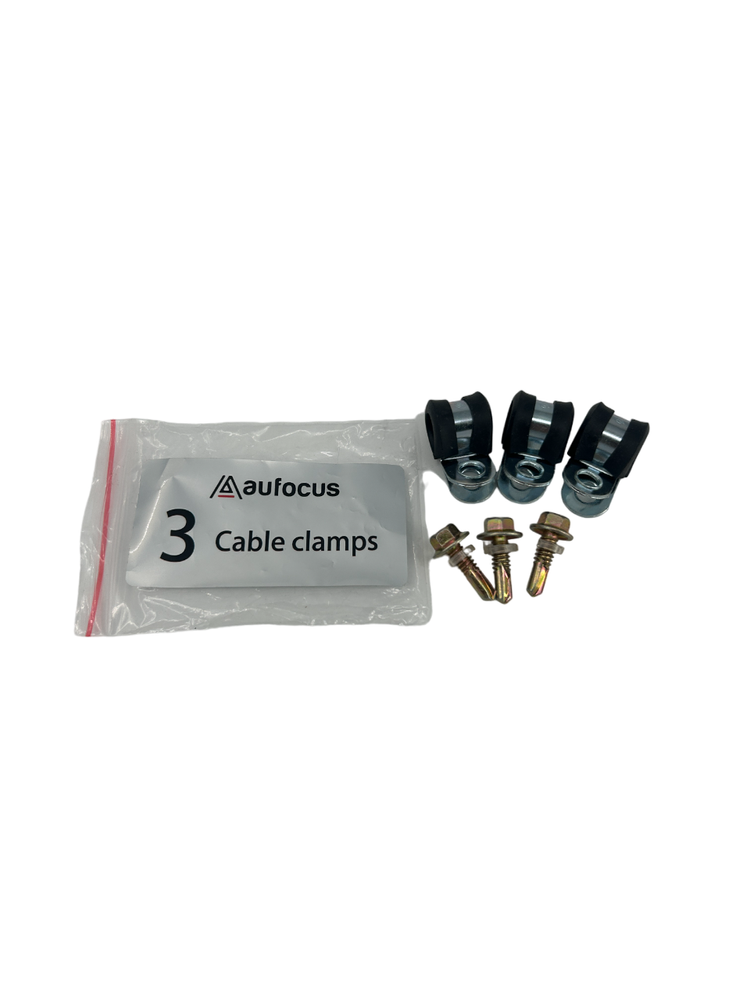

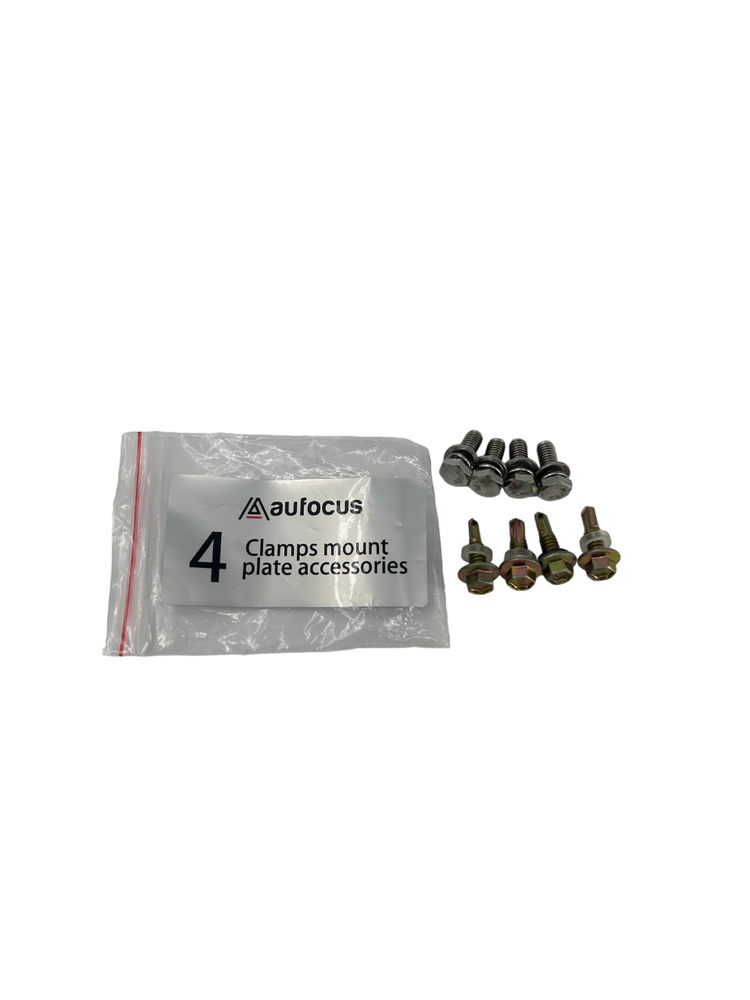

- High quality clamps and other accessories required to complete the installation.
