KEY FEATURES Monitor up to 40 Bluetooth sensors Connect up to 4 water tanks Know your battery voltage DIY installation in minutes Package includes:

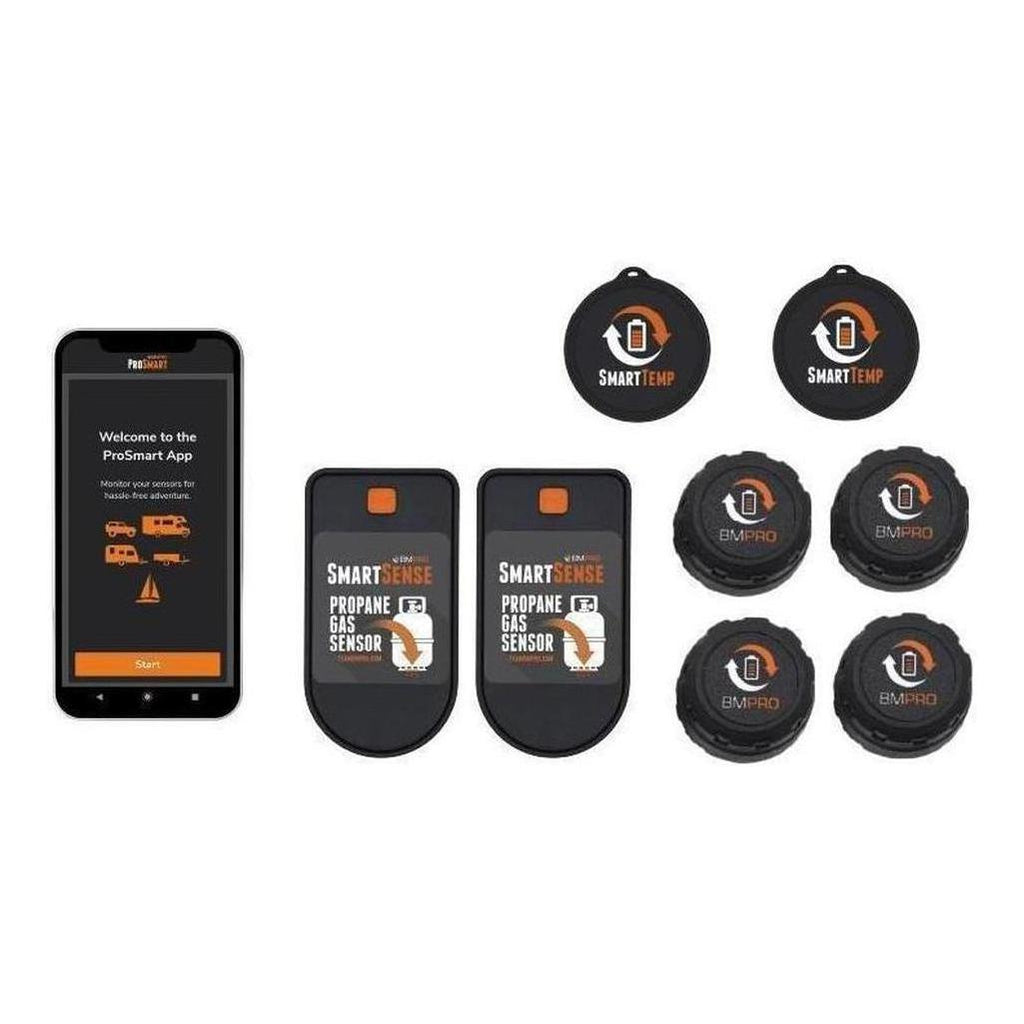

2 x Temperature sensors SmartTemp 2 x Gas bottle level monitors SmartSense 4 x TPMS SmartPressure
ProSmart Premium – For Serious Adventurers ProSmart Premium is a Bluetooth monitoring system to easily track multiple sensors and parameters on your adventure, giving you a wealth of information for comfort and safe travels.
Monitor water levels in your fresh or grey water tanks, gas levels in your BBQ / propane bottles, tyre pressure (TPMS), temperatures in the fridge, freezer or inside your vehicle, as well as your 12V battery charge, all from an easy-to-use app on your smartphone.
ProSmart Premium includes a SmartLink, a powered node that you can easily install and pair to your phone. It allows you to monitor both your wired and Bluetooth sensors – so you can enjoy off-grid travels independent from the presence of an internet connection.
Installation of the Bluetooth Monitoring System ProSmart Premium To install the ProSmart Premium system, place the SmartLink close to the power source (12V battery), mount it on the wall with 4 screws, connect to the battery with the supplied cables, connect the wired temperature sensor if desired, download the free ProSmart app and pair it with the SmartLink. Pair the sensors via your phone – and you are ready to go!
For water tank monitoring we recommend installing digital water level indicators such as Dippers.
Currently, the following Bluetooth sensors are available:

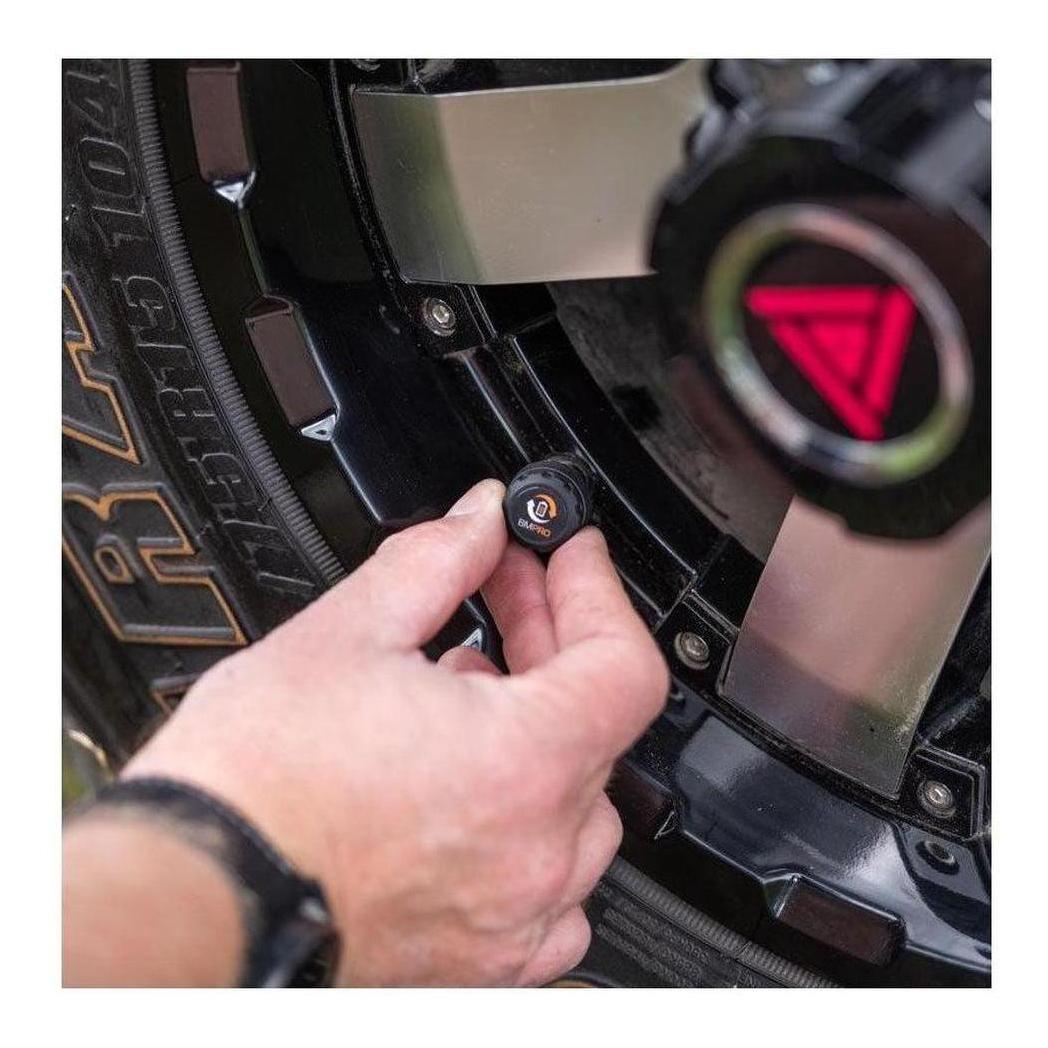

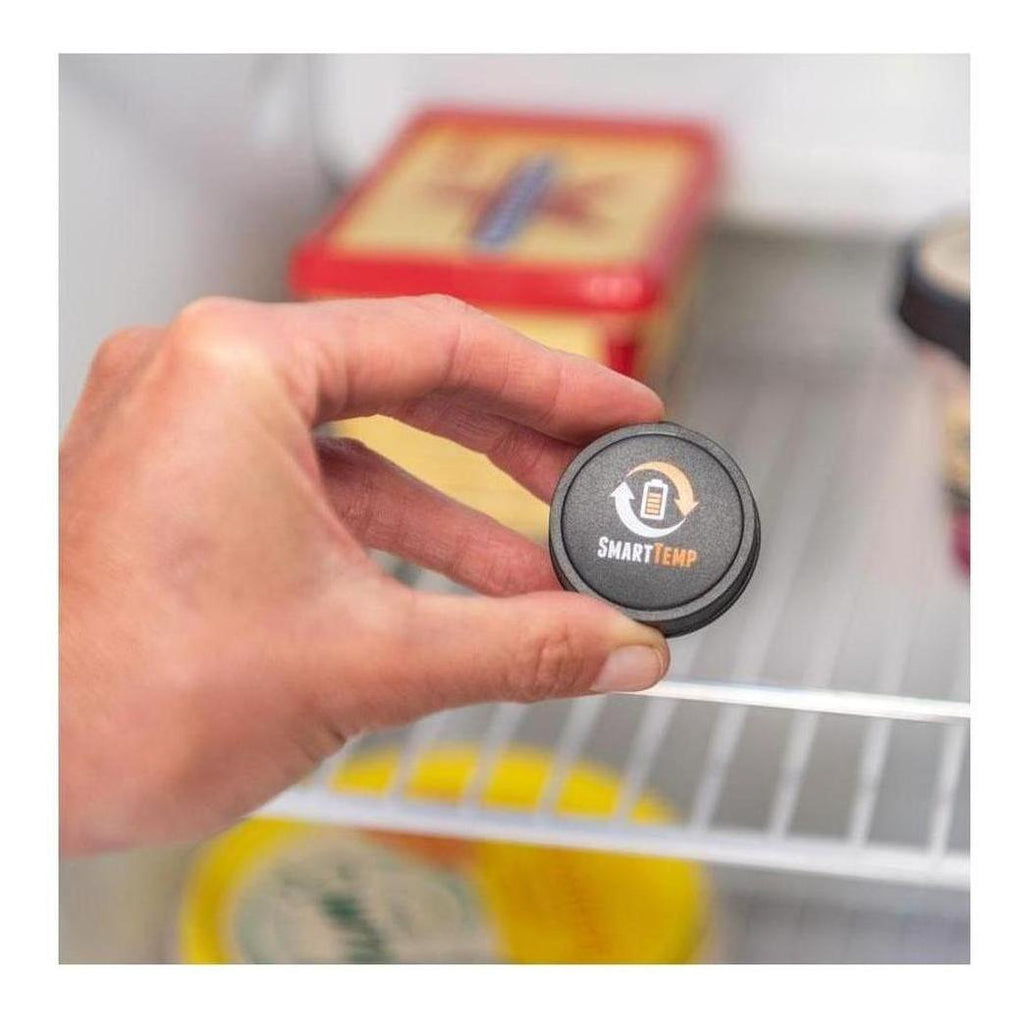

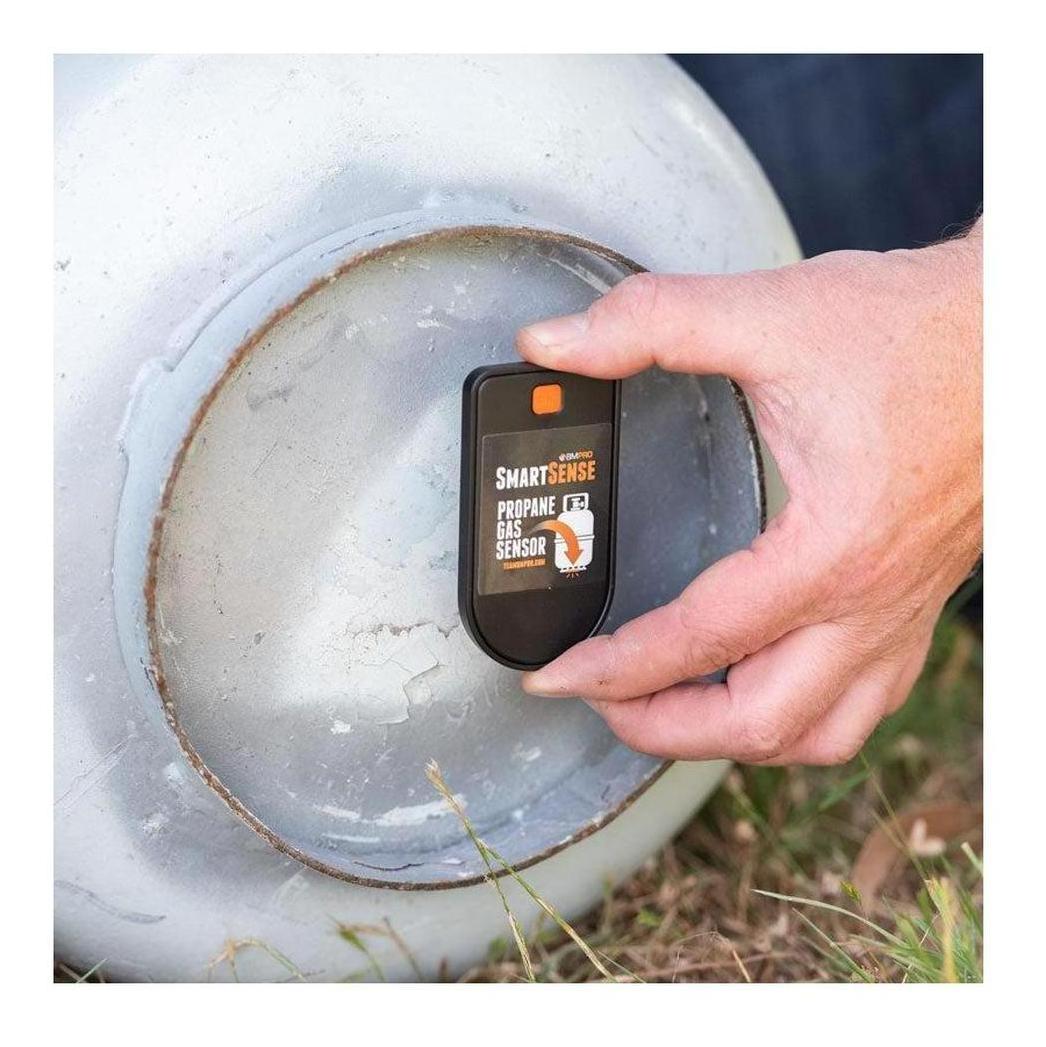

SmartTemp – measures temperature in a range of locations throughout van SmartSense – provides accurate reading of remaining LPG Propane Gas level in bottle SmartPressure – maintains accurate recordings of tyre pressure and internal temperature Compatibility iOS 13 or later Android 8 or later
Specifications
SmartLink
Input Voltage Range
8V – 16V Battery Drain
<20mA Ambient Temperature
-20°C to 60°C (-4°F to 140°F) Dimensions
156mm x 76mm x 23mm
Wired Temperature Sensor
Measurement Range
-20°C to 60°C (-4°F to 140°F)
SmartPressure Sensor
Maximum Operating Pressure
99 PSI (680k kPA) Frequency Range
2402-2480MHz RF Output Power
-34.36dBm (EIRP)
SmartSense Sensor
Measurement Range
1°C to 32°C (33°F to 90°F) Frequency Range
2402-2480 MHz RF Output Power
0.9 mW
SmartTemp Sensor
Operational Temperature
-20°C to 55°C (-4°F to 131°F) Frequency Range
2402-2480MHz RF Output Power
1 mW
FAQ
How many Bluetooth SmartConnect sensors can I have paired to the SmartLink?
Up to 40 SmartConnect sensors can be paired via Bluetooth to the SmartLink at once.
How many mobile devices can I pair to the SmartLink?
Up to four mobile devices can be paired to the SmartLink at once.
