Monitor all connections direct to battery
The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

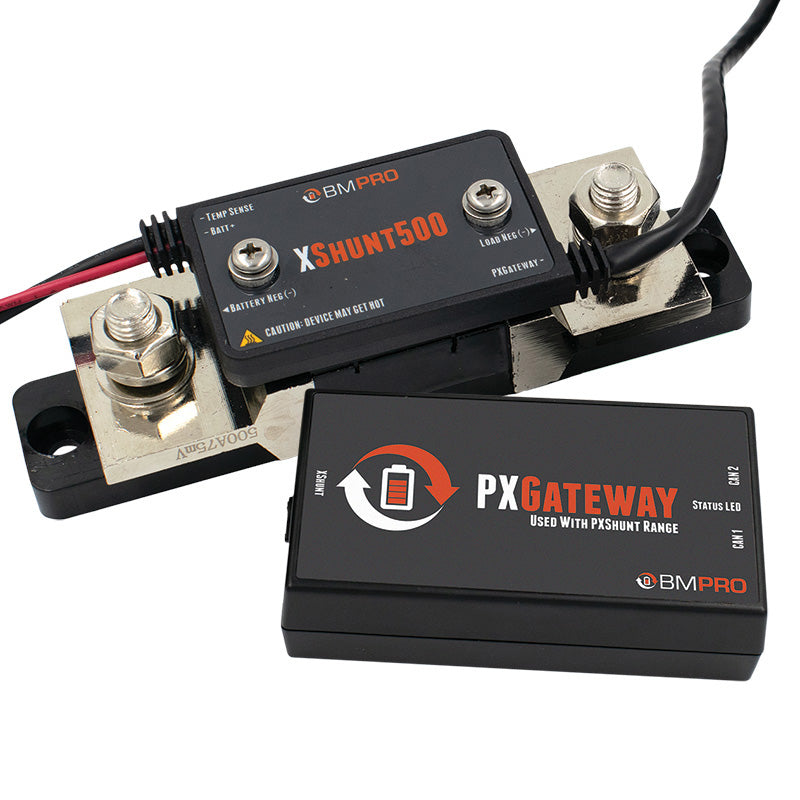

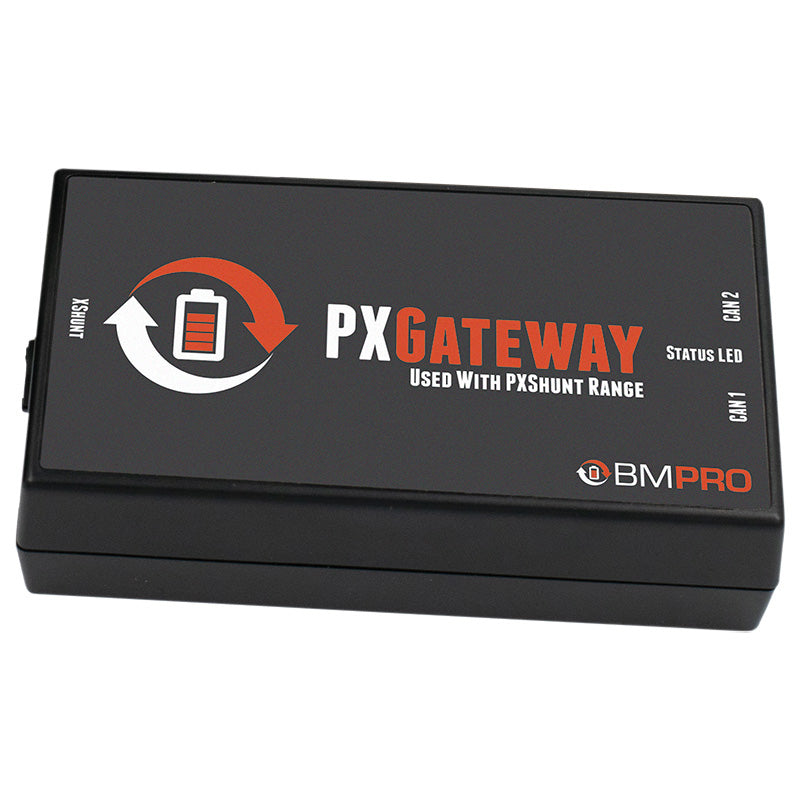

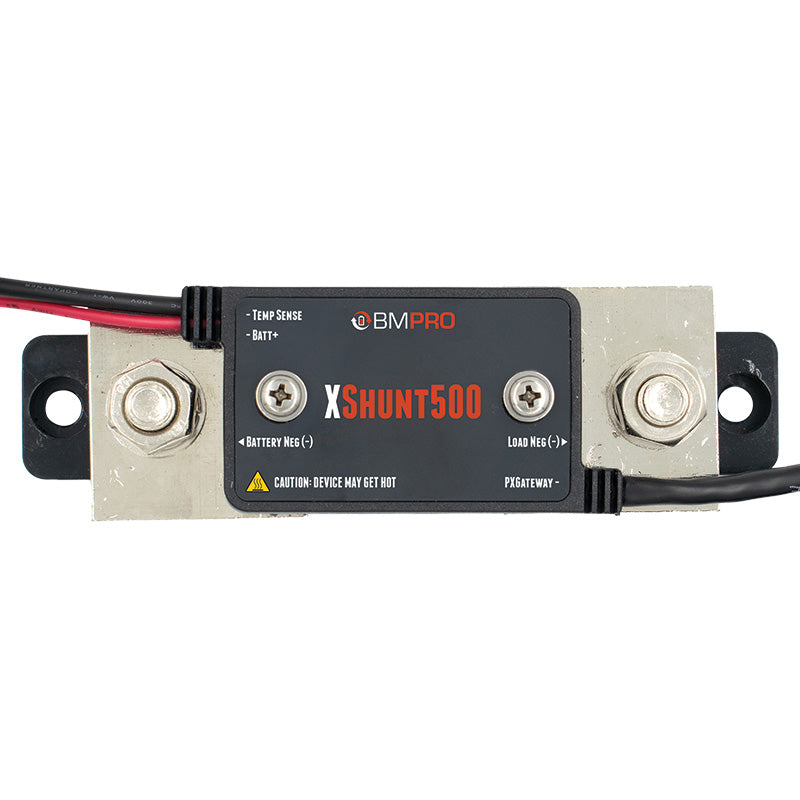

Made up of two components, the XShunt500 and the PXGateway, adding the PXShunt500 to a BMPRO
power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.
The PXShunt500 also provides your BatteryPlus35, ASPero and J35 with additional information on battery usage so your displays such as the Odyssey, Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.
The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200AH in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.
Features
- High current/external charge monitoring
- Supports 12V batteries up to 1200Ah
- Rated for 500A of continuous current
- Easy to read LED status indicators
- Simple Installation
- Compatible with Lead Acid and LiFePO4 deep cycle batteries
Battery properties monitored:
- Voltage
- Current (charging/discharging)
- Energy usage (Ah)
- Temperature
Specifications
Battery Monitoring
- Voltage Range: 8V to 16V
- Voltage Resolution: <20mV
- Current Resolution: <200mA
- Current Range: 500A continuous
- Overload Protection: ± 800A (100ms without damage)
- Temperature Range: -10°C to 50°C (battery terminal)
- Temperature Resolution: 3°C
- Capacity Range: 1200Ah
- Input Voltage: 8V to 16V
- Quiescent Current Drain (average): XShunt500: <10mA; PXGateway: <20mA
- Operating Temperature: -10°C to 50°C
- Humidity Operating: ≤ 90% RH non-condensing
- Dimensions (Approx.): XShunt500: 156 x 46 x 47.5mm; PXGateway: 90 x 52 x 24mm
- Weight (Approx.): XShunt500: 1kg; PXGateway: 150g
- IP Rating: XShunt500: IP54; PXGateway: IP30
