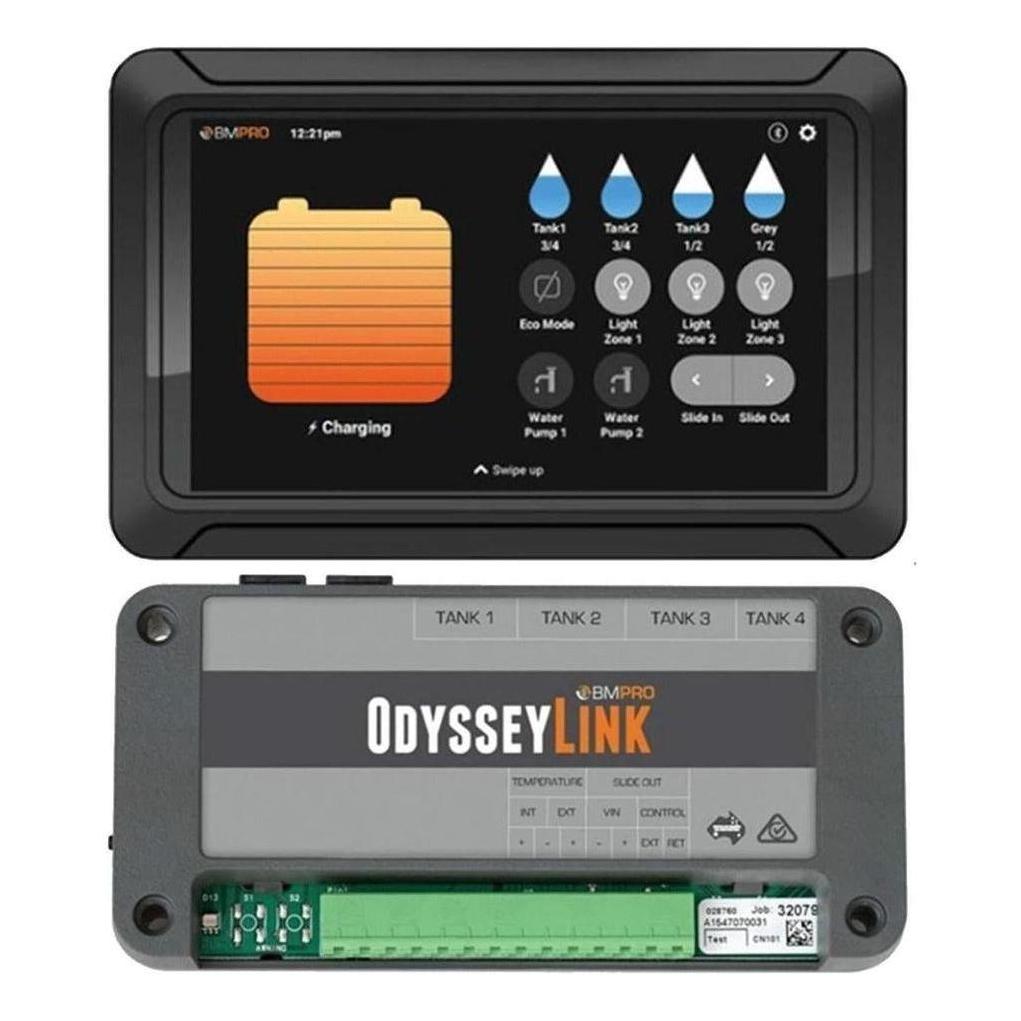

Odyssey Touch Screen Display System
Caravan management from a touch screen display
The BMPRO Odyssey is a caravan management system using a touch screen monitor. An app driven battery monitor and console designed to operate with BMPRO’s BatteryPlus35 via the Odyssey Link.
The BMPRO Odyssey display gives you a level of comfort and certainty about the van’s battery and power consumption:
- Odyssey Display and Odyssey Link Module
- Full visibility and control of the caravan’s battery system & battery status
- Power consumption and available charge sources
- Monitoring of clean and grey water tanks and van temp
- Control of caravan features, including lights, slide-out and water pumps
- Vital information at your fingertips
- Effortless control over caravan power
- Free camp with confidence
- Harness the power of solar and lithium
- Wi-Fi and Bluetooth technology
- Australian designed and made by BMPRO
- Connects to 10 smart connect devices i.e. Pressure, Temp etc.
Specifications
Odyssey control
|
Specification
|
Details
|
|
Input Voltage
|
5V DC
|
|
Input Current
|
3A
|
|
Charger Input Voltage
|
12V
|
|
Communication/Charger Cable
|
USB to Micro-USB
|
|
Dimensions
|
224mm x 144mm x 17.7mm
|
|
Weight
|
0.5kg
|
Odyssey Link
|
Specification
|
Details
|
|
Input Voltage
|
8V – 15V DC
|
|
Battery Drain
|
<21mA
|
|
Ambient Temperature
|
0°C to 50°C
|
|
Cable Length
|
0.5m
|
Notes:
The Bluetooth within the Odyssey system has been tested and proven to work up to 20 metres in a direct line of sight.
- This distance will vary depending upon circumstances and interference such as:
- The wall of a caravan.
- The transmission between the caravan and the tow vehicle.
- Construction methods.
- Placement of the product.
- The Bluetooth receiver of your device (including phones, tablets, smartwatches, etc).
- The environment.
