Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
Electronic resettable fuses
CAN bus connection for BMPRO accessories
Solar and Aux Blending
Auxiliary DC input
Load current limit
Low voltage disconnect
Compatible with lead acid and lithium (LiFePO4) deep-cycle batteries
*Battery chemistry can only be altered or changed with the use of an OdysseyLink104/Odyssey Tablet or Trek Display

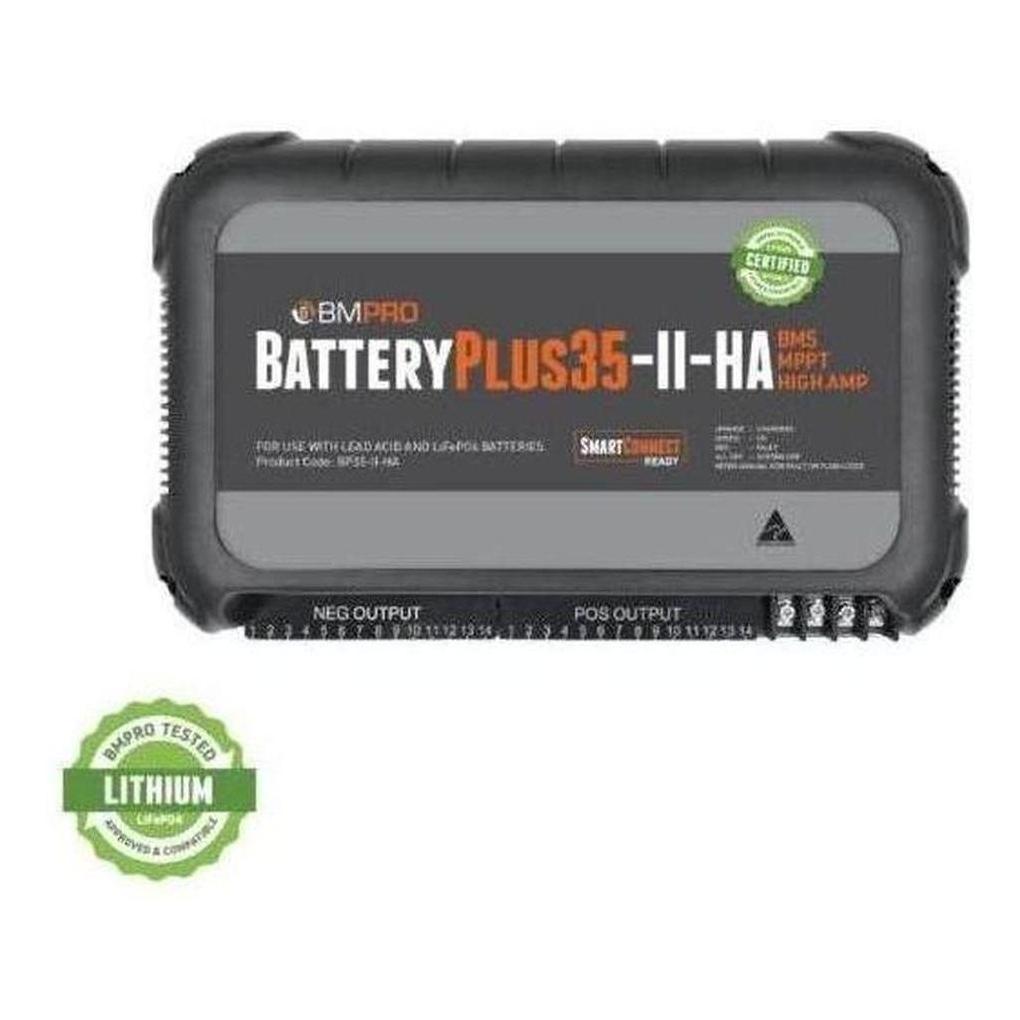

Australian designed and made high amp Power Management System compatible with lead acid and lithium batteries
BatteryPlus35-II-HA is a complete high amp Power Management System designed to support transition of caravans to lithium batteries. This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features.
Connect the unit via CAN bus to the Trek battery monitor or to Odyssey touch screen via the OdysseyLink to monitor the status of your battery and to control your caravan features and functions or use it to connect to the BC300 to monitor high currents via CommLink.
BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.
The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.
Use it to connect, for example:
• Proactive Electronic Stability Control SwayControl • Emergency Trailer Break-Away Safety System TrailSafe • Heaters • Stereo memory
Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries.
Connect solar panels to the Power Management System and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium.
This high amp Power Management System is specially designed to ensure the best performance and longevity of lithium batteries.
Specifications
Parameter
Specification
Input Voltage Range
110V – 240V AC ± 10%, 50-60Hz
Input Surge
<40A (cold start)
Output Current (Load + Battery Current)
35A
Factory Set Voltage (Float Voltage)
13.65V
Output Ripple Voltage
<150mV
Battery Current Limit
max. 30A
Low Voltage Disconnect
Lead-acid: 10.8V ± 0.2V LiFePO4: 12.0V ± 0.2V
Battery Connect after LVD
Lead-acid: 12.8V ± 0.2V LiFePO4: 13.8V ± 0.2V
Battery Drain (when in Storage Mode)
<15mA
AC/DC Efficiency
>83%
Cooling Fan
Digitally controlled
Maximum Solar Input
800W
Solar Output Current
30A (nominal)
Solar Start Voltage
17.5V
Solar Input Voltage (After Start-up)
15V – 25V
Ambient Temperature
0°C to 50°C
Communication
CAN Bus
Dimensions
327mm x 207mm x 82mm
Weight
2kg
Standards
Safety: AS/NZS 60335.2.29, UL 458, UL 1741 EMC: AS/NZS CISPR 32, FCC Part 15 Approvals: RCM, UL, FCC

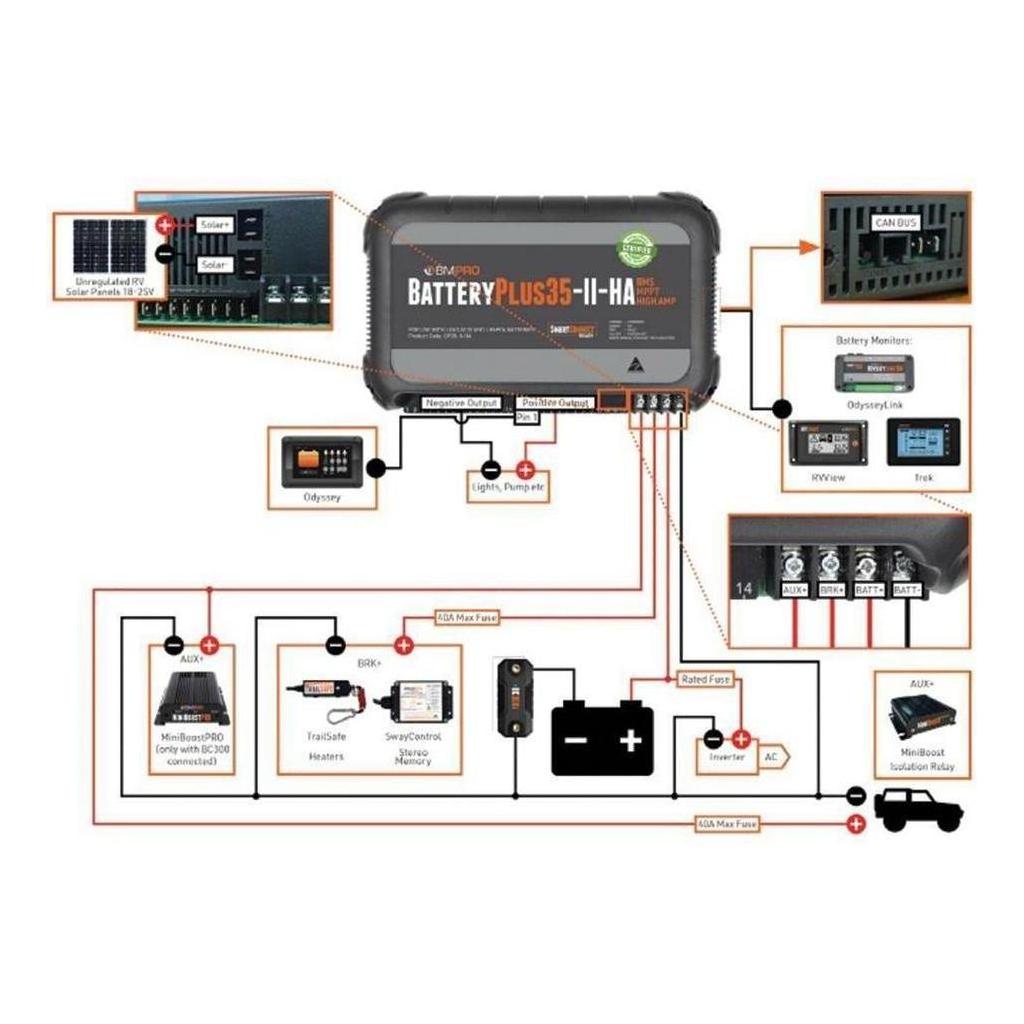

The positive and negative leads from your solar panels are connected directly to the solar input and output on the solar distribution board. The solar regulator is inbuilt for this.
