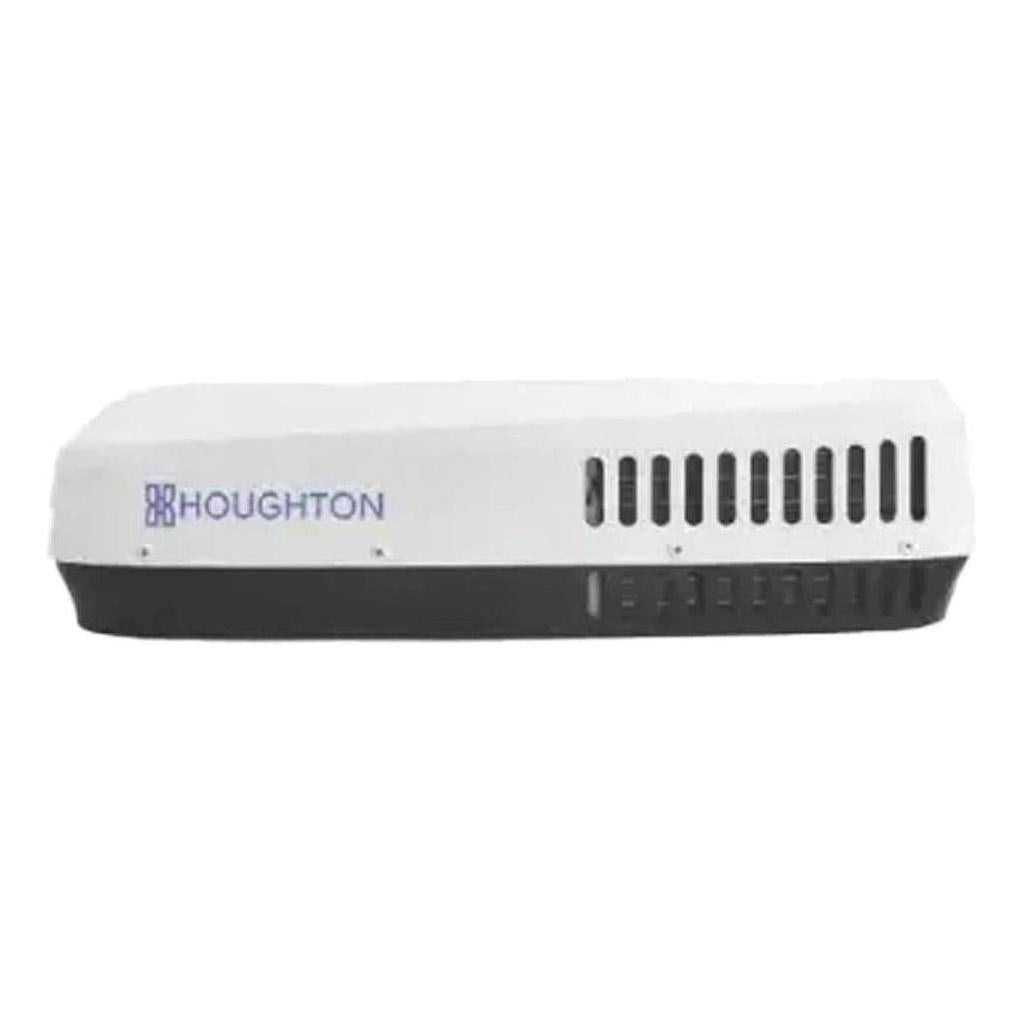

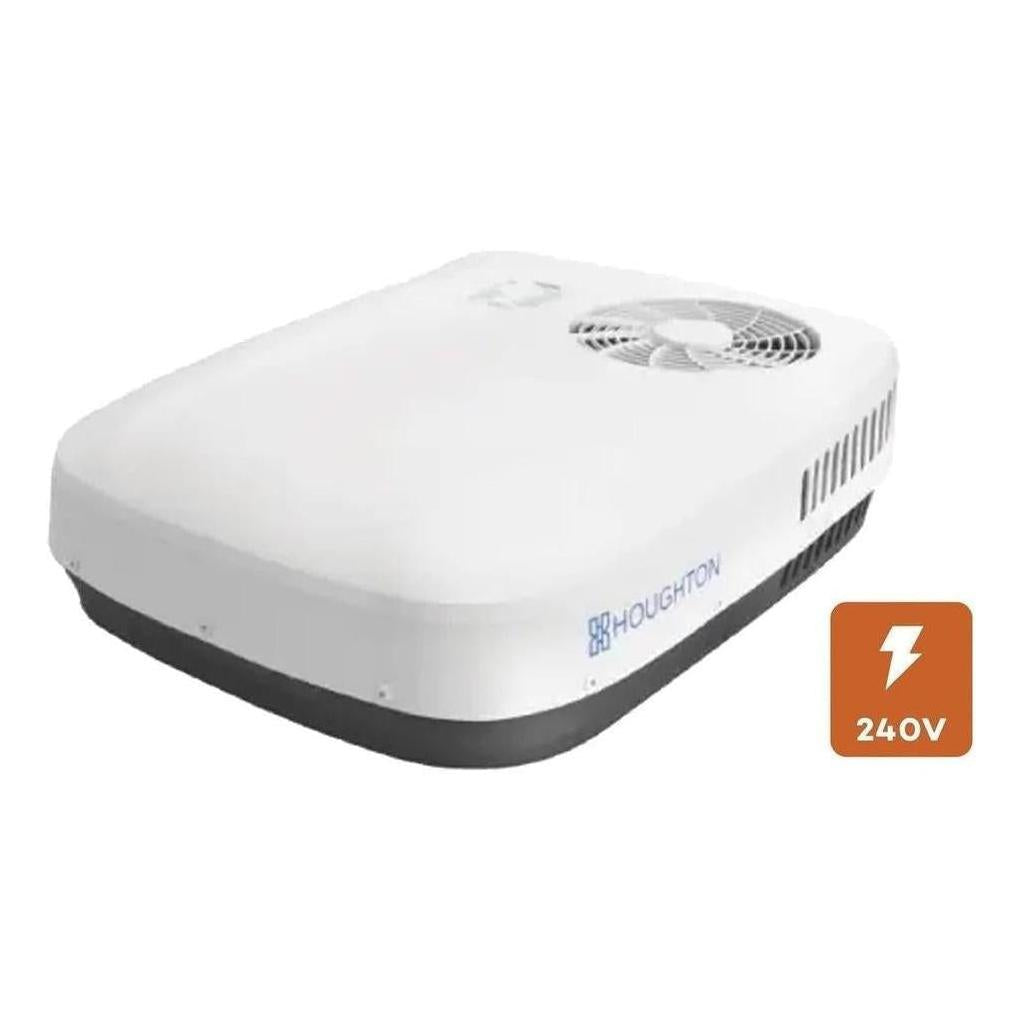

The Houghton Belaire HB2800V is a low profile, light & powerful unit with new inverter technology. At only 855mm in length it provides outstanding performance & greater flexibility for hatches, solar panels & other equipment without sacrificing year-round comfort. True 'soft start' performance. Excellent performance with generator & battery/ inverter power systems.
FEATURES
• Low profile, compact, light and powerful unit, only 855mm long, 657mm wide and 215mm height. Total installed weight is 34.9kg.
• Double rotor variable speed compressor with low start current, low vibration and almost no start/stop noise. PID inverter technology ensures temperature accuracy at ±0.5°C giving the user full control over their comfort.
• Digital Inverter control eliminates in-rush current spikes on startup.
• Innovative high efficiency and low noise air duct system ensures higher air flow at a lower noise level.
• Integrated ECO mode with two different power input levels allow operation at 70% and 40% power demand to stretch your battery life even further. Also assists with operation on smaller generators or heavily loaded power supplies.

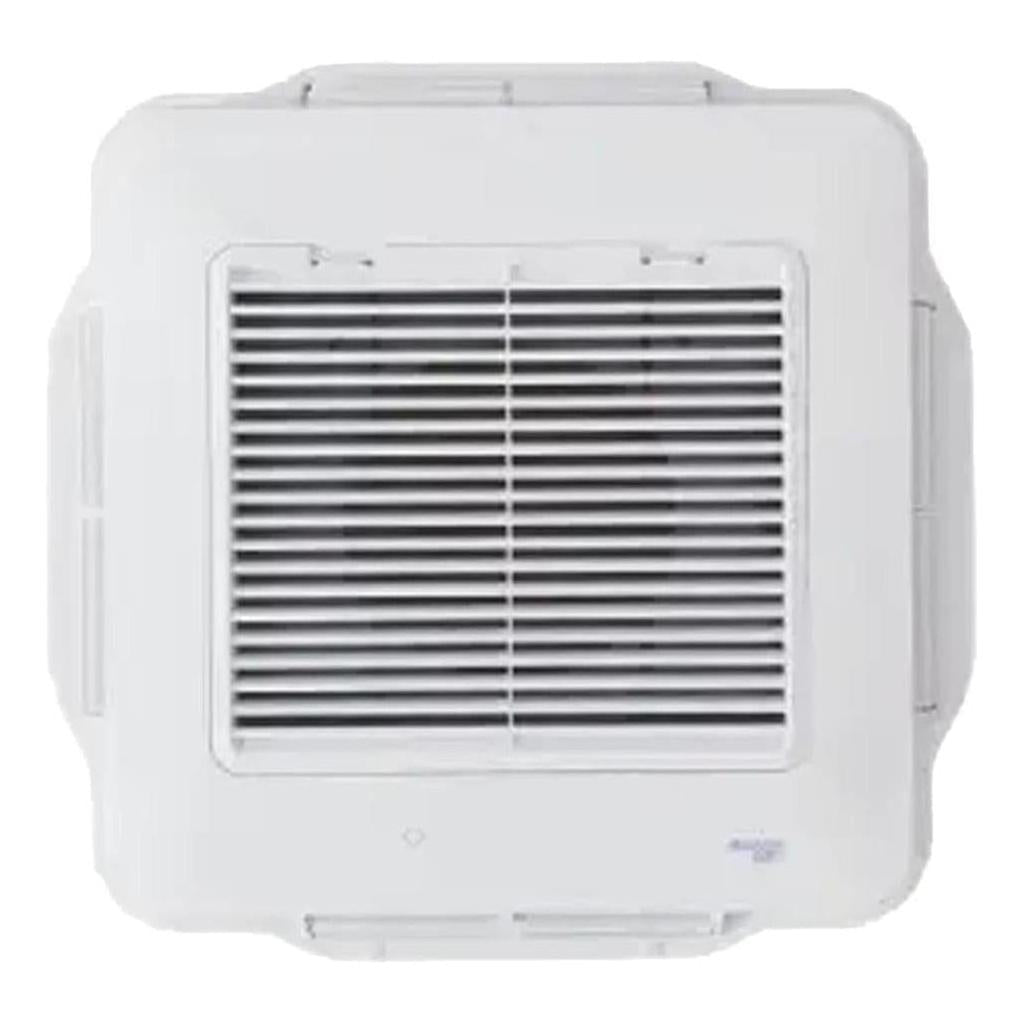

• The 4-way outlet from the interior unit allows air flow to be directed all throughout the living space.
• 4 fan speeds to choose from Turbo for powerful heating or cooling, Low for quiet nighttime use.
• Excellent reverse cycle performance allows the unit to operate in temperatures as low as -5°C and up to +50°C
SPECIFICATIONS
Power supply 1 PH/230~240V/50HZ
Cooling capacity 2800W
Power input cooling 1100W
Current cooling 4.8 A
Heating capacity 2600W
Power input heating 1100W
Current heating 4.8 A
Maximum input power 1300W
Maximum current 5.8 A
Weight of outdoor unit 31.5kg
Weight of plenum Installation opening (mm) 360 x 360 / 400 x 400 - Optional adapter required for 400 x 400
Outdoor unit dimension (mm) 855L x 657W x 215H
Plenum dimension (mm) 575L x 556W x 49H
Warranty 2 Years from purchase
Installation
Installation is recommended to be installed by a professional. If assistance is required, please feel free to contact us so we can recommend and direct you to our friendly service agent.
