Houghton Belaire HB2800-48V DC AEOLUS Air Conditioner Inc Roof Section & Plenum

The Aeolus HB2800-48VDC rooftop variable speed air conditioners. The compressor, indoor fan and outdoor fan are all high efficiency DC motors. The Aeolus HB2800DC make off grid camping a reality. Using 48V DC direct from your batteries potentially eliminates a large DC to AC inverter allowing a lower cost and higher efficiency power system.

FEATURES

• High efficiency DC motors extend precious battery capacity. Excellent refrigeration performance gives you more cooling for less power. Stay off grid longer.
• Double rotor, variable speed compressor with low start current, low vibration and almost no start/stop noise. True soft-start performance.
• Innovative, high efficiency and low noise air duct system ensures better performance on air flow and noise level.
• Advanced micro controller takes care of compressor and ensures temperature accuracy at £0.5°C.
• The 4-way outlet from the interior unit allow air flow to be directed throughout the living space.
• Excellent reverse cycle performance allows the unit
to operate in temperatures as low as -5°C and up to +50°C.

HB2800DC

SPECIFICATIONS
Power supply 48 (45 - 60) VDC
Cooling capacity 2600(1700-2800) W
Power input cooling 1200 (790-1260) W
Current cooling 24.8 (16.5-26.2) A
Heating capacity 2400 (1600-2500 )W
Power input heating 1 050 (660-1120) W
Current heating 21.8 (13.8-23.3) A
Maximum input power 1450W
Maximum current 30.3A
Weight of outdoor unit 31.5 kg
Weight of plenum 3.4kg
Installation opening (mm) 360x360 I 400x400 - Optional adapter required

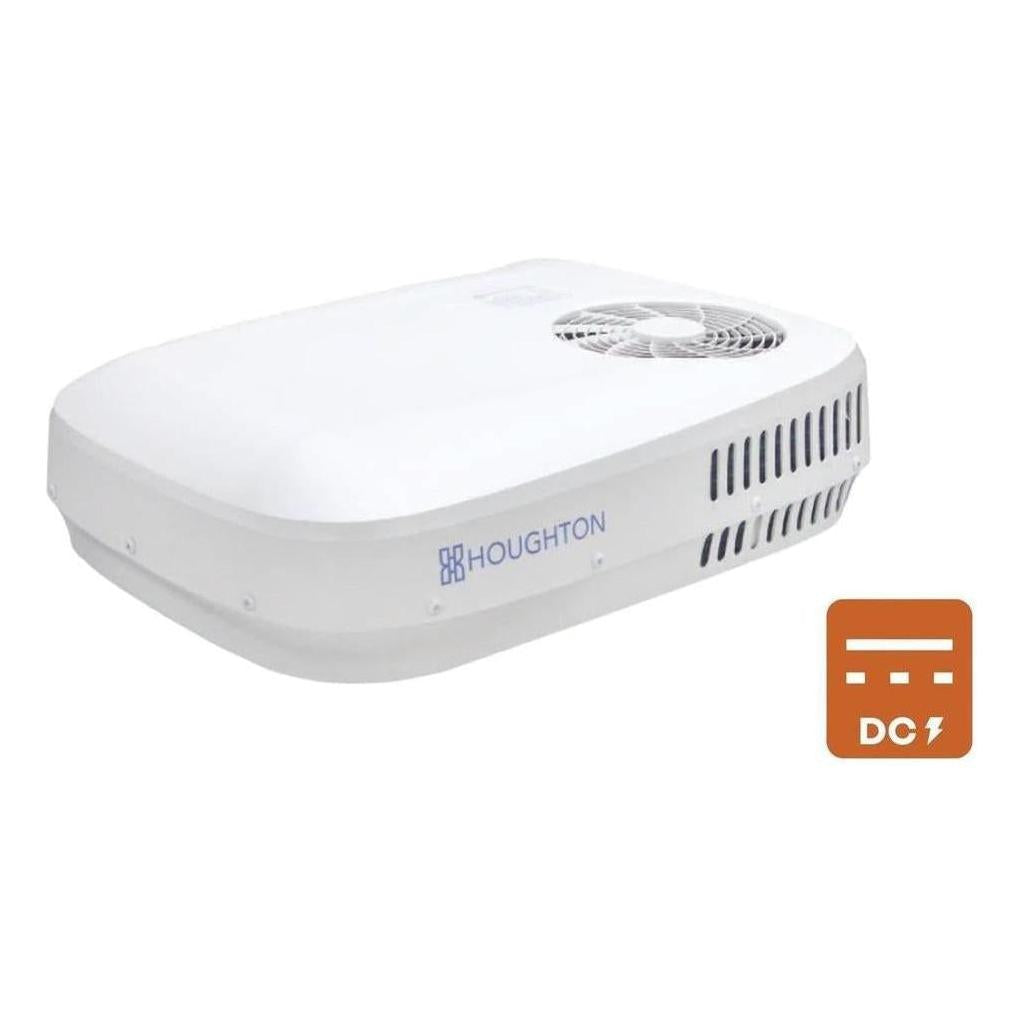

Outdoor unit dimension (mm) 855Lx 657Wx 215H

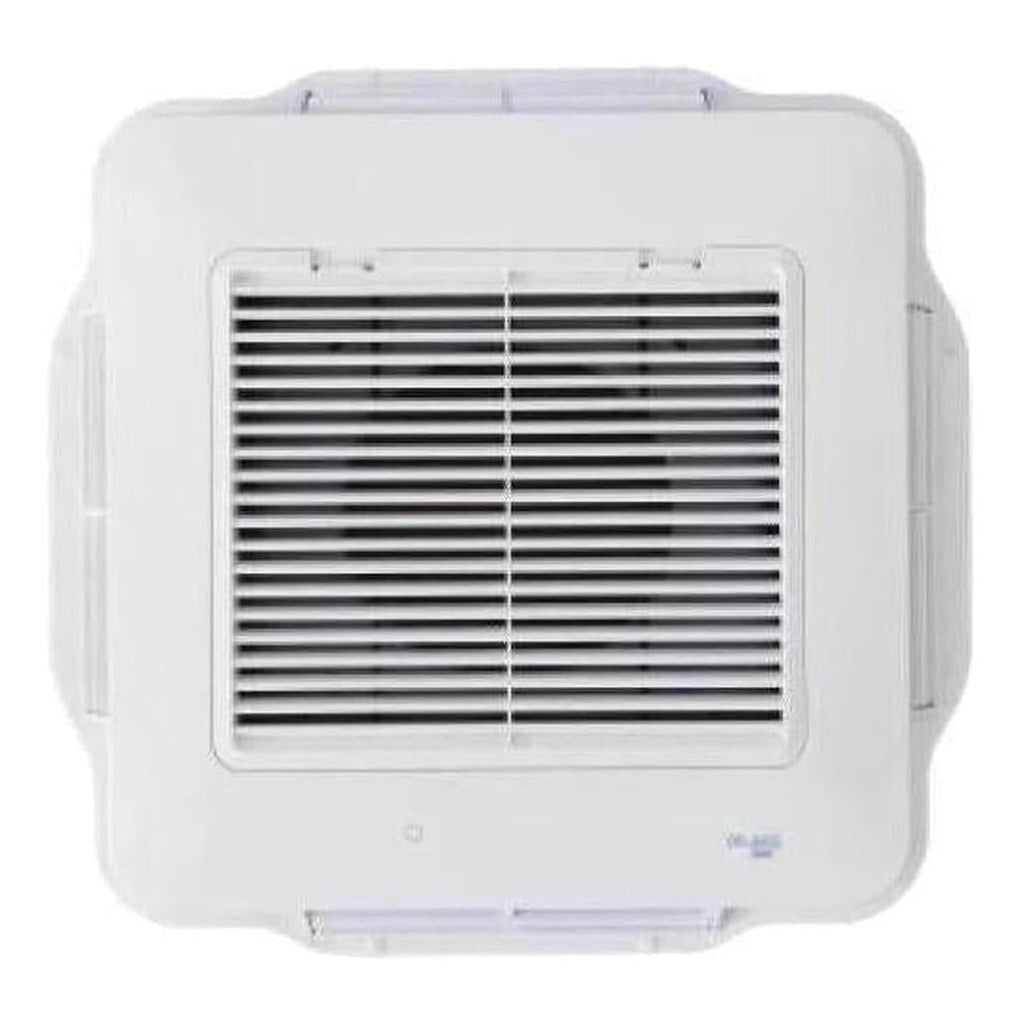

Plenum dimension (mm) 575Lx 556Wx 49H
Warranty 2 Years from purchase

Installation

Installation is recommended to be installed by a professional. If assistance is required, please feel free to contact us so we can recommend and direct you to our friendly service agent.
