AUFOCUS Diesel Heater Kit - Gen 4 Kit 2Kw MZ

2kW MZ Bluetooth - Gen 4 Kit

This Premium Quality AU Focus Diesel heater is backed by a 24 month warranty.

This is the most popular AU Focus diesel heater and used by over 90 caravan manufacturers, hundreds of caravan dealers and service centres across the country.

Features:

• RCM and EMC Certification.
• Three modes: 1. Fan only, 2. Manual Heat Mode 1 - 10, 3. Smart mode - The heater stops heating and burning fuel once it arrives at a set temperature. If the temperature then drops 2 degrees celsius the heater resumes.
• Small and compact design allowing for a space-saving installation.
• Easy to use LCD panel with remote control also features, Bluetooth connectivity and app to control from your phone.
• Sensors on both the control board and fan for additional safety protection.
• High and Low Voltage & current protection.
• Fast heat up time and maintains a consistent temperature.
• Auto cool down process when powered off.
• Low fuel consumption.

Specifications:

• Power: 1kW - 2kW adjustable.
• Fuel: Diesel only.
• Rated Voltage: DC 12V
• Fuel Consumption (L/h): 0.1-0.3
• Working Temperature: -400~+500

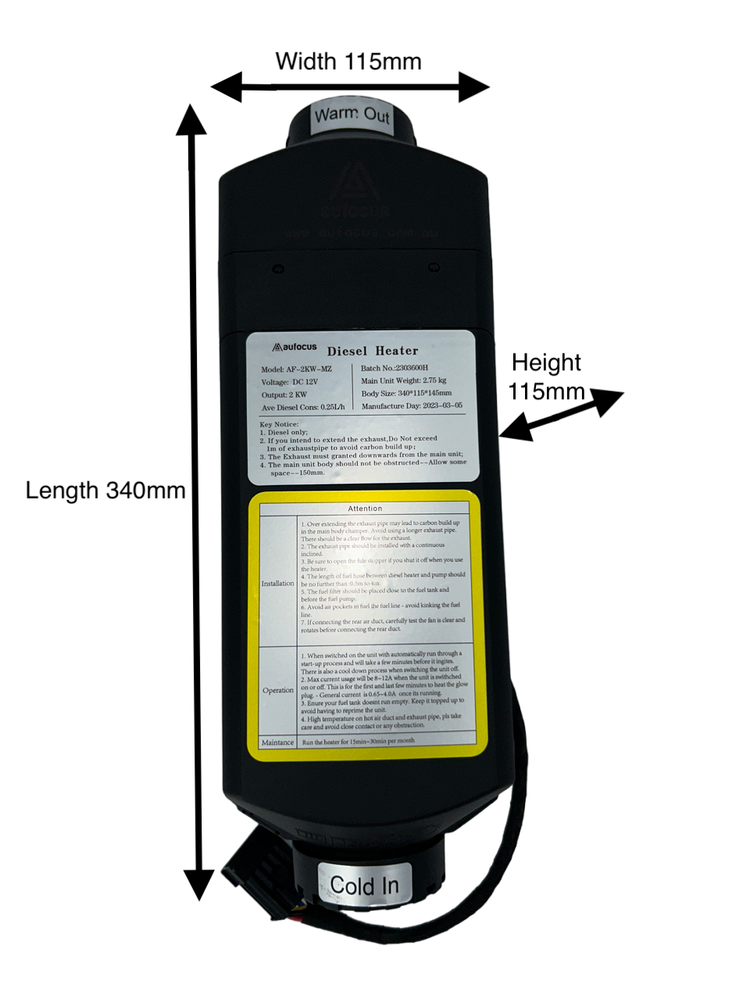

• Main Unit Size: Length 340mm x Width 115mm x Height 115mm.

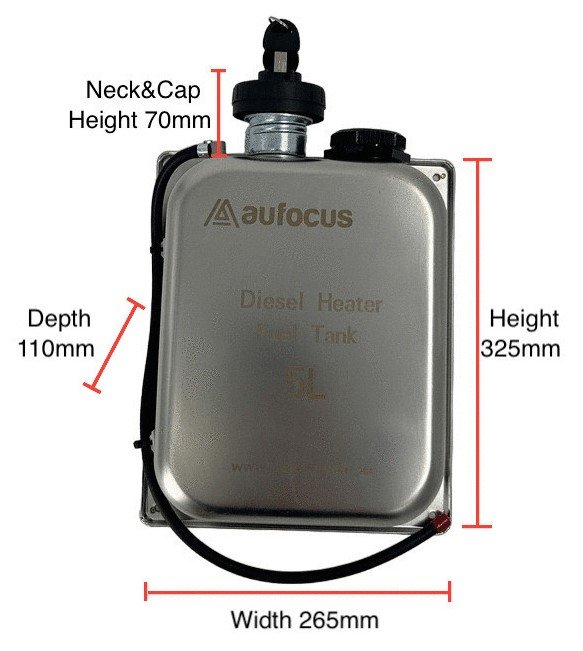

• Fuel Tank Size: Length 265mm x Height 325mm x Depth 110mm.
• Fuel Neck & Cap Height 70mm.
• Black flame retardant plastic casing.

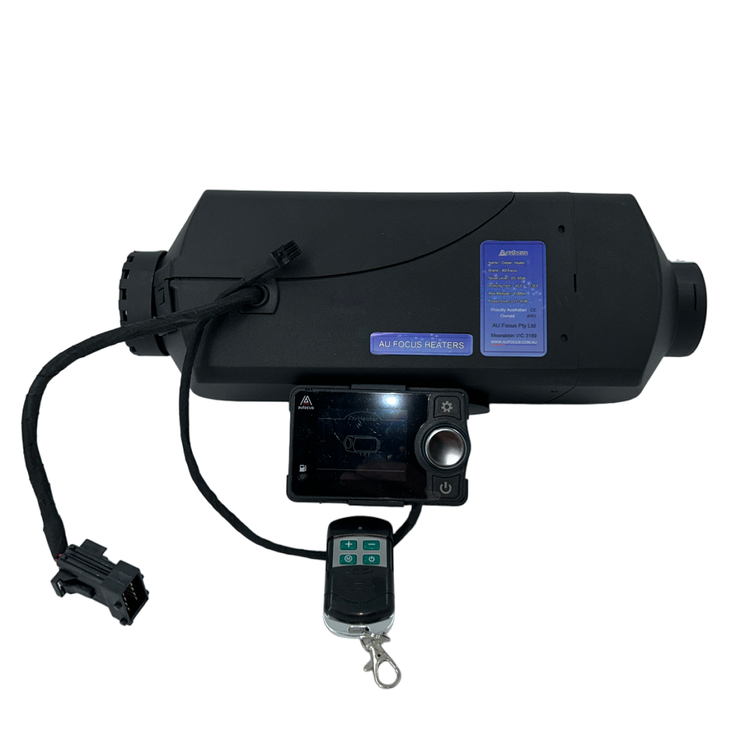

• LCD Control Panel - Also displays error codes for easy troubleshooting if required.

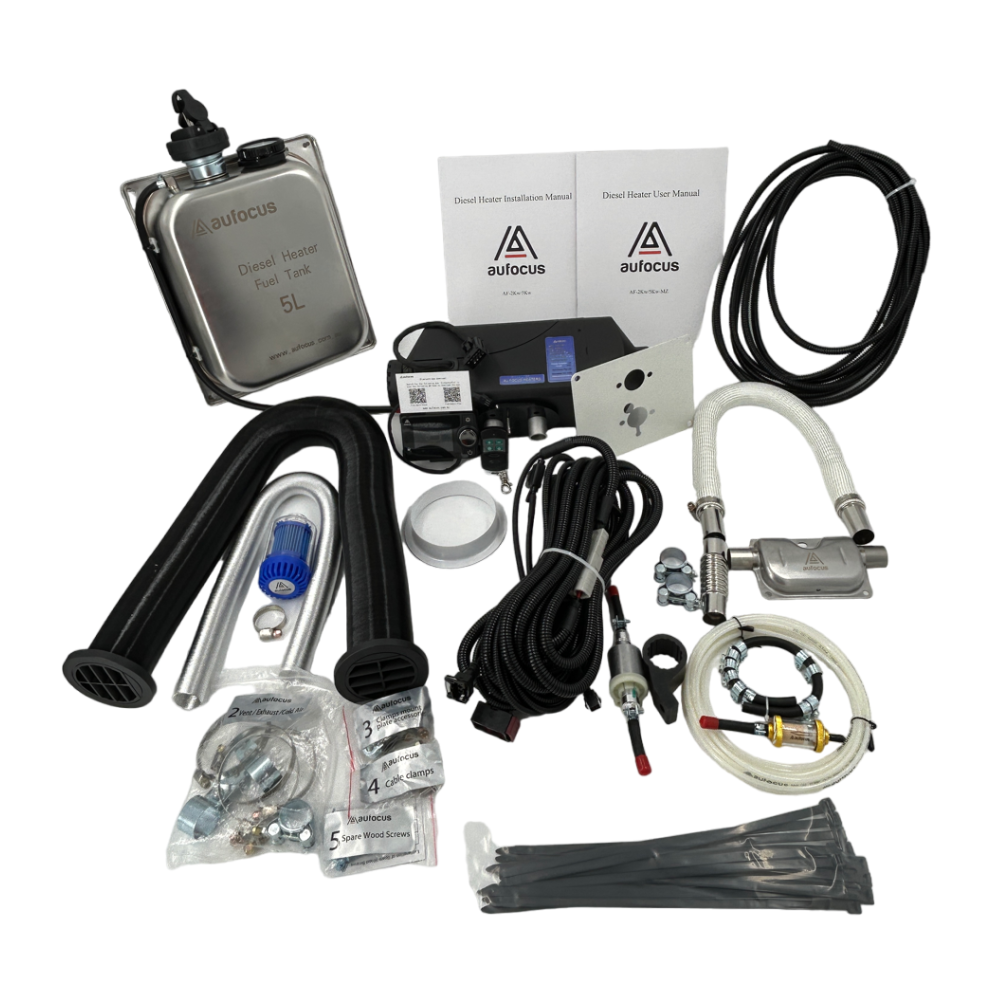

What’s Included:

• Easy to follow DIY Installation manual.
• Easy to read User Manual.

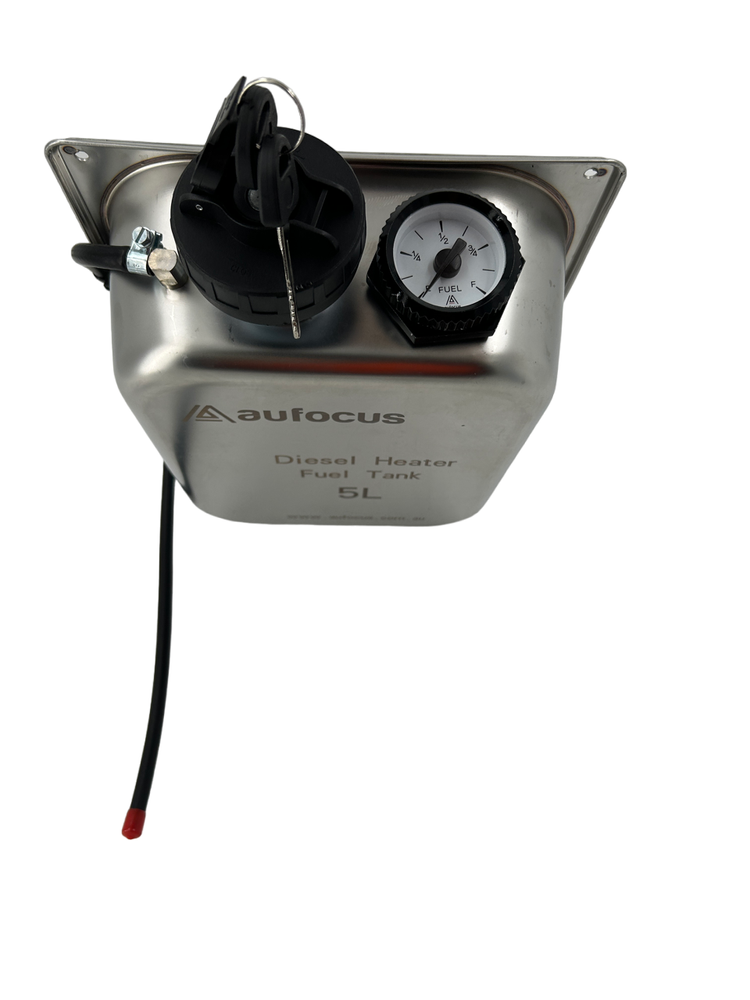

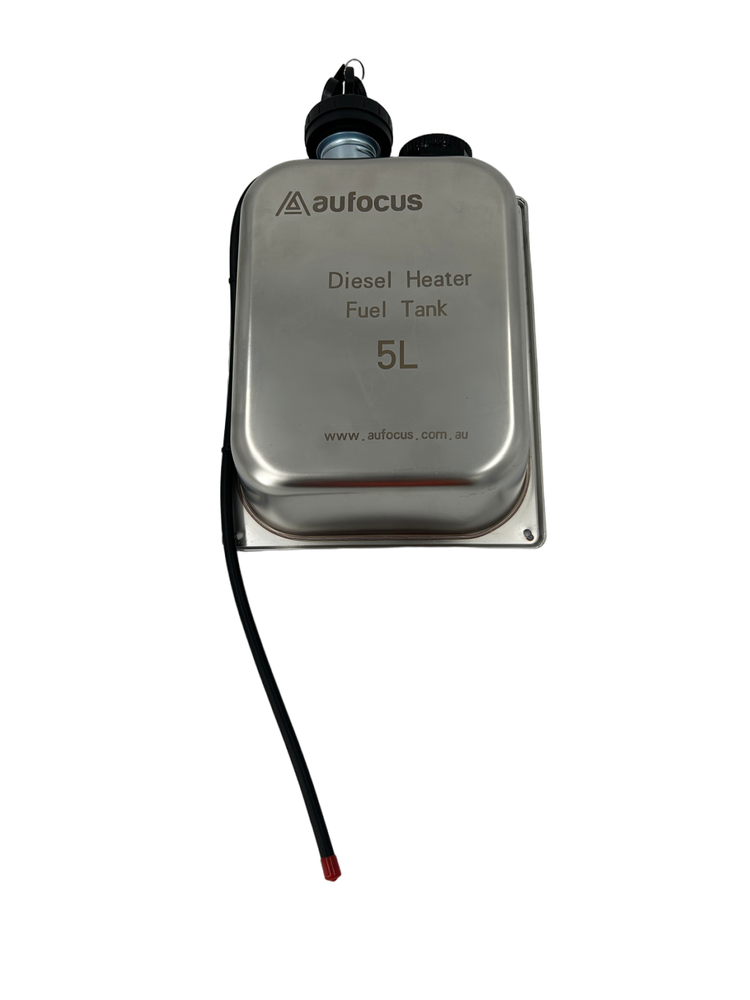

• 5L Stainless Steel (304 grade) Fuel Tank with top mounted dial fuel level gauge, fuel pickup and lockable fuel cap.

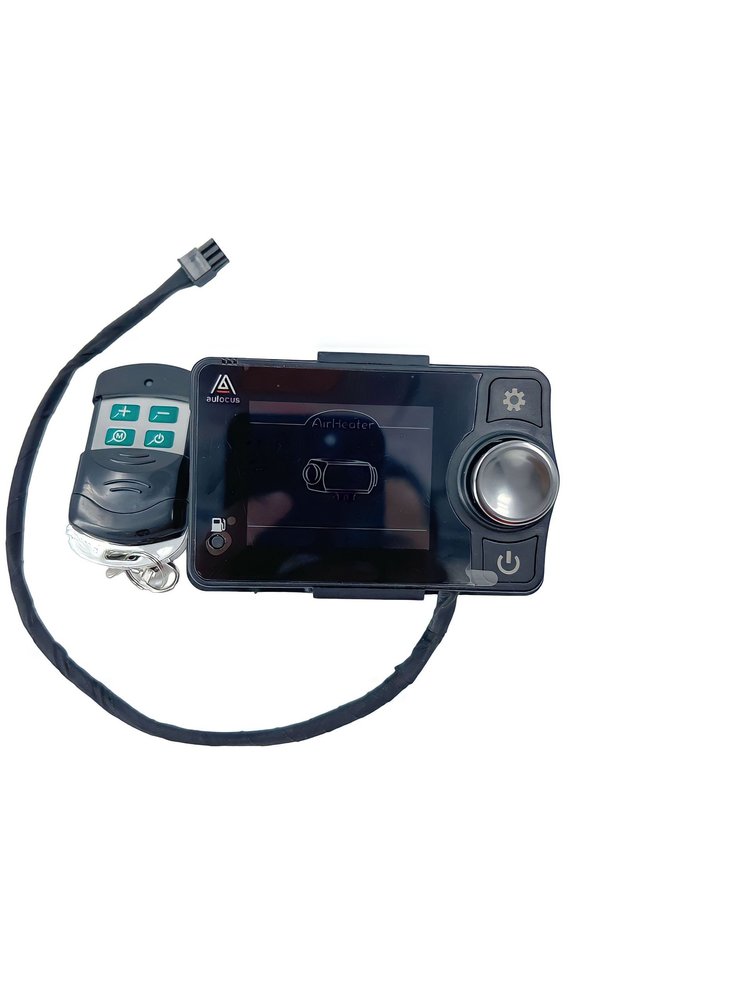

• LCD panel with remote control plus easy to download app to control the heater from your mobile phone.
• Solidly constructed with high grade heat resistant hard casing.

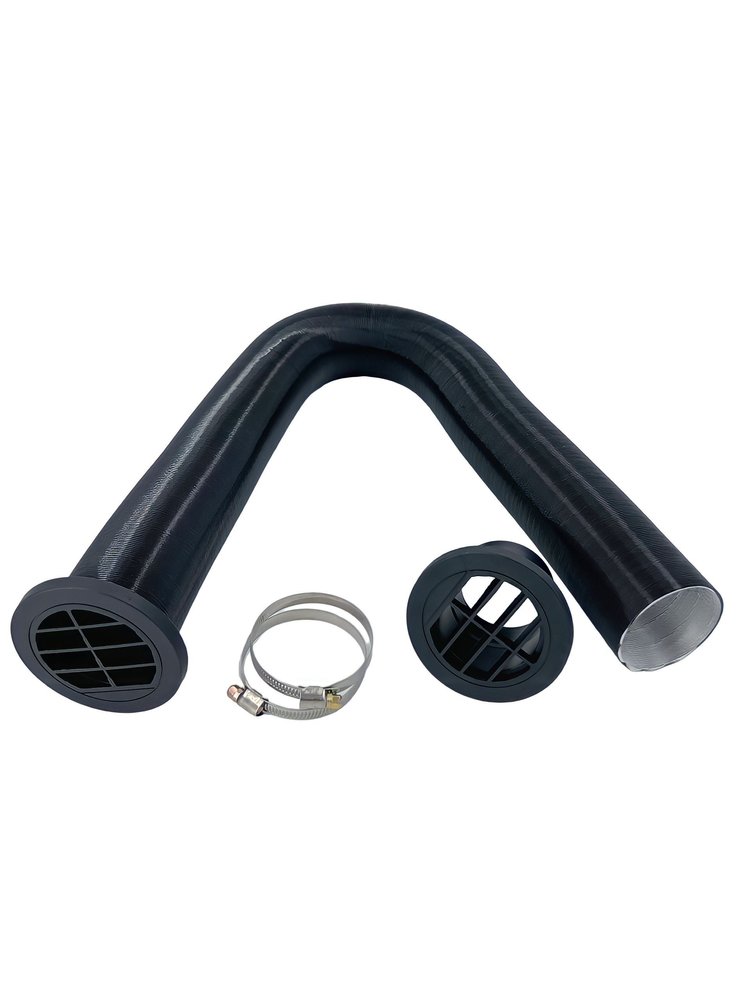

• 2 x Directional Flat vents.

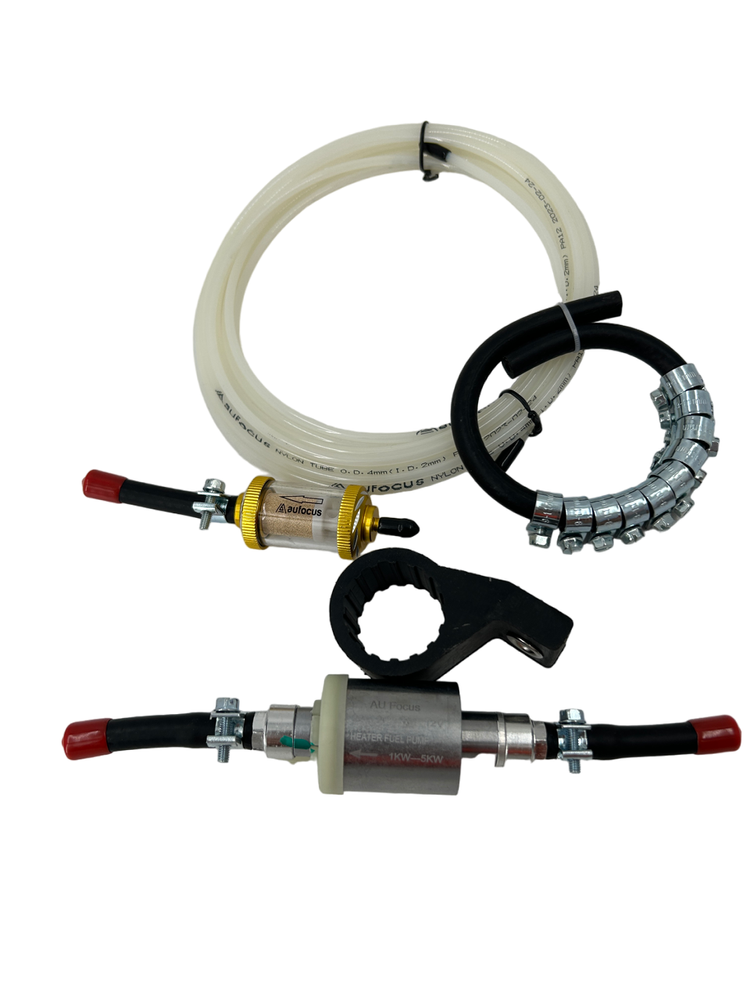

• Super quiet heavy duty fuel pump.
• PA66 hard nylon fuel line 6m (4mm diameter, 1mm wall thickness), with black rubber connectors and heavy duty conduit.

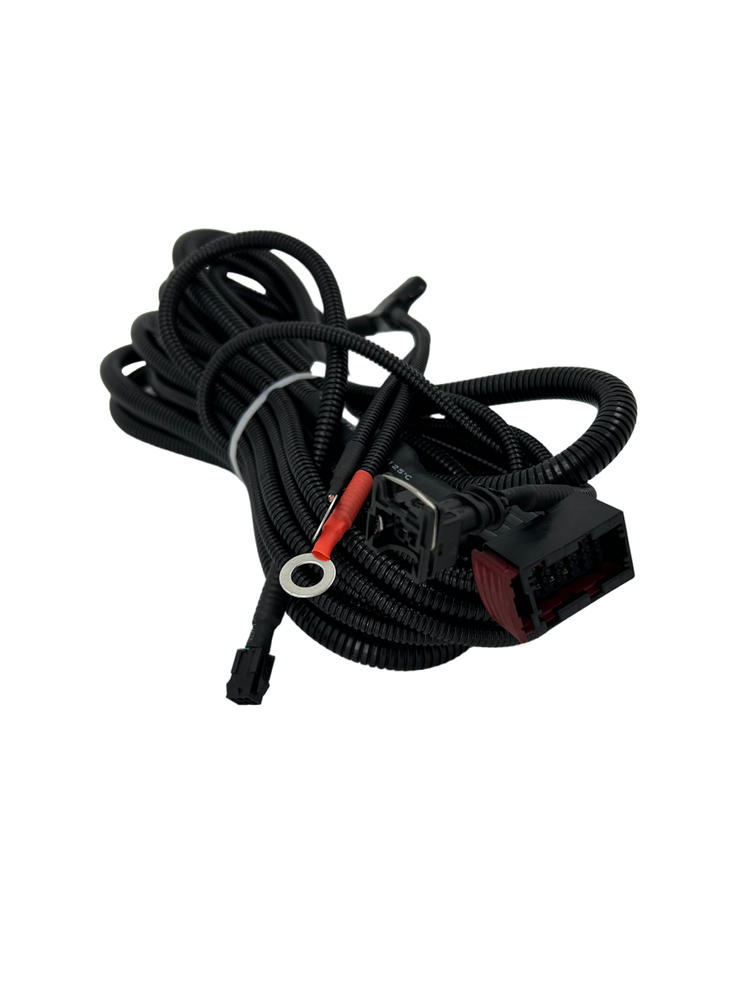

• Unique design wiring harness. The wiring harness includes a 5m power cable (2.5mm core wiring), a 2.5m LCD controller cable and a 2.5m pump power cable. All cables are in flame retardant conduit and Anderson Plugs for easy installation (plug and play).

Quality Air Filter

• Premium reusable fuel filter made with alloy top and base.

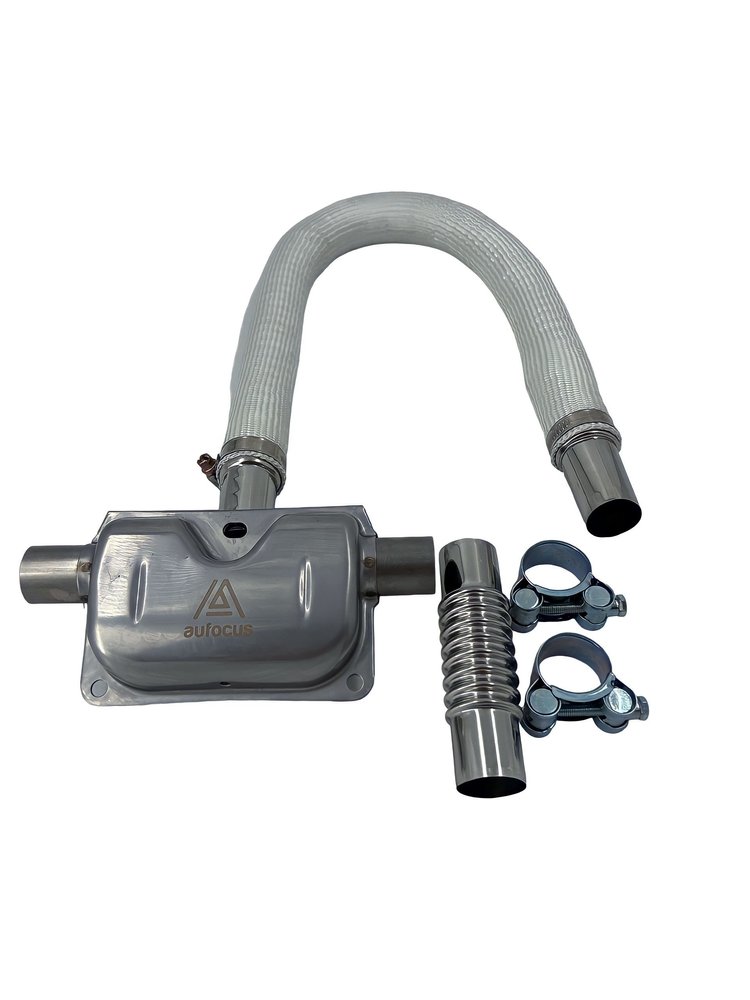

• High grade exhaust with flame retardant sleeve, a heavy duty baffled muffler and exhaust tip.

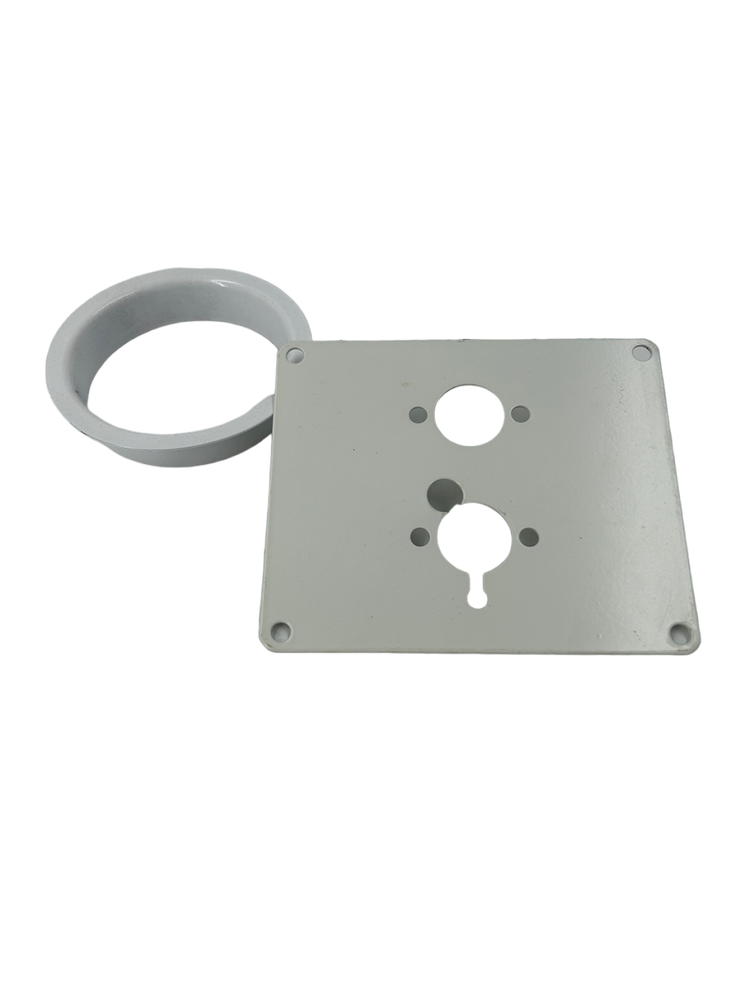

• Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
• Thicker durable plastic cable ties.

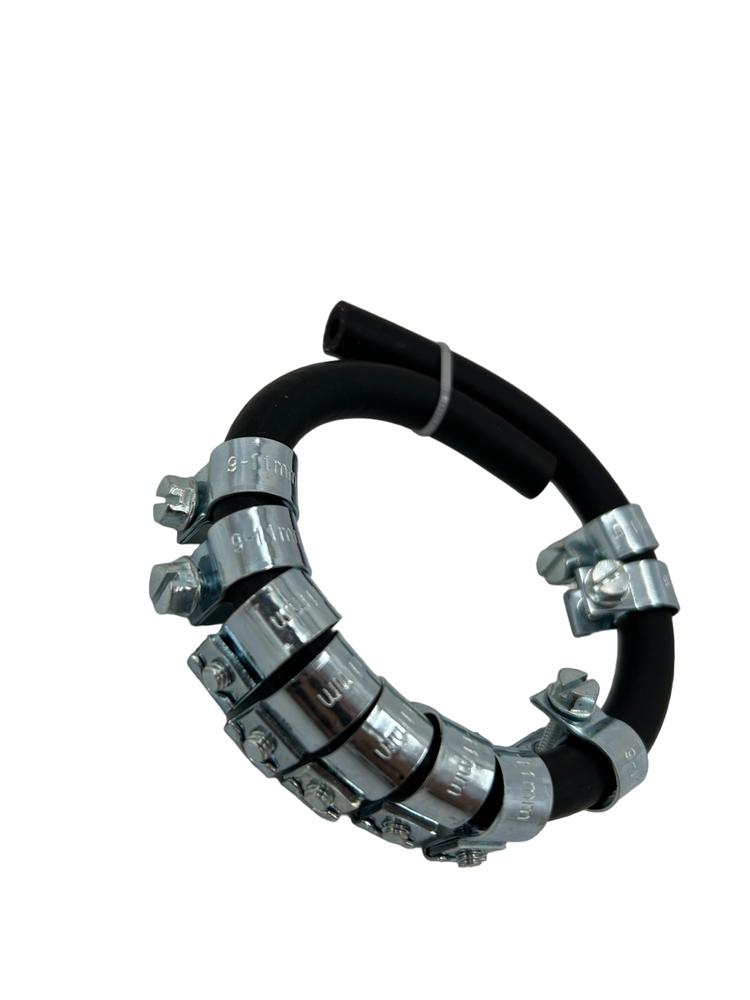

• High quality clamps and other accessories required to complete the installation.
• Power (5~35w/h), peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.
