If you’re planning off-grid camping, a DC-DC charger by ATEM POWER will be your perfect companion for a dual battery setup when you cannot access the main power. This device, which is designed to do a full charge cycle with the ability to choose either Lead Acid, AGM, Gel, calcium, or LiFePO4 batteries and apply the suitable charging profile to prolong their lifespan, also incorporates Re-selection Ready mechanism that allows you to re-select the battery during charging by long pressing “POWER”. And it can be connected indefinitely when you’re all set up!
This ATEM POWER DC-DC charger is also a fully multi-input charger that is able to charge from either an alternator to get the best possible rate of flow into your secondary battery and keep it up on the drive or via solar power with the built-in MPPT controller for faster charging and reducing the load on your engine! And multiple protections are integrated to keep the battery safe, especially in case of accidental terminal misconnection.

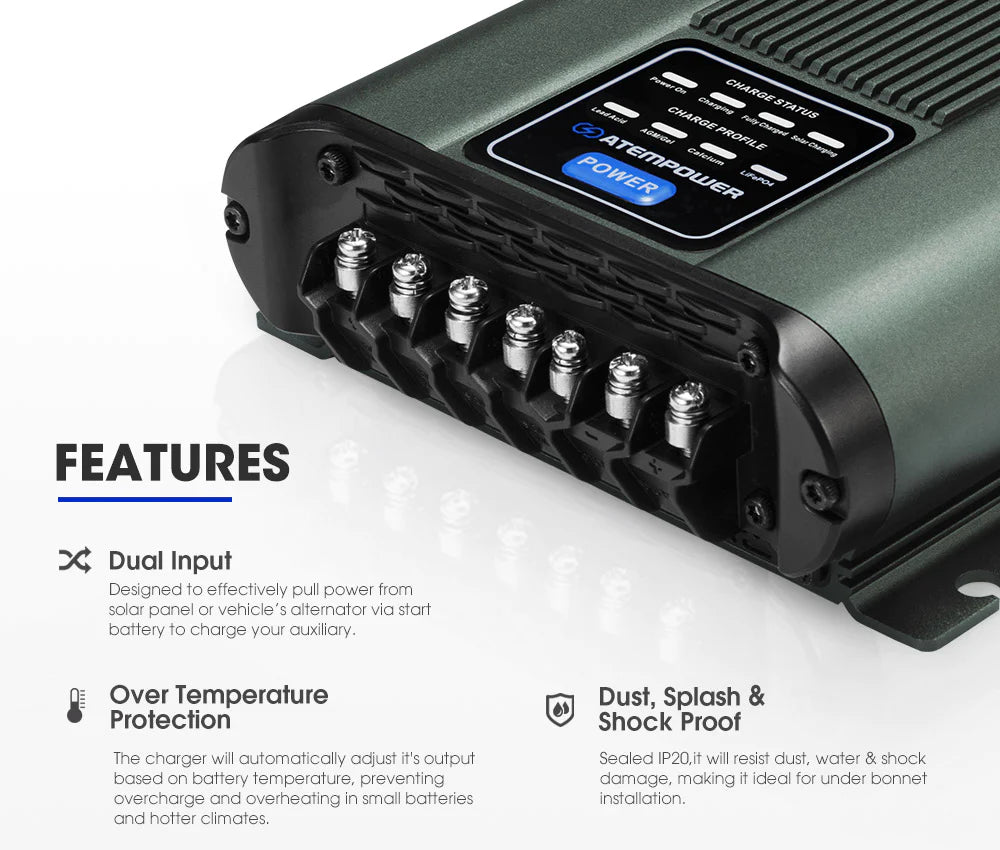

- Dual Input: This Charger is designed to effectively pull power from a solar panel (up to 40A) or vehicle’s alternator to charge your auxiliary battery.

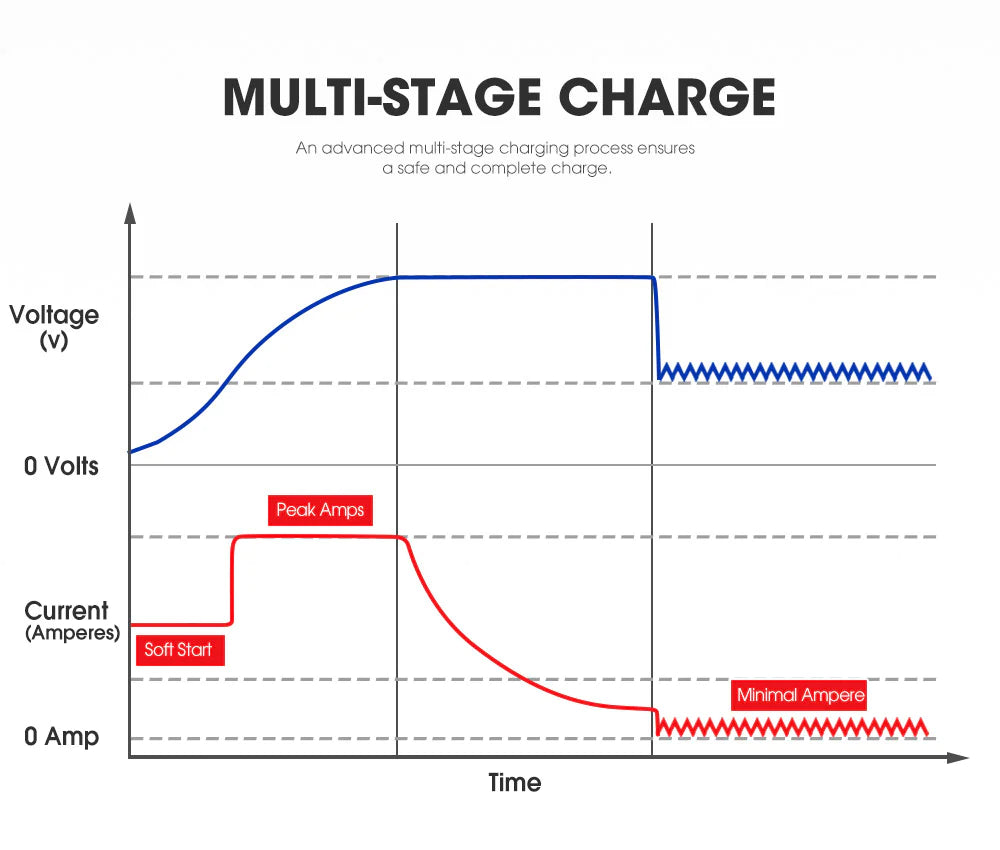

- Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge, and re-charge.
- Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, and LiFePO4 batteries.

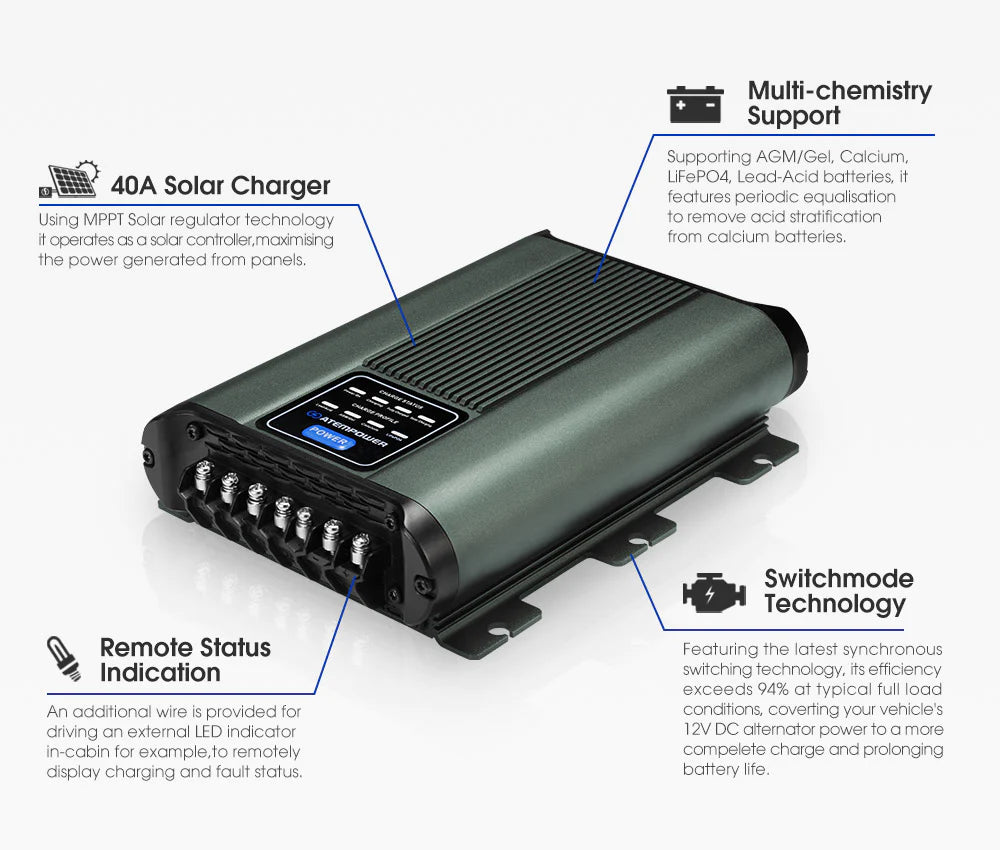

- Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel.

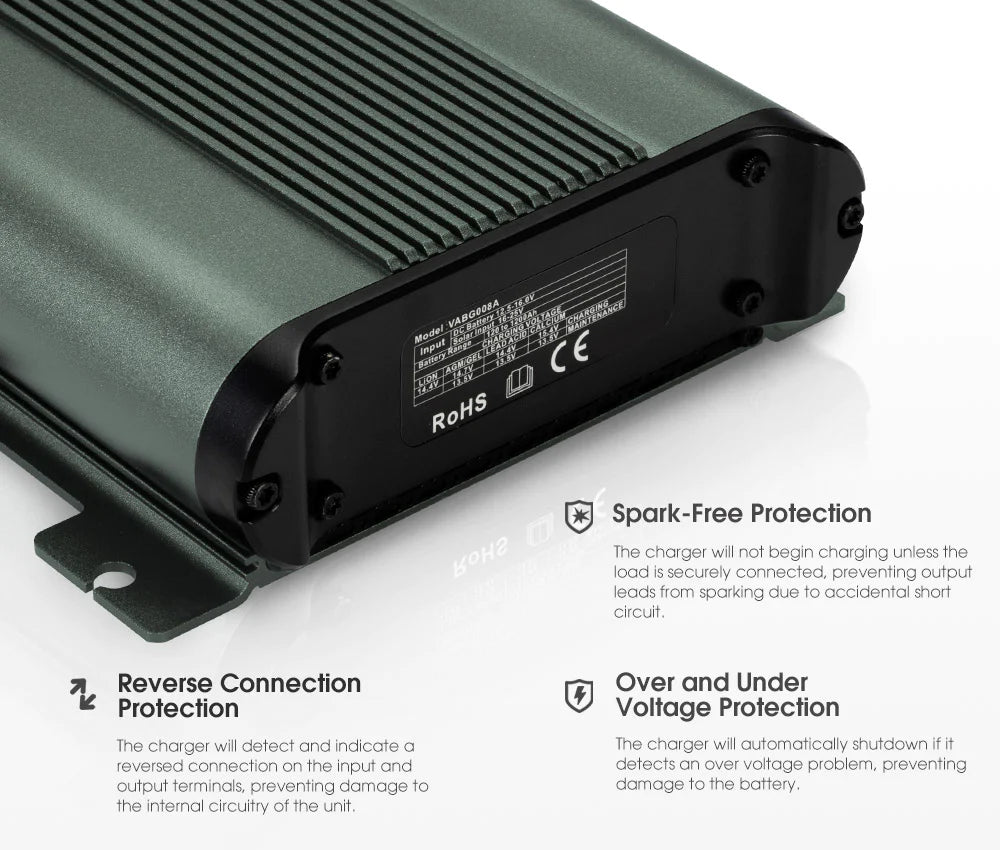

- Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, and input/output reverse polarity protection.
- Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolonging the lifespan of the charger.
- Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for long last durability.
- Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.

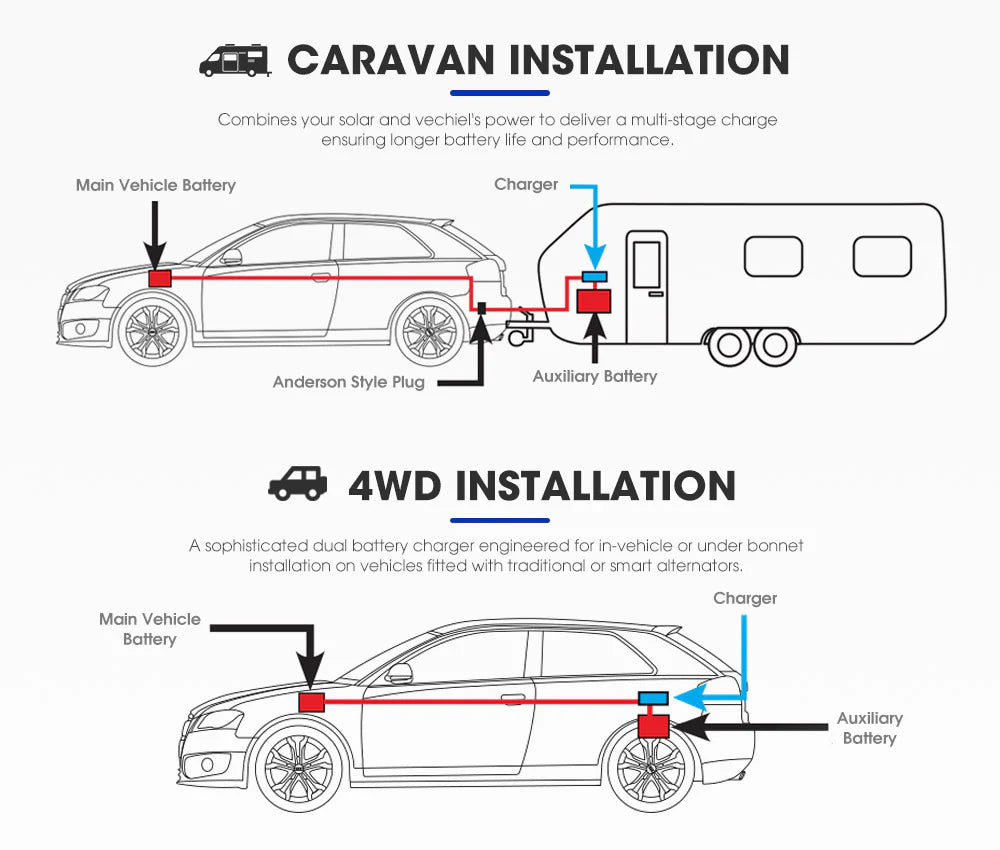

- Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut-off, which is suitable for modern vehicles, trailers, and caravans.

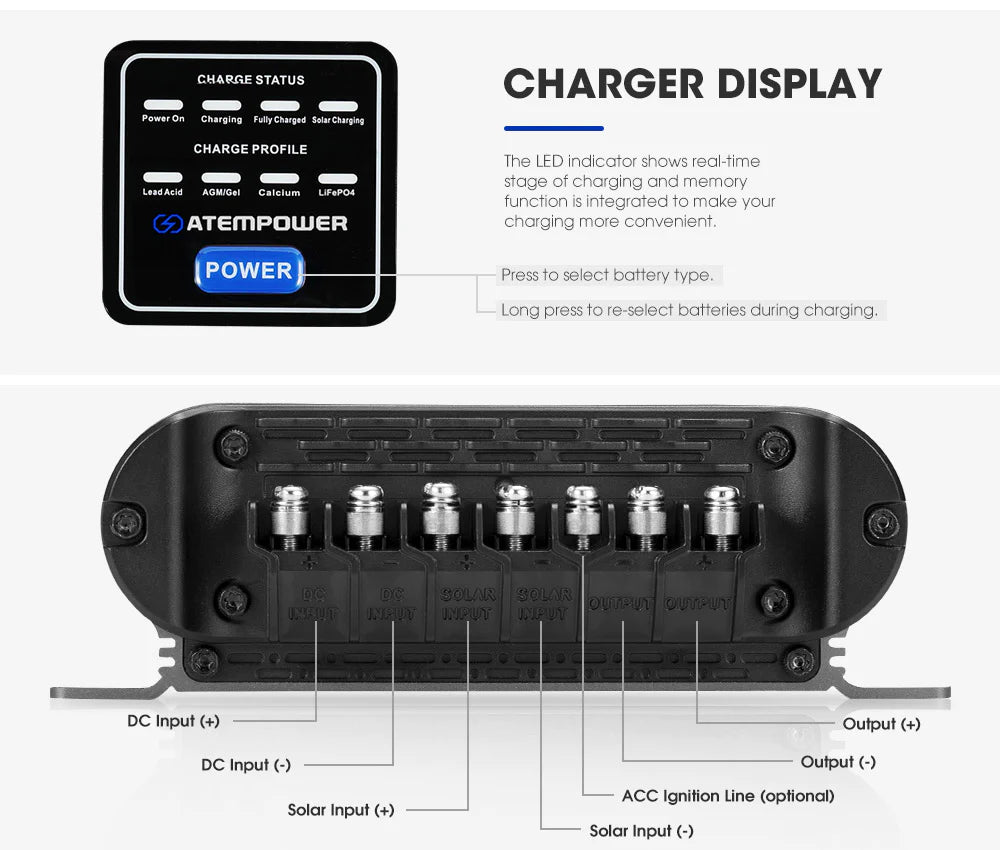

- User-Friendly Design: The LED indicator shows the real-time stage of charging and the memory function is integrated to make your charging more convenient.

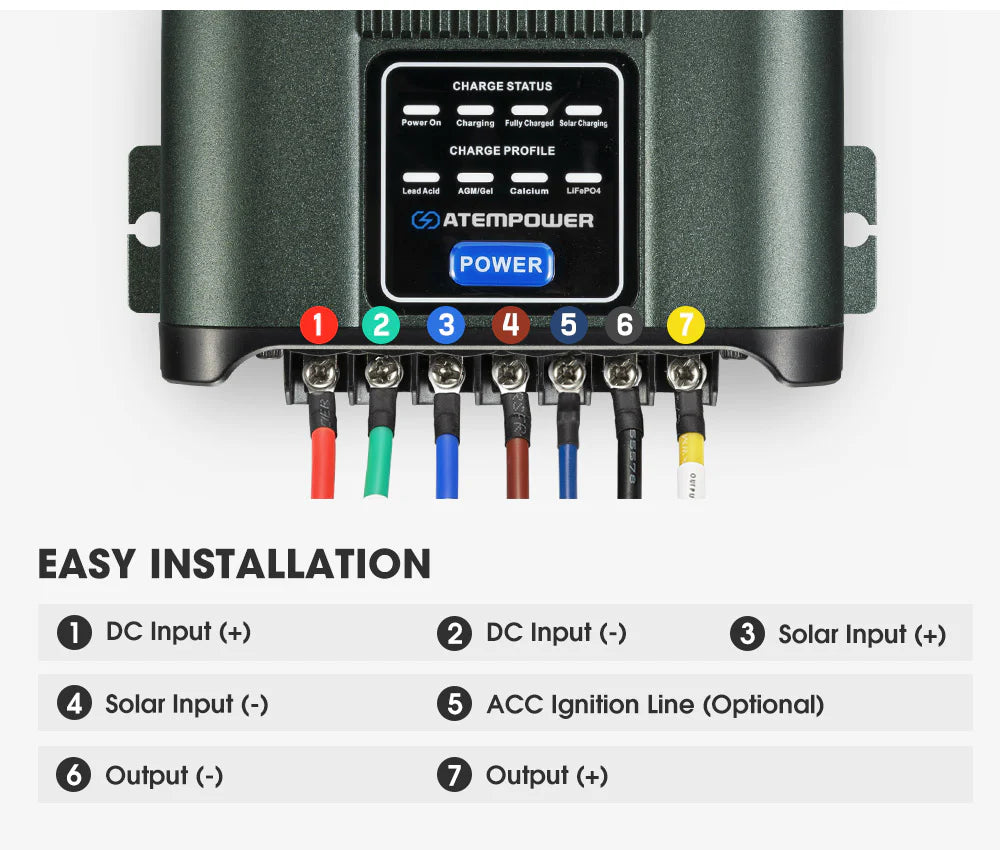

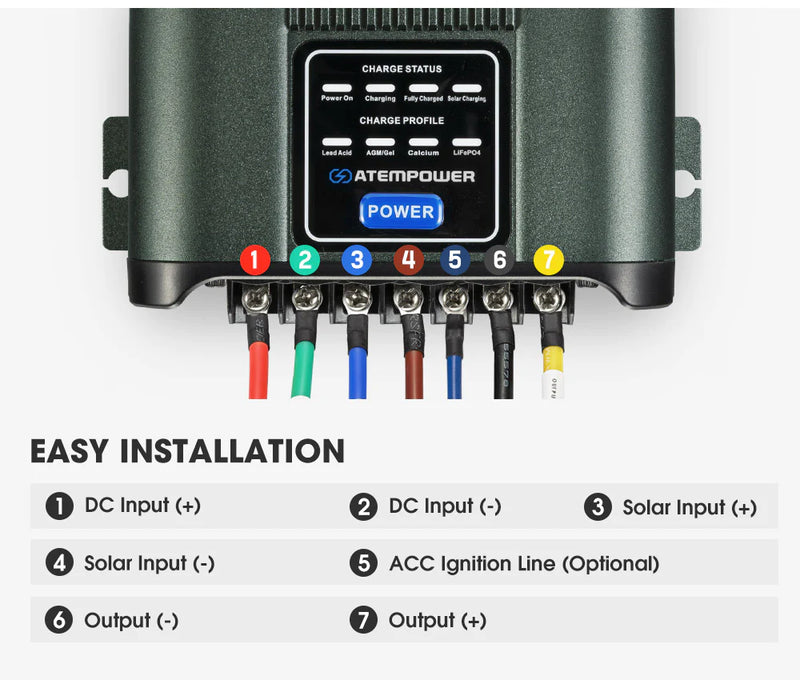

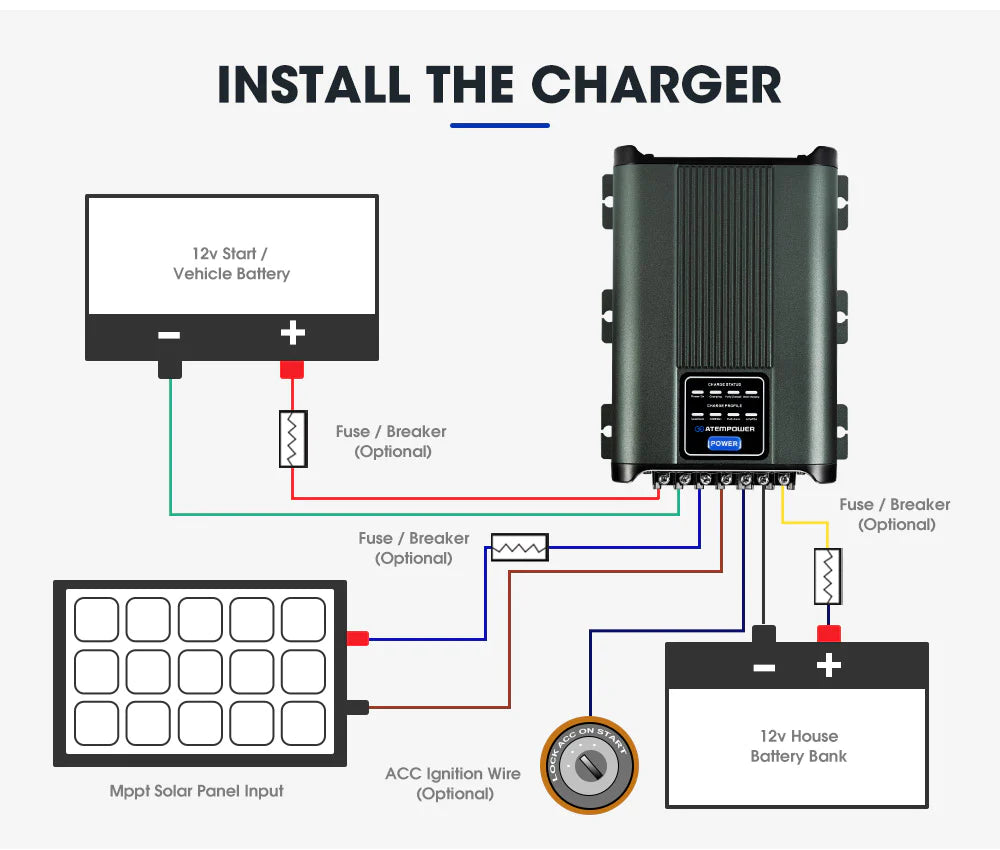

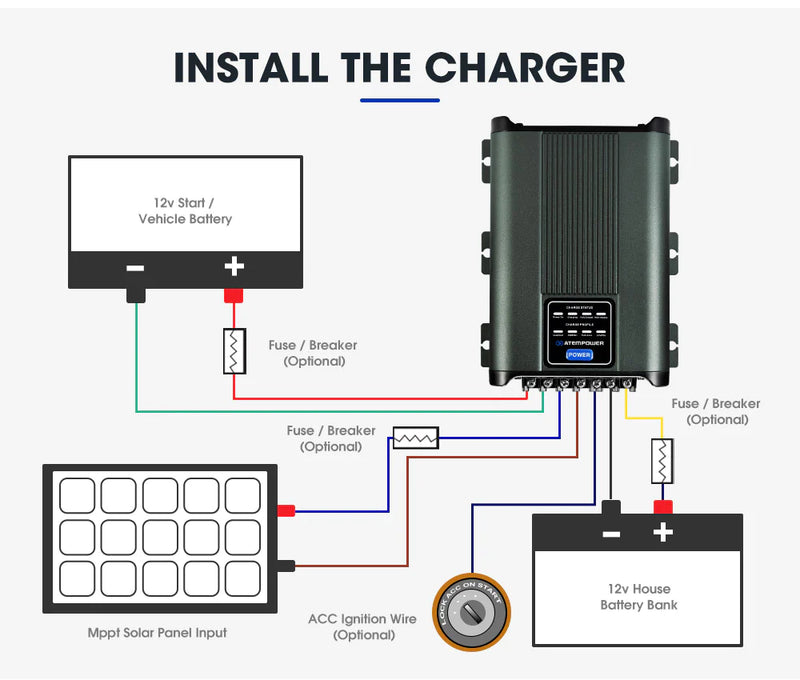

- Please note: always refer to the wiring diagram in this listing for the latest wiring setup of the product as the user manual might be for the previous version.
- Type: Multi-Stage
- Input: DC Battery: 12.5~16.0Volts
- Solar Input: 16.0-25.0 Volts
- Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
- Output Current: DC Output: 40A
- Solar Output: 40A
- Minimum Start Voltage: 2.5 Volts-For battery being charged
- Soft Start: Yes
- Soft Charge Current: 40A
- Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiFePO4)
- Absorption: Constant voltage with automatic amperage control
- Equalisation: Automatic
- Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
- Float Charge Current: 100mA
- Battery Range: 60 to 600Ah
- 0-1 Metres: 10AWG
- 1-5 Metres: 6 AWG
- 5 Metres+: 4 AWG
- Warranty: 1 Year Warranty

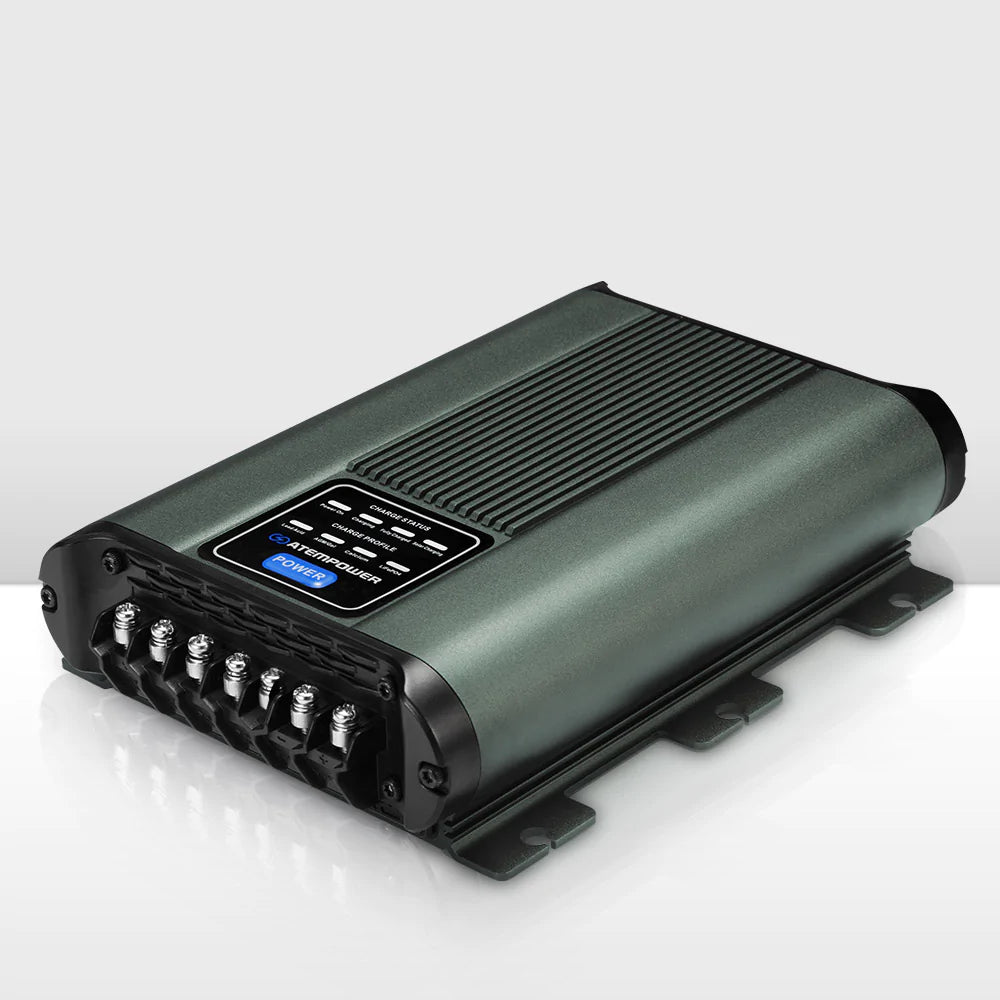

1x ATEM POWER 40A DC-DC Charger
SEE THE USER MANUAL HERE
