Thule 5200 Omnistor Side Mount RV Manual Awning 4.5M - Black Case

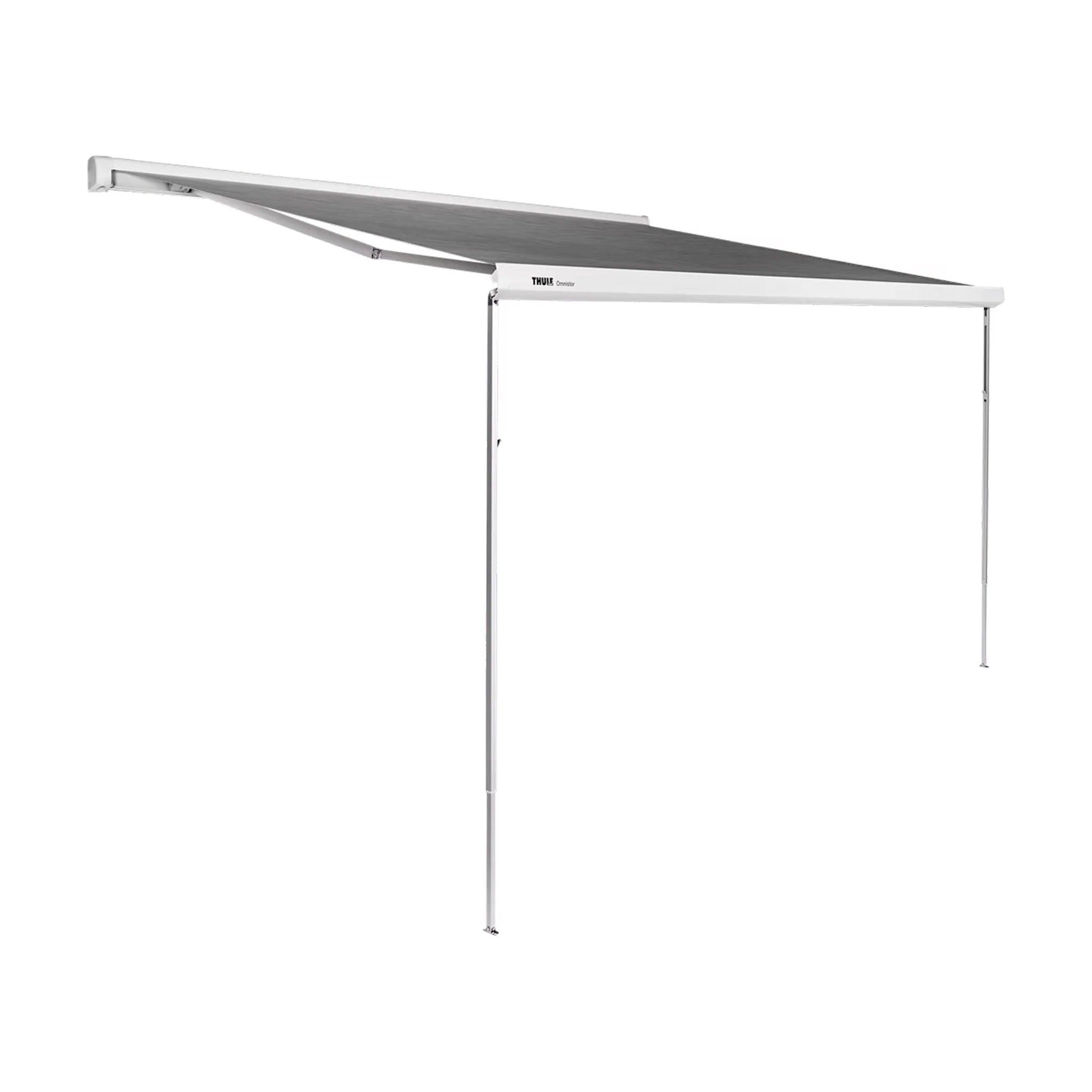

The Thule 5200 is a wall-mounted wind-out RV awning which is available in a range of lengths with projection from 1.4m to 2.5m. With a selection of cassette colours to match your vehicle and a range of clever features, it's perfect for vans, caravans and motorhomes.

Features:

• Best integrated on the vehicle sides
• Manual wind-out operation

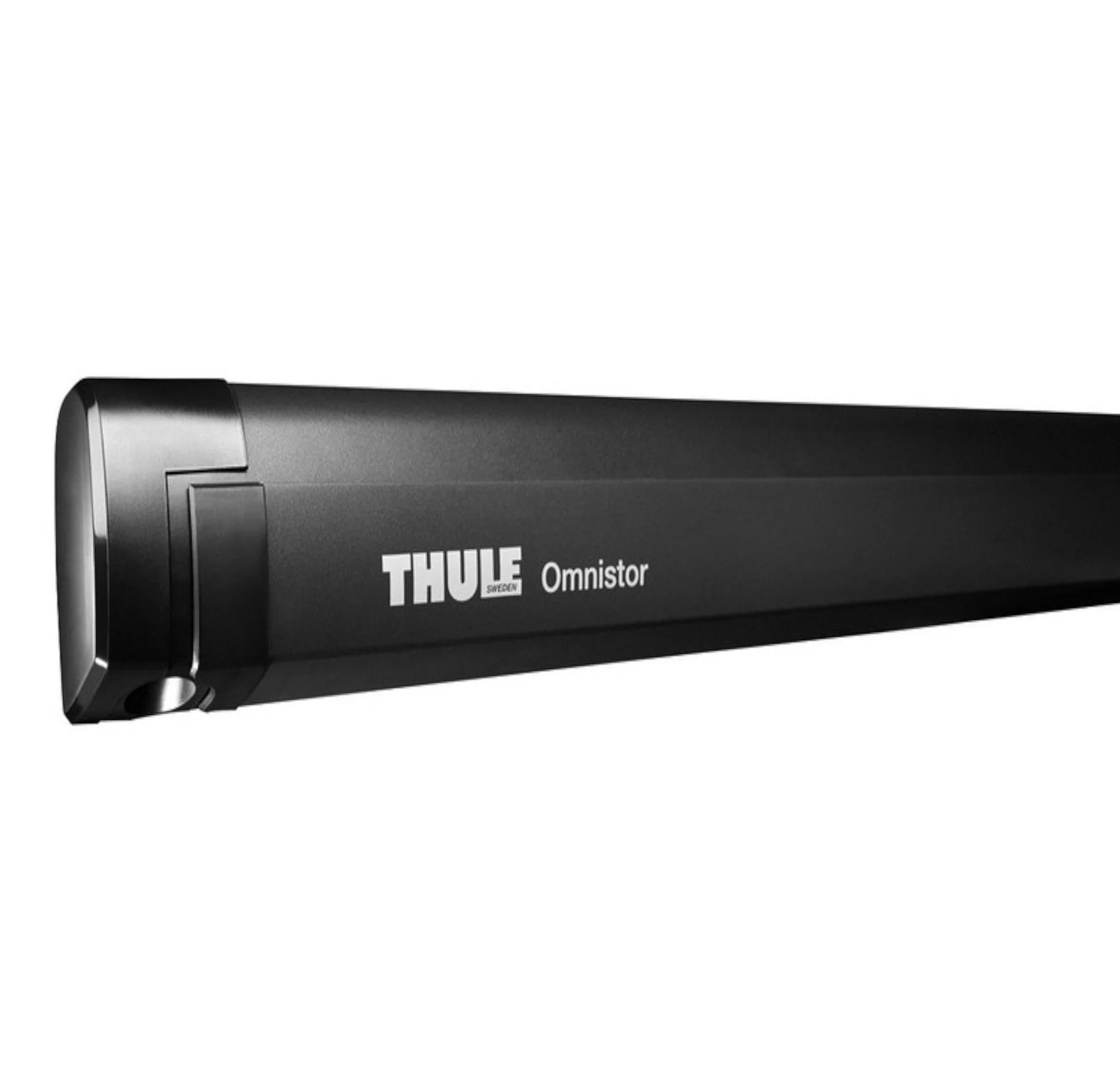

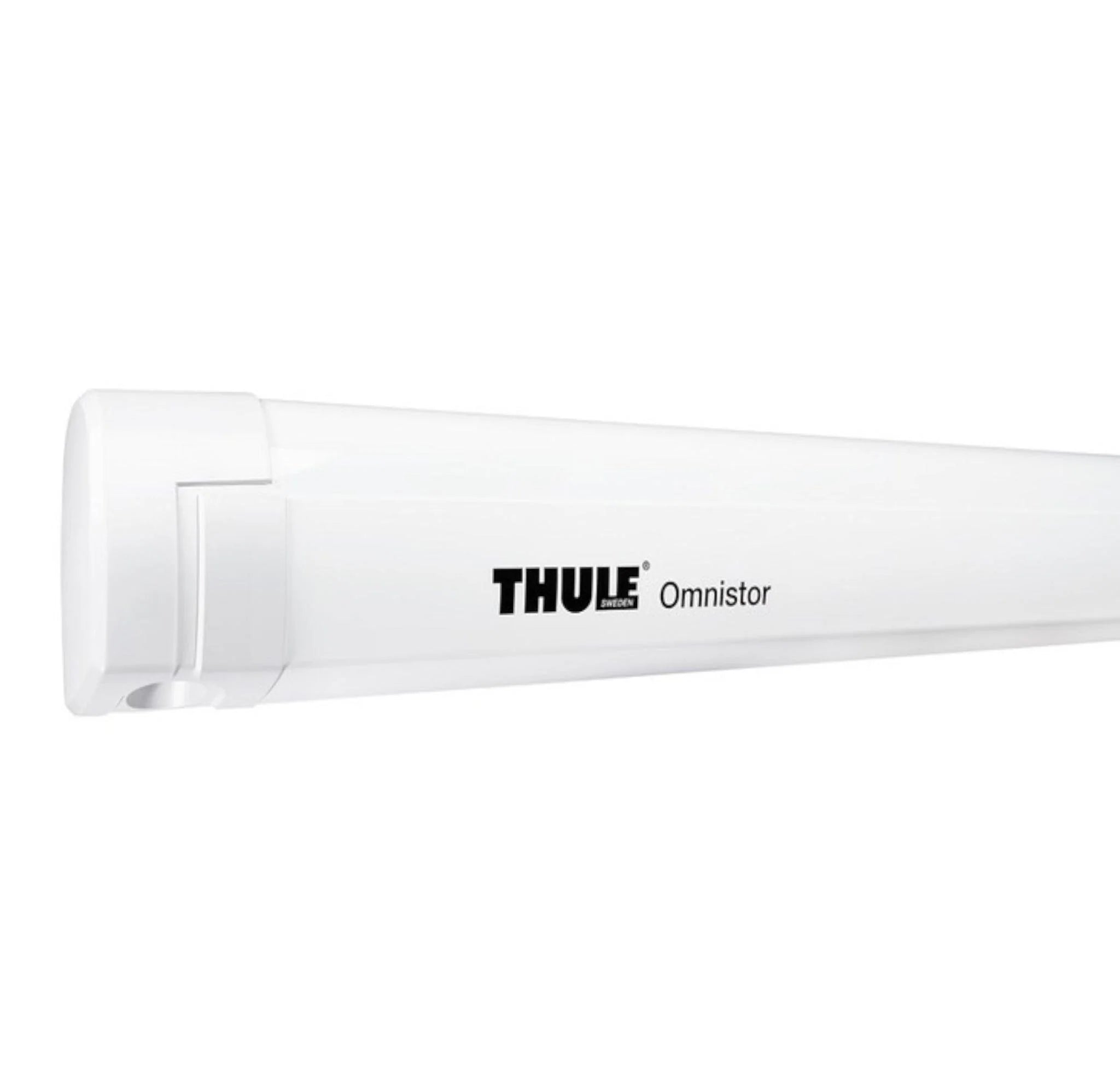

• Cassette is available in white or black
• Mystic Grey awning fabric colour
• Sturdy spring arms with patented tension arms (Standard inclusion for 5200 over 4.02m) ensure a perfectly tensioned awning fabric and increase the wind-resistance
• Projection up to 2.50m to increase space, protecting you from the elements
• Vertically lowering system to unfold support legs without danger of damaging the vehicle
• User-friendly Quick Lock system for easy setting and adjustment of the support legs
• By setting the angle as you please, the awning can be opened and closed even when the sliding door of your van is open
• The unique Thule cassette adjustment system means perfect closing of the awning even after years of usage
• Front profile with drainage system to dispose of water and waste which makes it easy to clean
• A motor can be easily retrofit installed afterwards on a manual Thule Omnistor 5200 awning
• This awning comes with standard flat mounting brackets

Specifications:

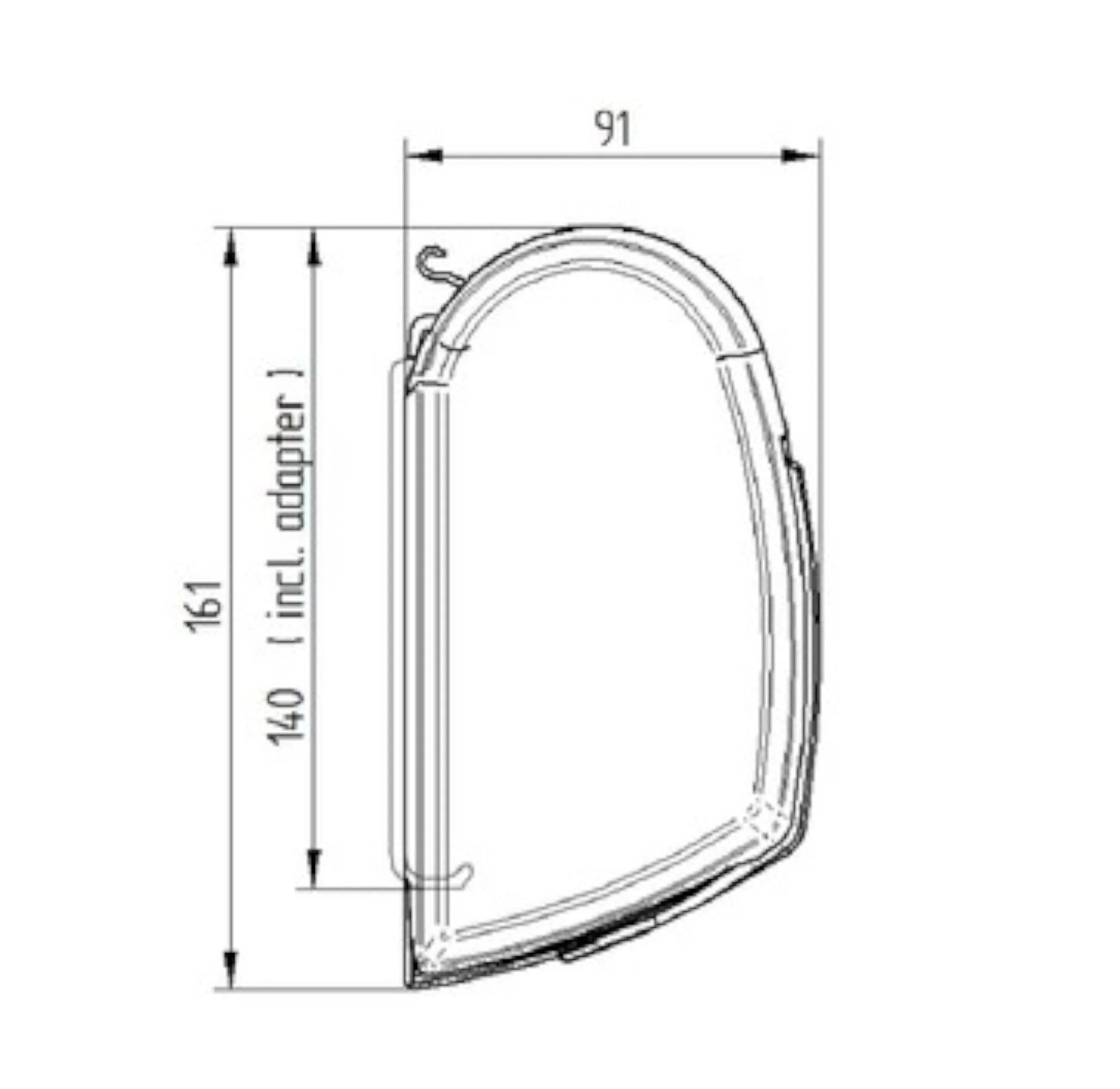

The awning size is the overall length of the cassette, the fabric is 180mm shorter than the cassette overall, so please take this into consideration when ordering your awning. Please contact us if you are unsure of what size would be suitable for your van/vehicle.

1.9m Length - Projection = 1.4m. Weight = 14.2kgs
2.3m Length - Projection = 1.8m. Weight = 17.0kgs
2.6m Length - Projection = 2.0m. Weight = 19.0kgs
3.0m Length - Projection = 2.5m. Weight = 22.6kgs
3.5m Length - Projection = 2.5m. Weight = 25.4kgs
4.0m Length - Projection = 2.5m. Weight = 28.0kgs
4.5m Length - Projection = 2.5m. Weight = 30.4kgs
5.0m Length - Projection = 2.5m. Weight = 32.1kgs

See user manual here
