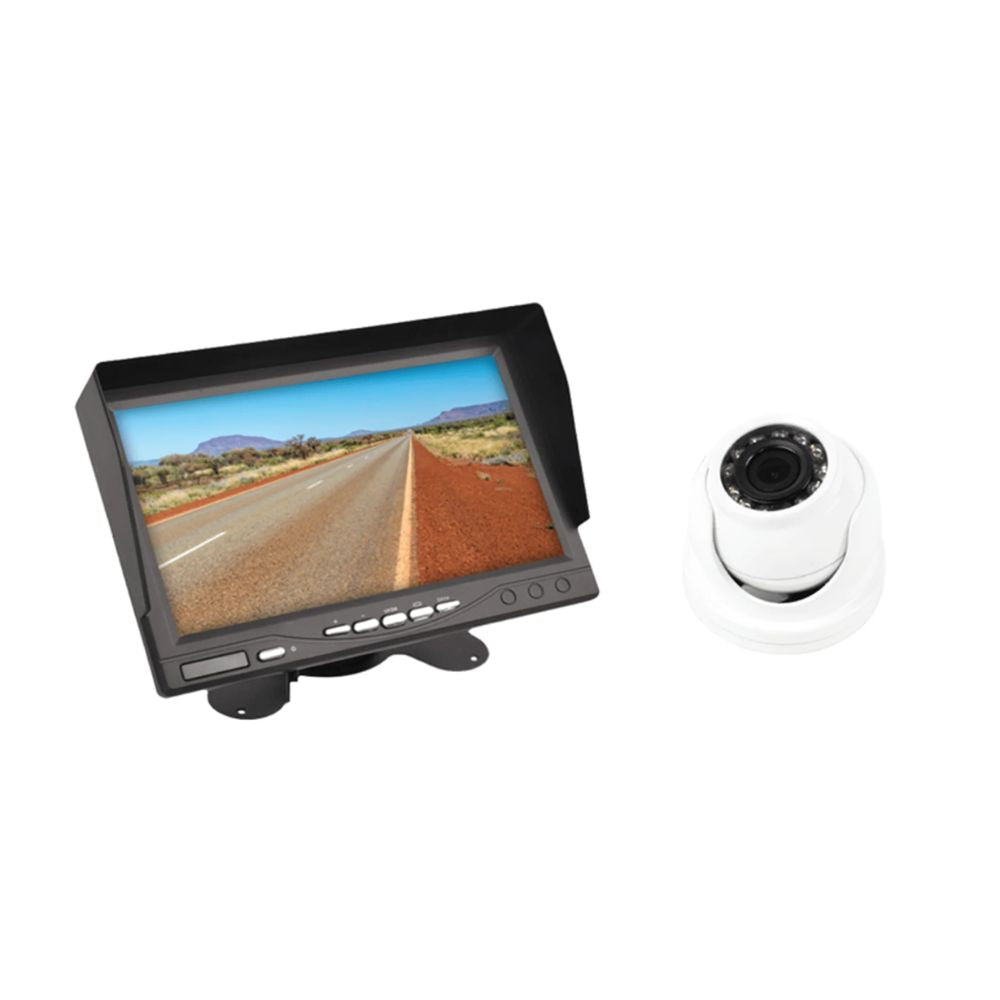

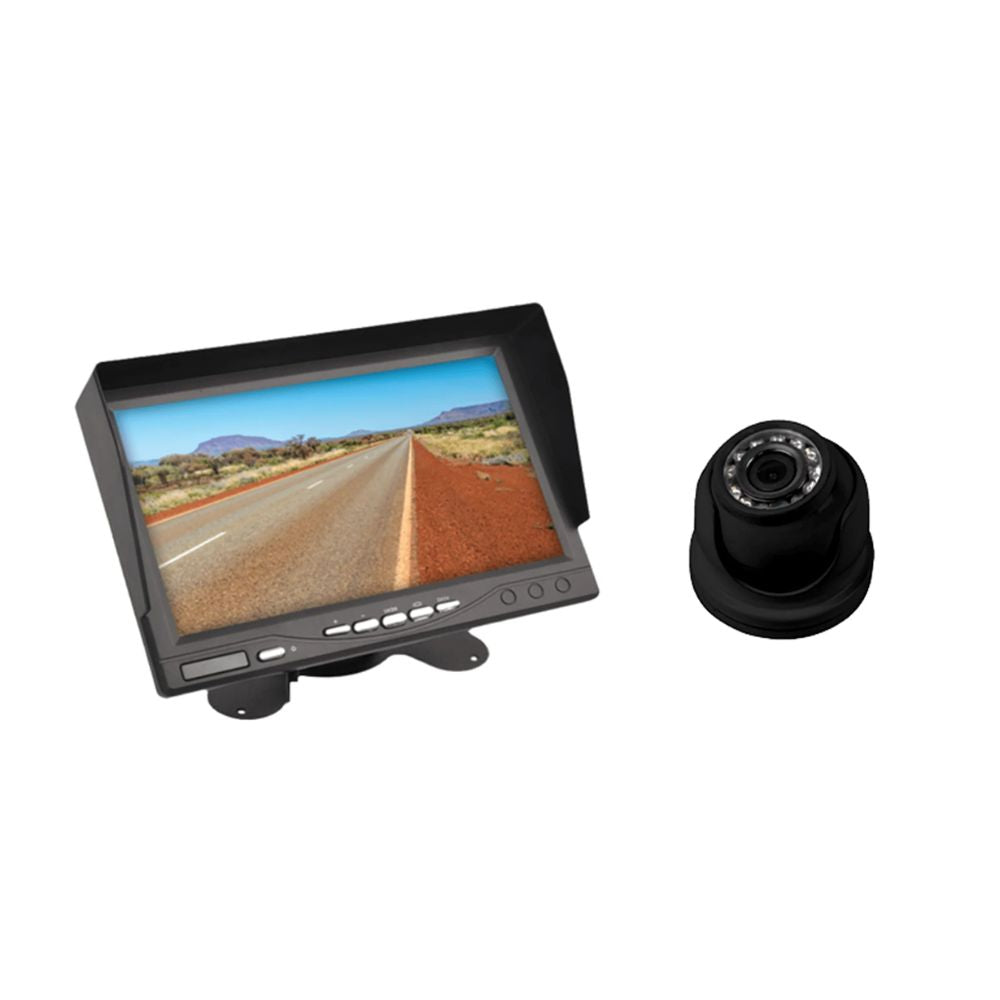

The Aussie Traveller Rear View Camera Kit is a must for your vehicle so that you can get a clear picture of what's behind you. The round eyeball style camera produces wide-angle, high-quality imagery for you to view on the 7-inch high-resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need to keep a close eye on your 4x4, Caravan, RV, Camper Trailer, or Motorhome.
Our Rear View Camera Kit is also available with a Square Camera.
Features:
- Waterproof IP67 rating
- 12V powered camera & LCD display monitor
- 5m coiled cable for connection between the tow vehicle and the towed vehicle
- Easy to install - The screen can be mounted onto the front windscreen or dashboard via the supplied suction mount
- The camera features extremely low current draw yet delivers excellent resolution
- Uses standard 50Hz frequency with 120degree lens angle
- Cables also allow for RV installation such as Campers and Motorhomes

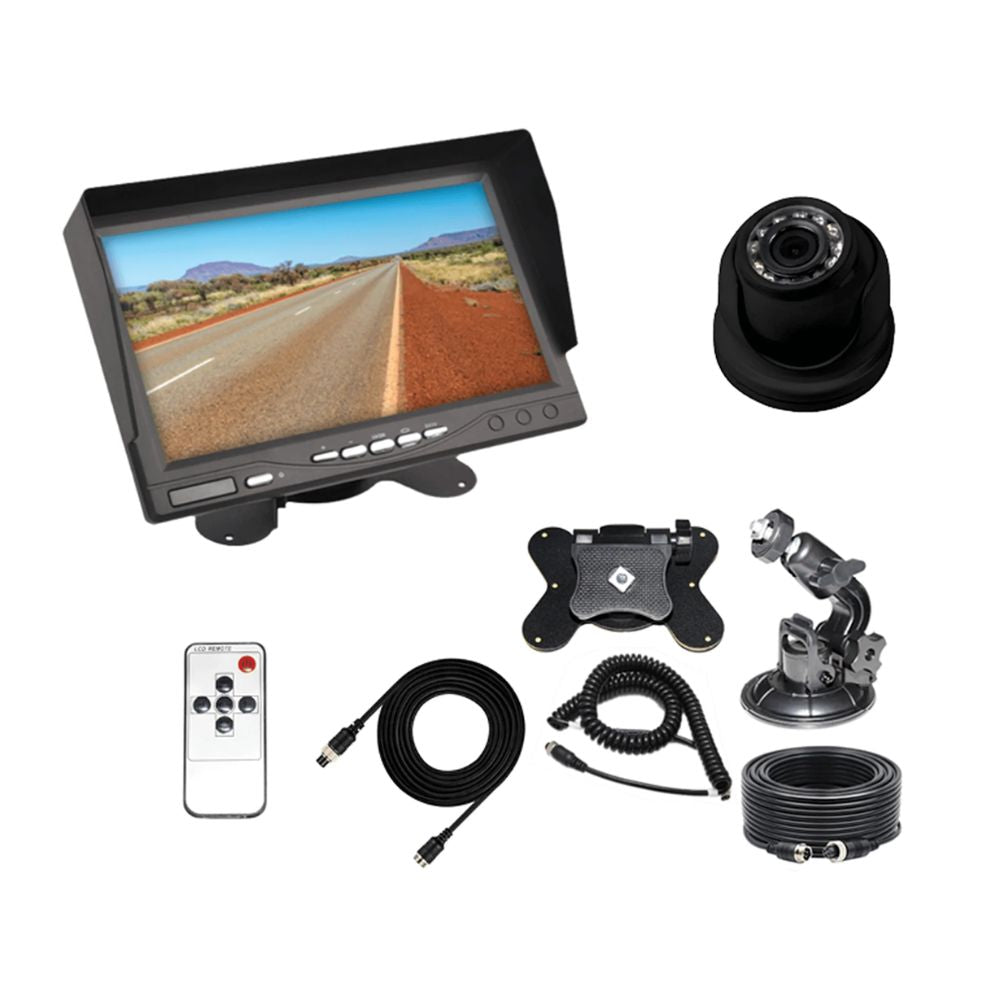

Kit Includes:
- 7” TFT LCD Monitor
- Window mount and fixed mount monitor brackets
- Remote control
- 15m towed vehicle cable
- 5m tow vehicle cable
- 5m coiled cable
- Installation manual
Specifications:
TFT LCD Monitor:
- Screen dimensions: 7 inch
- Resolution: 800 x 480 RGB
- System: PAL & NTSC auto switch
- Power: DC 12V
- Consumption: 3W
- Video: Two-way video input
- Rear View: The image can be changed Left & Right
- Operate Mode: Key button & Remote control
- Size: 180 x 120 x 50 (mm)
Camera:
- System: PAL/NTSC
- Effective Pixels: 648 x 488 pixels
- Sensing Area: 5.55um x 5.55um
- Scanning System: 2:1 interlace
- Sync System: Internal
- Resolution: 420 TV lines
- Horizontal Sync, Frequency: 15.625KHz / 15.73KHz
- Vertical Sync, Frequency: 50Hz / 60Hz
- Minimum illumination: 1.5lux/F1.2
- Video Output: 1.0VP-P.75Ohm
- Gamma Consumption: 0.45
- AGC: Auto
- S/N ratio: Better than 48Db
- White Balance: Auto
- Electronic Shutter: 1/60-1/15,000 Seconds
- BLC: Auto
- Current Consumption: 80Ma
- Power Supply: DC 12V
- Operating Temperature: -10°C~46°C RH95% MAX
- Storage Temperature: -30°C~60°C RH95% MAX
- Lens: 1.8mm F=2.0
- Lens Angle: 120°
- Waterproof Grade: IP67
SEE USER MANUAL HERE
