MONITOR ALL CONNECTIONS DIRECT TO BATTERY
The
BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 Power Management Systems, connecting directly to battery via the BC300 External Shunt. This enhances system behaviour with temperature monitoring of the battery for greater protection.
The addition of the BC300 to the BatteryPlus35 and J35 Power Management Systems allows high current loads and external charge sources.
The BC300 also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.
The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus. The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity. The shunt is rated for ±240A constant and 300A peak.
FEATURES:
- Wireless communication taking advantage of Bluetooth Low Energy technology
- Simple installation and pairing procedure for end user installation
- CommLink is powered by the BatteryPlus35/J35 CAN bus and requiring no additional wiring
- Battery properties monitored: Voltage Current (charge / discharge) Energy usage (Ah) Temperature
SPECIFICATIONS:Battery Monitoring
- Voltage Range: 8V to 16V
- Voltage Resolution: <20mV
- Current Resolution: <200mA
- Current Range: 240A continuous
- Overload Protection: ± 800A (100ms without damage)
- Temperature Range: -20°C to 70°C (battery terminal)
- Temperature Resolution: 3°C
- Capacity Range: 7 to 800Ah

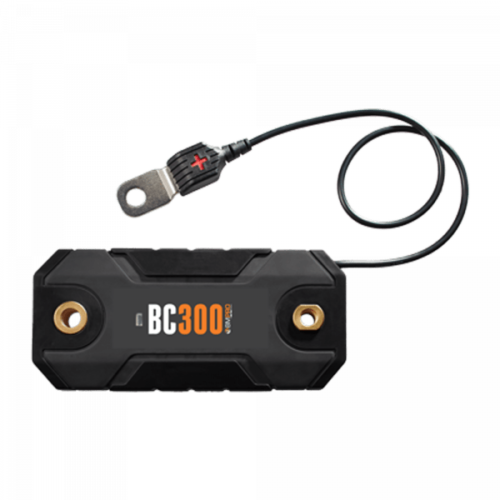

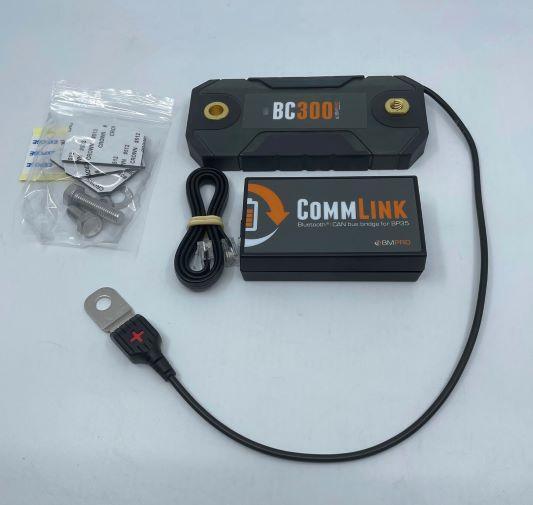

BC300 External Shunt
- Input Voltage: 8V to 16V
- Quiescent Current Drain (average): <10mV
- Operating Temperature: -20°C to 70°C
- Humidity Operating: ≤ 85% RH non-condensing
- Humidity Non-operating: ≤ 95% RH non-condensing
- Dimensions (Approx.): 140mm x 65mm x 18.6mm
- Weight (Approx.): 1kg
- IP Rating: IP54

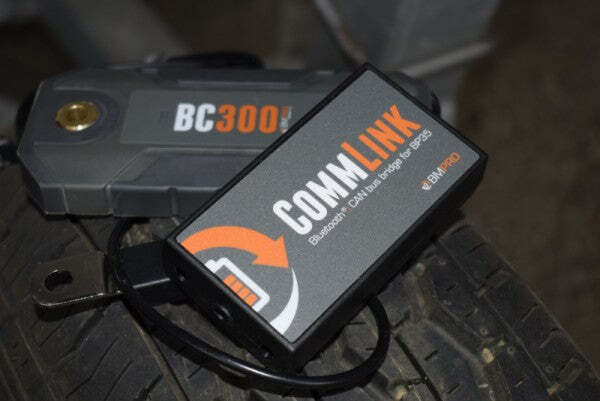

CommLink
- Input Voltage: 8V to 16V
- Quiescent Current Drain (average): <20mV
- Operating Temperature: -20°C to 70°C
- Humidity Operating: ≤ 85% RH non-condensing
- Humidity Non-operating: ≤ 95% RH non-condensing
- Dimensions (Approx.): 92mm x 52mm x 25mm
- Weight (Approx.): 150g
- IP Rating: IP304
