If you are a frequent traveller, you must know how critical it is to have a flexible power source with you. And this is where the ATEM POWER foldable solar panel comes into play.
Made from poly/cotton canvas, this 200W solar blanket can be packed down to 1/8 of its full size and weighs only 5.9kg, which makes it ideal for camping, RVing, and most outdoor activities. And all cables are terminated with Anderson plugs for an easy and secure connection. A-grade monocrystalline solar cells feature an energy conversion efficiency of 23.5% for efficient power output when your electronic device drains. This solar blanket features an auto-optimization function for immediate reconnection when sunlight returns after charging interruption and comes with a lithium-compatible MPPT controller which can adjust the voltage to get a boost of current during times of peak demand and helps you get 20% more energy than a PWM controller. With ATEM POWER, you are fully equipped to rediscover the fun of off-road.
Features
- Monocrystalline Solar Cell: A-Grade monocrystalline solar cells feature the fastest charging speed possible with an energy conversion efficiency of up to 23.5%.
- Premium PET Films: These films feature a light penetration rate of 95%, which can greatly increase the energy conversion efficiency of this ATEM POWER solar panel.
- Superior Portability: Made from poly/cotton canvas, this super thin foldable solar panel is only 5.9kg and can be packed down to 1/8 of its full size.
- User-Friendly Design: This ATEM POWER portable solar panel is designed with 8 stitched loops which are quite handy if you make up hooks when it gets windy.
- Plug & Play Connection: All cables are terminated with an Anderson plug for an easy and secure connection.
- Hassle-Free Reconnecting: The auto-optimization function achieves immediate reconnection when sunlight returns after charging interruption.
- Upgraded Controller: This solar blanket comes with a lithium-compatible MPPT controller which helps get 20% more energy than a PWM controller.
- Ultimate Protection: The overcharging cut-off technology ensures the ultra-reliable performance of this solar blanket.

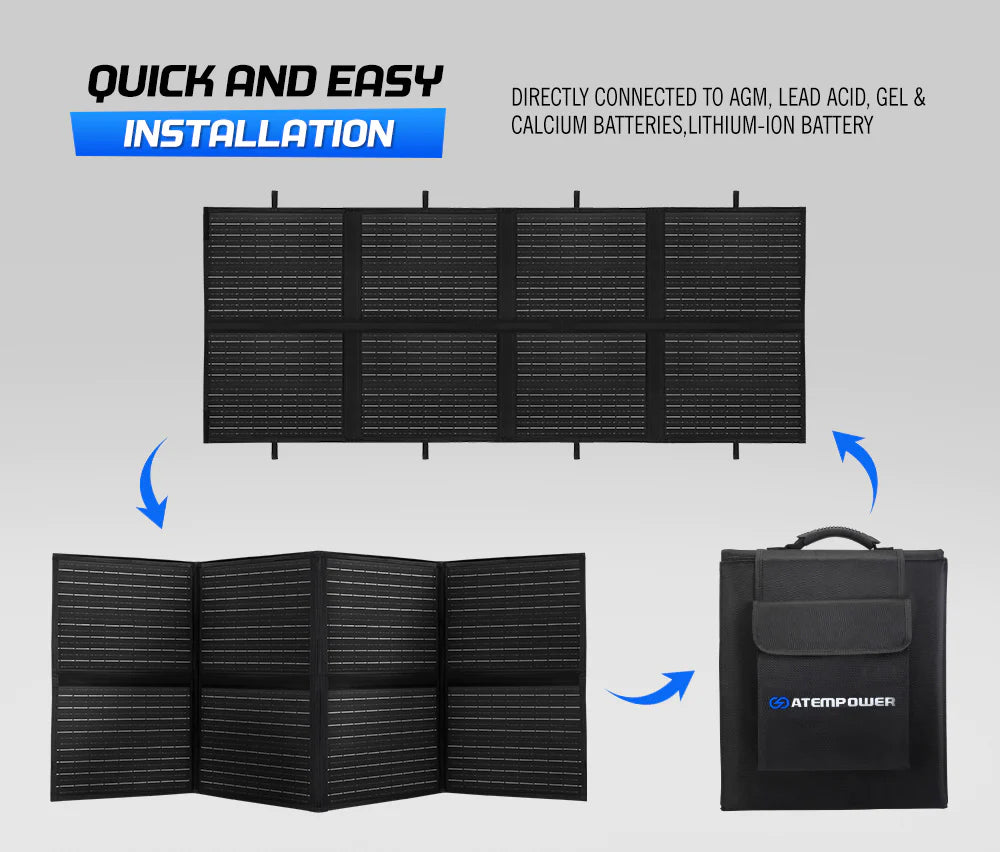

- Lithium Compatibility: Ideal for camping, caravanning, and RVing, this solar blanket can be connected to AGM, lead acid, Gel, Calcium & LiFePO4 batteries.
- Multiple Functionality: The controller features a USB port to charge portable devices directly, including smartphones, tablets, digital cameras, etc.
Specifications:
Material: A-Grade Monocrystalline
Color: Black

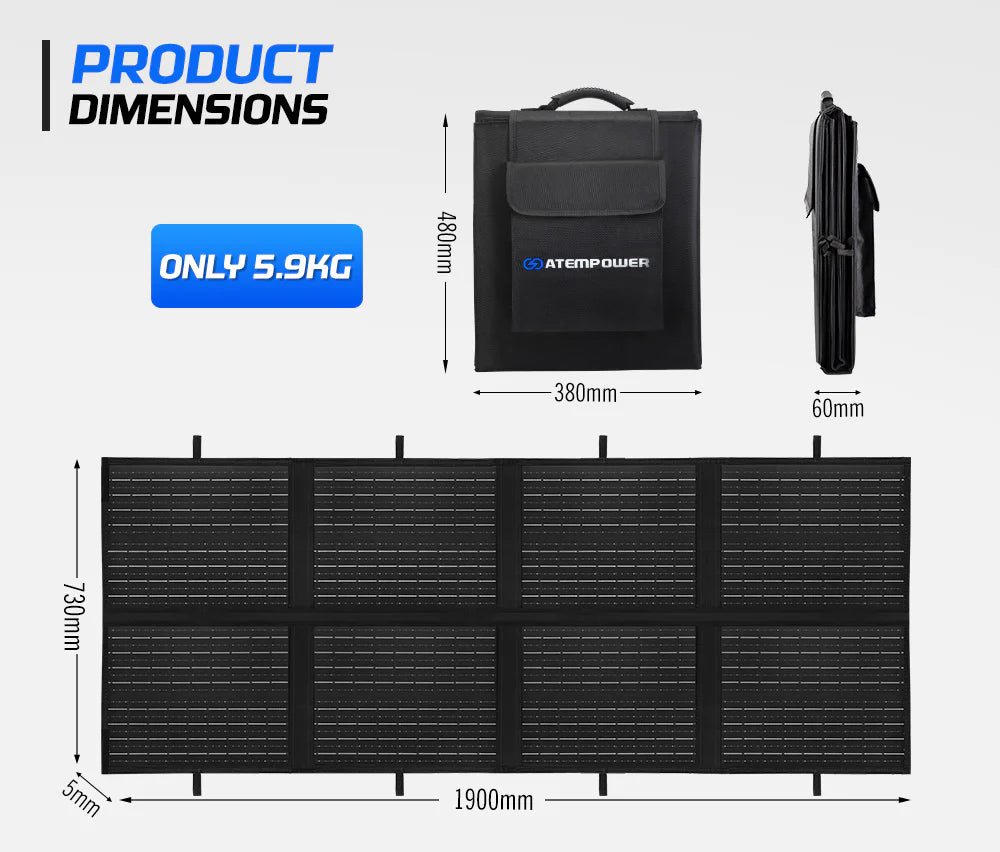

Product Dimension(Opened): 1895x740x3mm
Product Dimension (Closed): 475x370x60mm
Gross Weight: 7.7kg
Maximum Power: 200w
Open Circuit Voltage (VOC): 22.5V
Open Circuit Voltage (VOC): 12.05A
Voltage at Pmax (VMP): 18.3V
Current at Pmax (IMP): 10.93A
Temperature Range: -40°C (-40℉) ~ +85°C (185℉)
Warranty: 1 Year Warranty
Controller
Rated Charge Current: 20A
Rated Discharge Current: 20A
Rated Voltage: 12V/24V Auto Work
MPPT Efficiency(Max): 99%
Over Load, Short Circuit Protection: ≥1.5 Rated Current
No Load Current: ＜10mA
Over Voltage Protection: 16V; x2/24V
Voltage of Stop Charging: 14.7V; x2/24V
Discharge Recovery Voltage: 11.5V; x2/24V
Over Discharge Voltage: 10.5V; x2/24V
USB Output: 5V 1A
Working Temperature: -31℉ (-35℃) ~ +131℉ (+55℃)
Package Includes

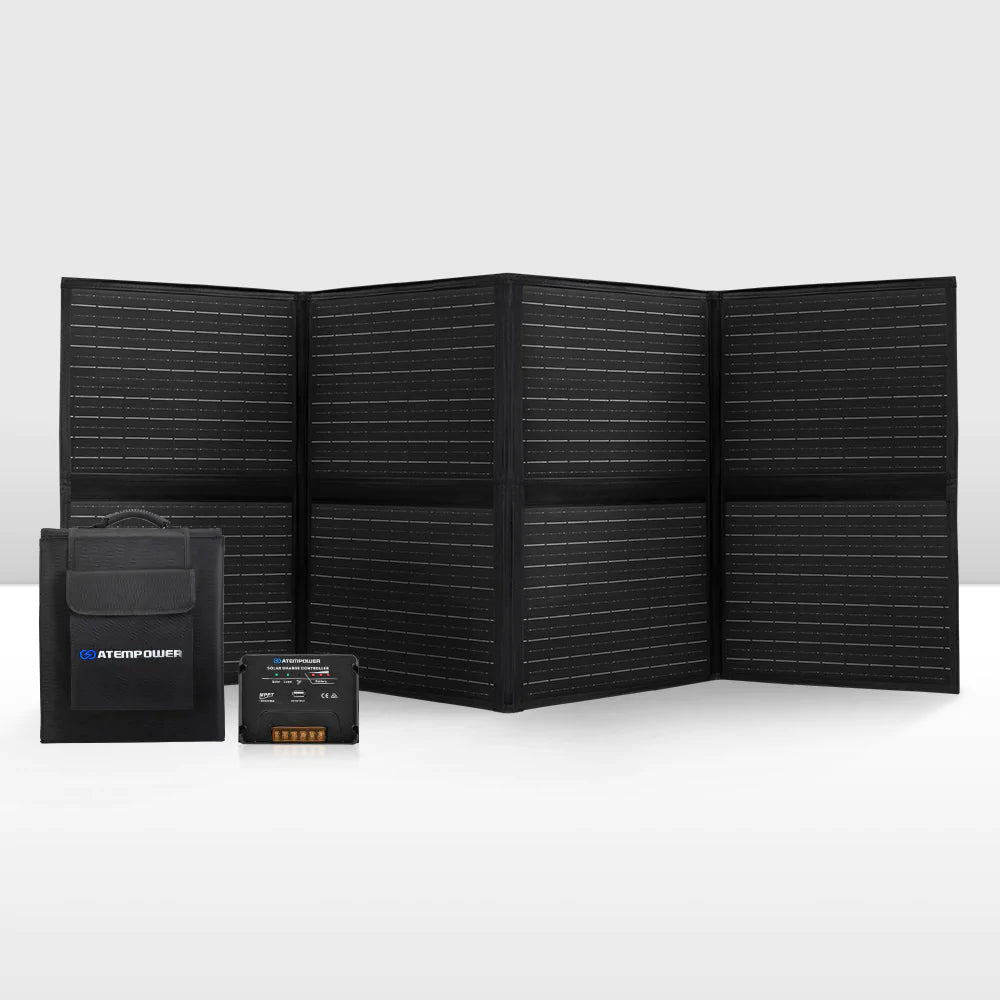

1 x Atem Power 200W Monocrystalline Folding Solar Blanket

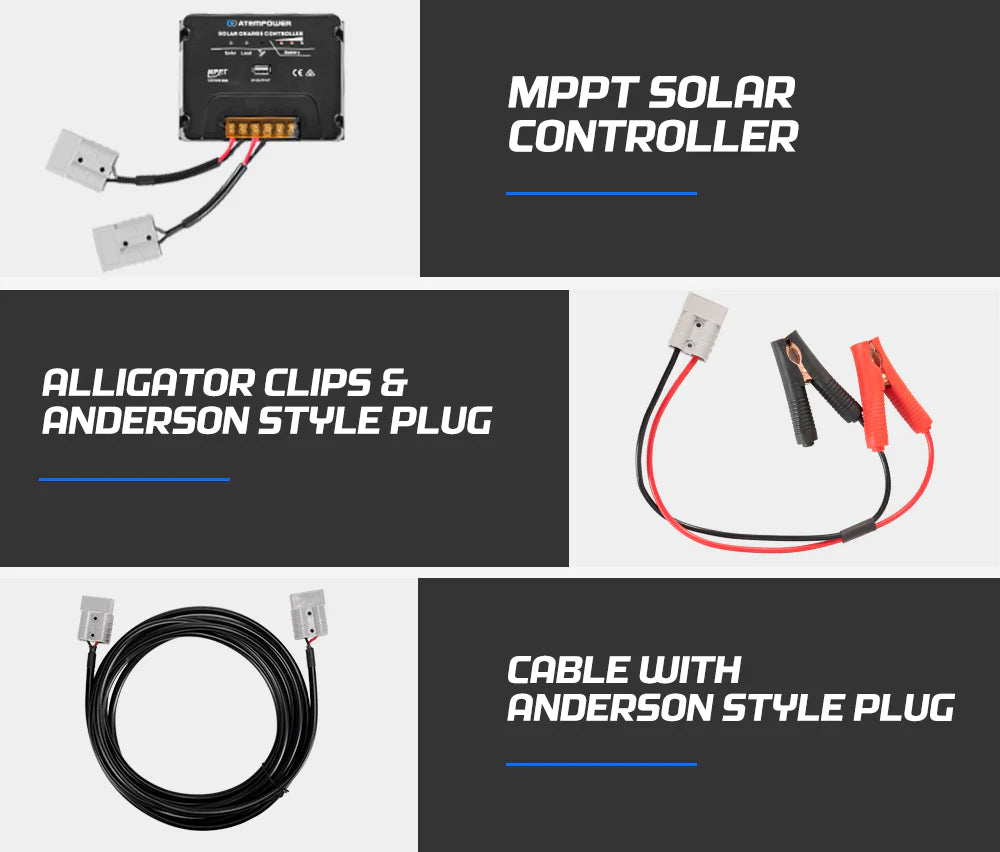

1 x MPPT Solar Controller
1 x 450cm Extension Cable with 50A Anderson Plugs
1 x 50cm Cable with Alligator Clips
1 x User Manual
